Atlas I8SC Specifications

INFORMACAST ® IP COMPLIANT LOUDSPEAKER SYSTEM
WITH CLOCK POWERED BY CISCO POE NETWORK SWITCHES
12:00

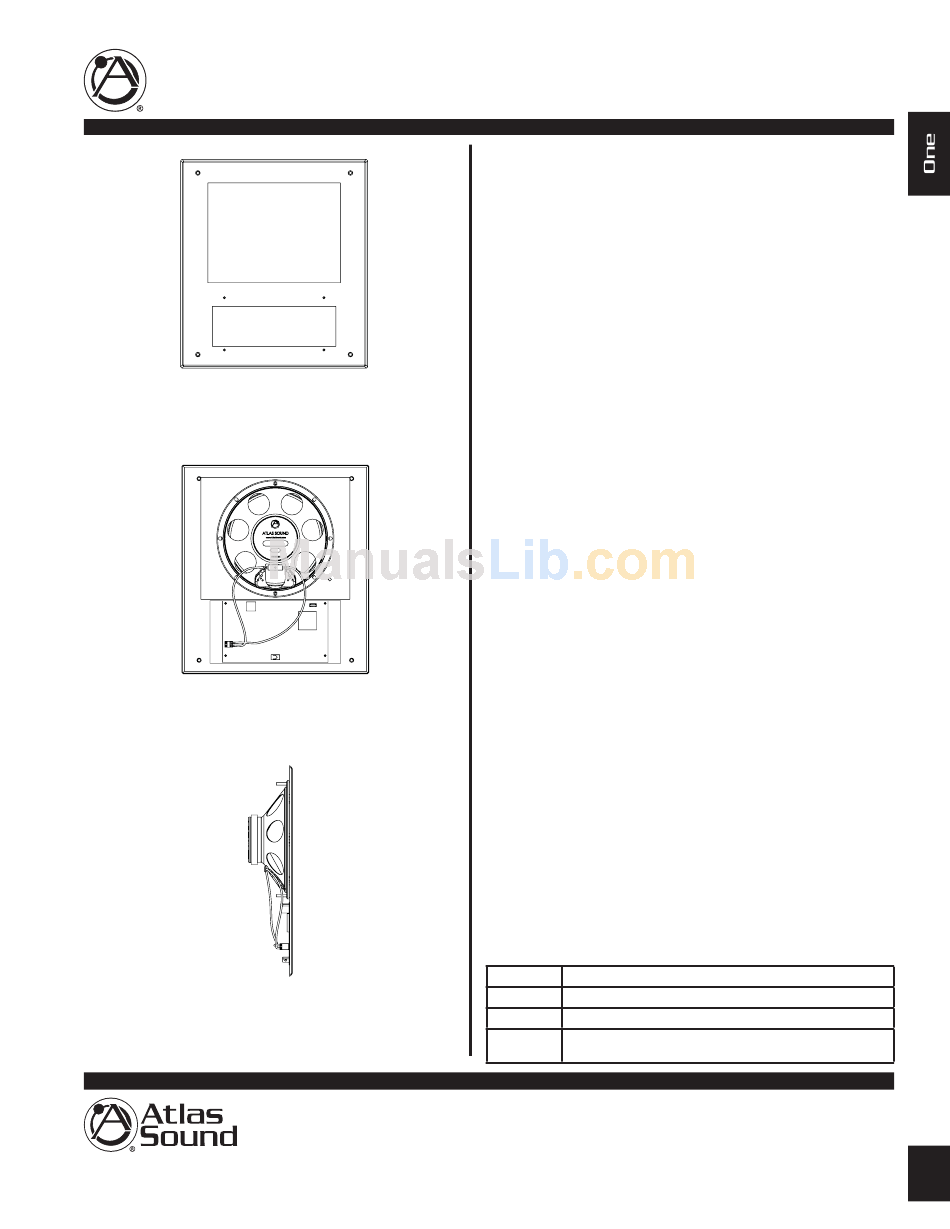

I8SC
(Front View)
I8SC
(Back View)
I8SC
(Side View)
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
© 2006 Atlas Sound LP

FEATURES

• Use with Berbee InformaCast
& Cisco
messaging systems
• Highly efficient 10oz dual cone loudspeaker system provides 94dB
average SPL @ 1W/1M and is capable of 103dB @ 1 meter via the
rated power of the internal IP addressable amplifier
• 105˚ dispersion in the 2kHz octave band (-6dB)
• Wide frequency response of 86Hz to 8kHz (-3dB) is perfect for speech
and general messaging playback
• Network controlled, high visibility red LED clock

APPLICATIONS

The perfect choice for education, military/government and large scale
corporate applications, Berbee's InformaCast IP Broadcasting Solution
revolutionizes communication, clock/bell and message playback
functionality. It provides the capability to simultaneously send a multicast
audio stream and text messages to any combination of Cisco IP phones,
Atlas Sound IP speakers, and PCs. With the push of a single button on
the phone or a single click from a PC, a user can send a live, recorded
or scheduled broadcast to one or more paging groups. With InformaCast
compliant loudspeaker products from Atlas Sound, system designers
and integrators will have the ability to deploy extremely large scale and
complex paging systems over new or existing Cisco networks with the
convenience of centralized administration by IT personnel.
Extreme cost savings can also be realized from the elimination of separate
"stand alone" paging & clock/bell systems when InformaCast is utilized in
education applications in conjunction with the model I8SC clock speaker
baffle system.

GENERAL DESCRIPTION

Model I8SC from Atlas Sound consists of a factory assembled loudspeaker/
baffle/digital clock with PCB amp/control board securely mounted to the
rear of the baffle via concealed weld studs. The amp/control board is
capable of producing 9 Watts RMS into the 8 Ohm loudspeaker with 9VDC
minimum power provided by Cisco IEEE 802.3AF compliant POE switches,
(local 12-18VDC PSU's may also be used instead of POE switches).
Interconnect is via a board mounted female RJ-45 connector. The clock
display is a brilliant red 5 element device capable of creating 2.75" (70mm)
high x 1.25" (32mm) wide clock numbers. The industry standard C10A
loudspeaker used in the I8SC is a dual cone 8" (205mm) loudspeaker with
a 10oz (260g) ceramic magnet. It includes a curve-linear paper cone for
lower harmonic distortion. The loudspeaker is also equipped with a full 1"
(25mm) diameter copper voice coil with aluminum former for better heat
dissipation. The 18 gauge construction of the metal baffle provides security
and durability in commercial applications. A perforated 22 gauge metal
screen is provided over the loudspeaker to maximize performance by
allowing the optimum percentage of open area forward of the loudspeaker.
The baffle is finished in neutral white electrostatic powder coat and is
packaged with all necessary mounting screws.

ENCLOSURE IS NOT INCLUDED. Available optional enclosures:

MODEL
SEA-I8SC
SEST-I8SC
FEST-I8SC
Specifications subject to change without notice
Printed in U.S.A.
®
software, Cisco
®
IP Telephones to create extremely versatile paging and
DESCRIPTION
Surface mount, angled enclosure for I8SC, neutral white finish
Surface mount, straight enclosure for I8SC, neutral white finish
Flush mount, straight enclosure for I8SC, reclaimed powder coat
finish
AtlasSound.com
00506 ATS002370 RevA 5/06
I8SC
®
POE networks
51
SL1-2085
