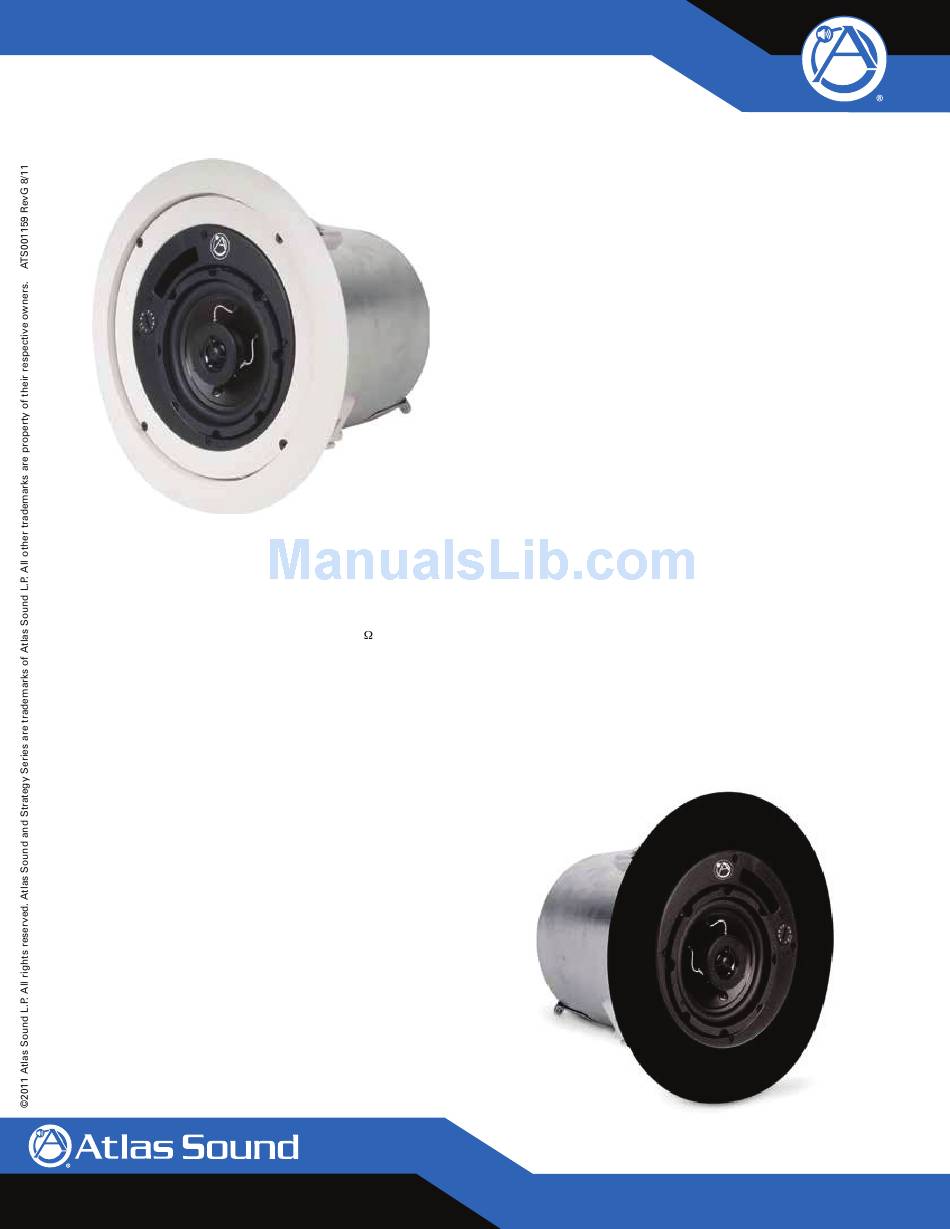

FAP42T(B)
®
II 4" Loudspeaker System

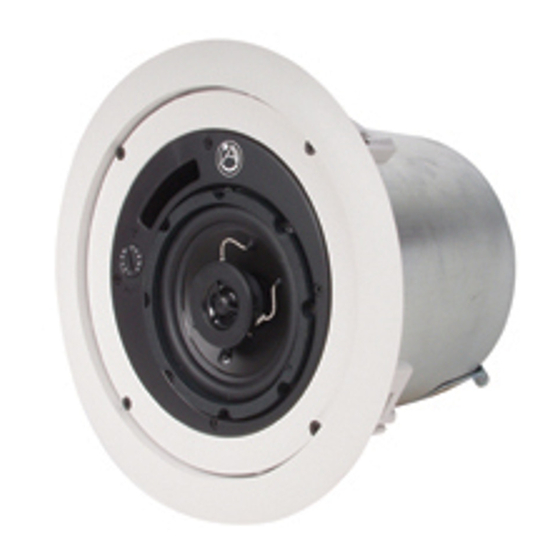

FAP42T
4" (102mm)
25 Watts
1, 2, 4, 8, & 16 Watts & 8
Bypass
88dB Average
75Hz – 20kHz (±7dB)
10oz (364g)
9" (229mm)
8
7
⁄
" (225mm)
8
10
1
⁄
" (267mm)
2
4" Poly Cone with Butyl Rubber Surround
Coaxially Mounted PEI Dome Tweeter
Features
•
Extended low frequency response from the 285 in
and ported deep drawn, galvanized steel enclosure
•
Easy installation in drop tile or sheetrock ceilings via C-Ring / V-Rail
tile bridge and "Dog Leg" mounting system (Included)
•
Front mounted tap selector switch for easy system tuning adjust-
ments includes transformer bypass setting for 8Ω / direct coupled
operation
•
Unique "trap door" input section allows for through conduit runs with
rigid or flex conduit
•
4 Pole detachable Phoenix style / Euro connector allows easy pre-
wiring and is convenient for daisy chaining additional Strategy Series
full range speakers or subwoofers
•
"Press fit" grilles blend better into contemporary architecture
•
Enhanced quality 70.7V / 100V internal transformers minimize inser-
tion loss and maintan low frequency response while providing
increased output for higher SPL applications
•
Also Available in Black FAP42T-B
•
UL 1480 Listed
Applications
FAP42T combines superior coaxial loudspeaker performance with
wide dispersion and easy installation. A low profile enclosure and wide
coverage make the FAP42T a perfect choice for low ceilings. The FAP42T
will satisfy the needs of owners, architects, contractors, and consultants
by delivering true, high fidelity sound reproduction in an attractive and
easy-to-install system. The FAP42T is ideal for high-intelligibility voice,
music, and signal reproduction in commercial, industrial, and institutional
applications.
AtlasSound.com
3
optimally tuned
FAP42T-B
1/4
