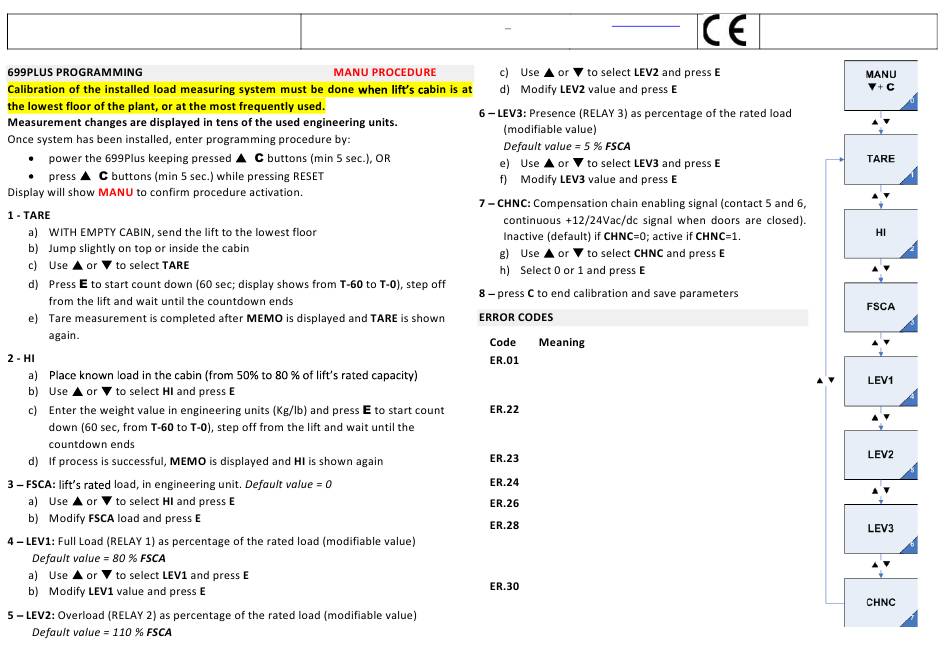

S2Tech 699PLUS Instruction Manual page 2

LoadSentry
Instruction Manual
Digital load measuring system
+
S2Tech srl
MANU Via Imperia, 28 Milano ITALY
Tel: +39 02 8910142 - Fax: + 39 02 89124848
+
e-mail: info@s2tech.it
www.s2tech.it
Negative Load: ER01 indication is displayed alternatively to
the measured load (the minus sign is displayed only up to
three numbers, i.e. -999). Check connections and
recalibrate.
Conversion slope not correct: too high signal from 942
Strain Link (fix 942 to a more rigid part of the lift frame or
substitute it). Verify that HI value is entered with the right
resolution (use weight at least 80% FSCA).
HI value is too low (in engineering units).
HI-Tare must be > 10
Calibration Load is too low. Increase load.
TARE and HI values identical, in engineering units.
Overrange/Underrange: ER.28 is displayed alternatively to
measured load. Verify that sensor mechanical installation
is OK and corresponding to Factory indications. In case
perform again Sensor Installation. Calibrate again the
699Plus after the modifications.
C button pressed for more than 3 seconds, when 699Plus
controller is in calibration mode.
Version : UK 3r3 dated 05/05/17
Page: 5/6
