LoadSentry
Instruction Manual
Digital load measuring system

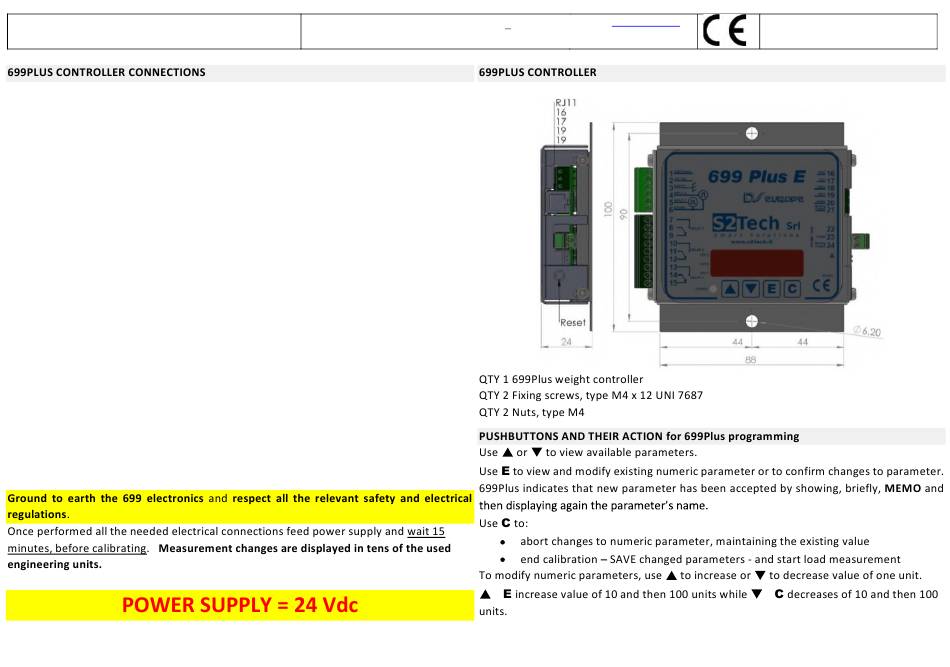

Screw Terminal Meaning
1
GND (DC POWER SUPPLY)
2
+ 24 V (DC POWER SUPPLY)
3
EARTH connection
4
CONTACT I/O 2 (Display Zeroing)
5
CONTACT I/O 1 (Chain compensation)
6
I/O CONTACT's common reference
7
Relay 3 - Normally Open contact
8
Relay 3 - Normally Closed contact
9
Relay 3 Common contact
10
Relay 2 - Normally Open contact
11
Relay 2 - Normally Closed contact
12
Relay 2 Common contact
13
Relay 1 - Normally Open contact
14
Relay 1 - Normally Closed contact
15
Relay 1 Common contact
16
+ power supply to transducer
17
- power supply to transducer
18
+ signal form transducer
19
- signal from transducer
23
AGND (Analog output)
24
Analog Output
S2Tech srl
MANU
Via Imperia, 28 Milano ITALY
Tel: +39 02 8910142 - Fax: + 39 02 89124848
e-mail:
info@s2tech.it
www.s2tech.it
+
Version : UK 3r3 dated 05/05/17
Page: 4/6
+
Advertisement
Related Manuals for S2Tech 699PLUS
Summary of Contents for S2Tech 699PLUS
- Page 1 Version : UK 3r3 dated 05/05/17 LoadSentry S2Tech srl Instruction Manual MANU Via Imperia, 28 Milano ITALY www.s2tech.it Page: 4/6 Digital load measuring system Tel: +39 02 8910142 - Fax: + 39 02 89124848 Screw Terminal Meaning GND (DC POWER SUPPLY)
- Page 2 Verify that sensor mechanical installation is OK and corresponding to Factory indications. In case perform again Sensor Installation. Calibrate again the 699Plus after the modifications. C button pressed for more than 3 seconds, when 699Plus controller is in calibration mode.
- Page 3 0 Vac/dc = lift DOOR OPEN. +12/24Vdc (9/18 Vac) = lift DOOR CLOSED. In case of black out, send cabin to lowest floor and reconnect the 699Plus control unit again to the power supply. 699Plus will automatically re-check and activate the compensation function.
- Page 4 Notice: The information in this manual is subject to change without notice.S2Tech shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material.
