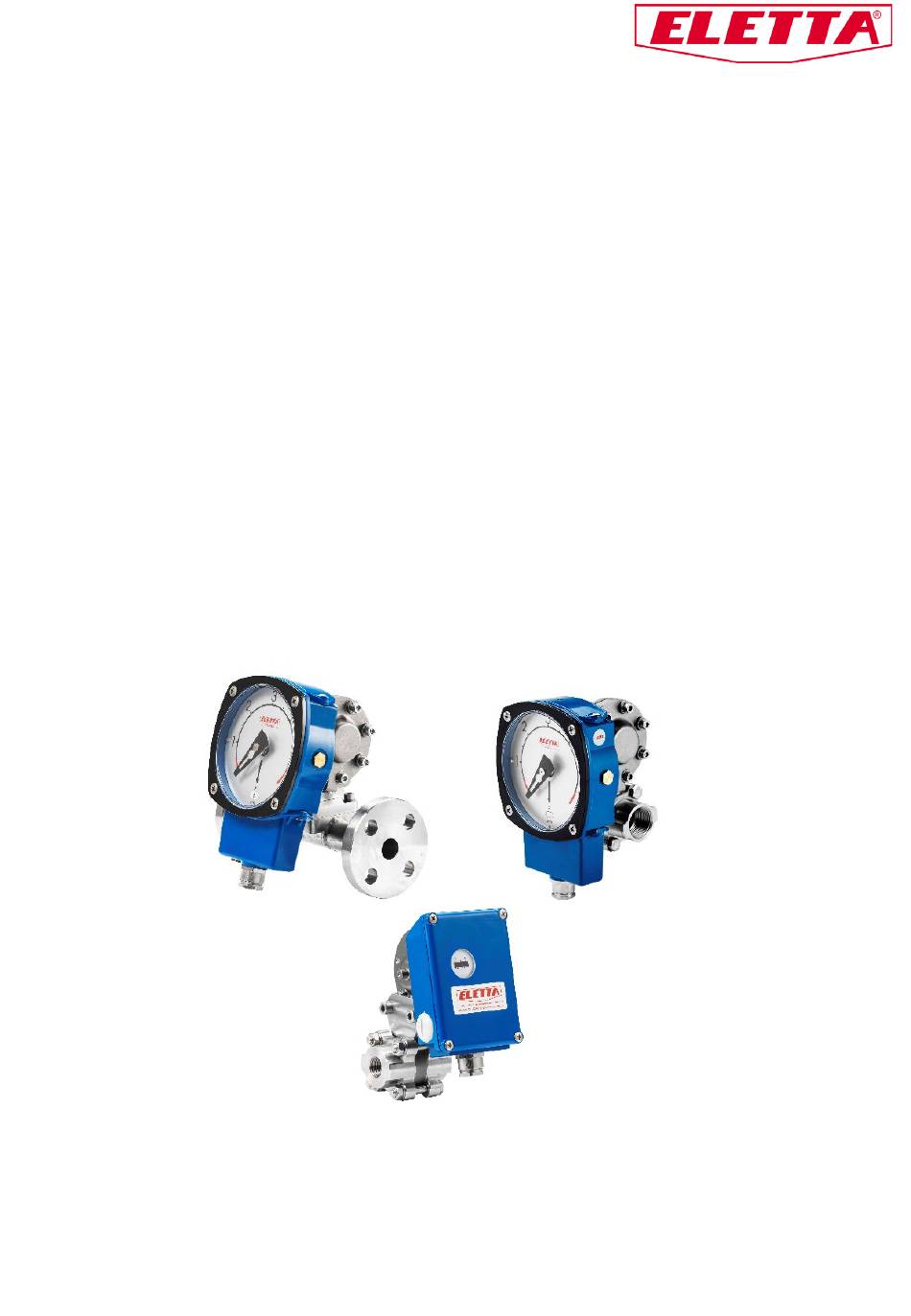

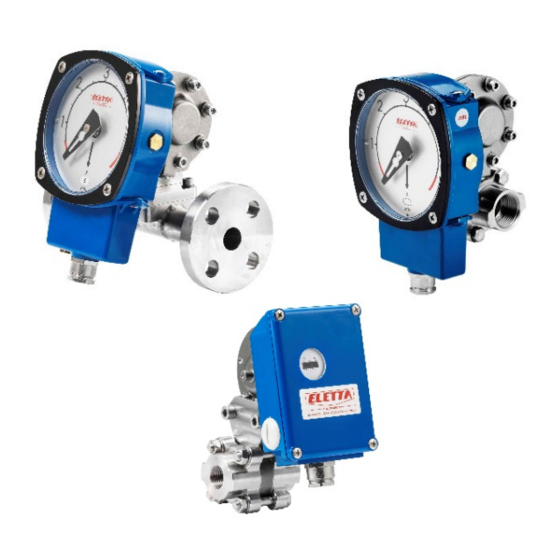

- Page 1 Manual Eletta Flow Monitor TIVG-S Modell S2 o05 2021-04-20 80A2E22...
- Page 2 Eletta Flow AB, Sweden. Distributors Eletta has appointed a number of distributors all over the world. You will find more information about your closest distributor at our web site www.eletta.com, or by contacting our Customer Service Center.
-
Page 3: Table Of Contents
Contents General Information ................4 Description ................4 Specifications ................5 Installation ..................7 Unpacking ................. 7 Procedures before Installation ..........7 Installation of the Pipe Section ..........7 Installation and changing the Control Unit ........ 9 Electrical Installation ............... 10 Operation .................. -
Page 4: General Information
ISO9001 and ISO14001 and certified by the nuclear industry in several countries. The Eletta TIVG-S series is replacing the old TIVG-F and -R series with updated materials and functions. The upgrade gives a higher quality indicator allowing... -
Page 5: Specifications
Monitor. As an option you can order a direct reading scale in different measuring units i.e. m3/h, l/min etc. 1.2 Specifications Accuracy: <+/–5% F.S (full scale) of the chosen Flow range The accuracy stated is achievable if the installation instruction is followed given in this manual. - Page 6 150°C (300°F). CE-approvals: The Eletta Flow Monitors conforms with the EU directive for low voltage no: 72/23/EEC (EN 60 204-1, Part 1.) We refer to the certificates issued, which will be sent to you upon request. They are also available at www.eletta.com.
-
Page 7: Installation
2.1 Unpacking We appreciate that you have decided to purchase our Products and we would like to ask you to begin the installation by checking your delivery against the Packing List. Please make sure to check the box for external damages before opening. - Page 8 Recommended installation of Pipe Section Figure 1 The reasons for this procedure is to achieve a stable flow profile inside the pipe and by doing so, get a true reading. Please be aware of the fact that it is practically impossible to predict when the flow is stable after disturbances in the piping, so this must serve as a guideline only.
-
Page 9: Installation And Changing The Control Unit
The flanged models must be aligned with the counter flange and not placed in stress by tightening the bolts uneven. The flanged models come with a gasket and we recommend using this, as it is dimensioned to suit the installation. Please see to that the gasket is properly aligned and not disturbing the flow. -
Page 10: Electrical Installation
2.5 Electrical Installation Note!!! An authorized professional person should make all electrical installations. Before you connect any cables, please make sure that you have the right power supply within the specifications (see section 1.2 “Specifications”). All terminal block connections are to be made through the included cable gland PR22,5/PG16 (and please note that you can have two alternative moun- tings of the cable gland depending on what side you want to enter with the ca- bles). -
Page 11: Operation
This mechanism transforms the movement into a Flow rate value shown on the dial. All Indicating units of the Eletta Flow Monitors are tested and approved according to the European CE-mark regulations. (Pls. - Page 12 For threaded model in Brass G40: Untighten the bolts that hold the Pipe Section between the flanges in the piping (do not remove the threaded parts from the piping). Remove only the number of bolts necessary to pull the Monitor from the piping, normally it takes only one bolt from the highest position, to get the Monitor out.
-
Page 13: Adjustment Of Switch Point, S2 And S25
3.3 Adjustment of switch point All the Indicating units on Eletta Flow Monitors are tested and calibrated according to the customers’ orders before shipping. If the customer does not specify a desired switch point for the flow alarm, the TIVG-S25 Monitor’s micro switches are preset to trip at the min- and max flow value. -
Page 14: Change Of Flow Direction
For TIVG-V15: To re-adjust, remove the cover and the adjusting dial is then visible at the top. Put a screwdriver in the slot of the adjusting dial and gently turn the dial to the desired position. Your will find that you by doing this are moving the plate, where the micro switch is mounted mechanically. -
Page 15: Change Of Dial Orientation
Eletta Flow AB, Sweden for help. 3.5 Change of Dial Orientation As the Eletta Flow Monitors are not limited to a certain mounting position in the piping system, the large visible dial can be mounted in several positions to suit the application. -
Page 16: Trouble Shooting
Trouble shooting 4.1 Verification of flow We would like to stress the fact that all Indicating units on the Eletta Flow Monitors are calibrated and adjusted individually in water in a specially purpose built calibrated flow rig in our workshop. This means that we have... -
Page 17: Electrical Connections
If so, move the Monitor further away to achieve enough straight runs. You can of course verify the flow in the Eletta Flow Monitor versus an- other flow meter in the system or take the Monitor out and put in a flow test rig, if you have the possibility. -
Page 18: Spares
If you find the micro swit- ches are malfunctioning, it is possible to order new ones from Eletta Flow or your representative and replace them on site. If you need to order a complete Monitor or a Control Unit for any reason, ple- ase check the identification plate/tag and write down the serial number, flow range and liquid and order a new Unit from us. -
Page 19: Tables
Tables 5.1 Measuring Ranges MC = Measuring constant on TIVG-S25 80A2E22... -
Page 20: Weight And Dimensions Tivg V15R
5.2 Weight and Dimensions TIVG- 15 and 25R TIVG- V15-40R 80A2E22... -
Page 21: Weight And Dimensions Tivg S25R
TIVG- S25-15 and 25R TIVG- S25-40R 80A2E22... -
Page 22: Weight And Dimensions Tivg S25F
TIVG-S25F 80A2E22... -
Page 23: Spare Parts
6.1 TIVG-V15-15 and 25R 80A2E22... -
Page 24: Exploded Drawing Tivg-V15-40R
6.2 TIVG-V15-40R 80A2E22... -
Page 25: Exploded Drawing Tivg-S25-15 And 25 R
6.3 TIVG-S25-15 and 25R 80A2E22... -
Page 26: Exploded Drawing Tivg-S25-40R
6.4 TIVG-S25-40R 80A2E22... -
Page 27: Exploded Drawing Tivg-S25F
6.5 TIVG-S25F 80A2E22... -
Page 28: Distributors
Distributors Eletta has appointed distributors around the world. You find more information about which distributor to contact on our website www.eletta.com Recycling Recycle your product and packaging at disposal These products and packaging should not be mixed with general household waste.
