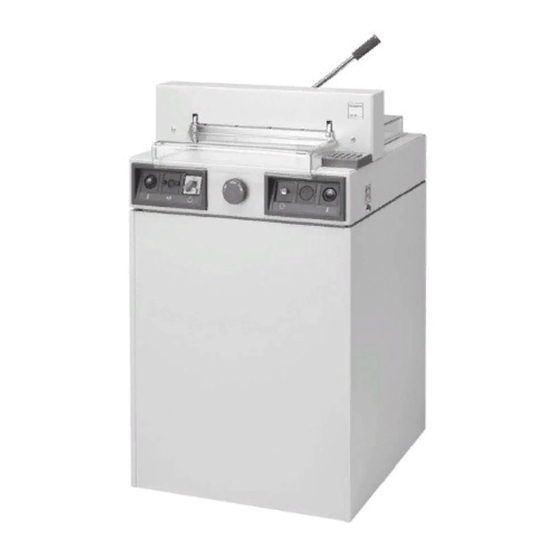

EBA 430 E Operating Instructions Manual

Hide thumbs Also See for 430 E:

Operating instructions manual (46 pages)

page of 46

/ 46
Bookmarks

Quick Links

Download this manual

All manuals and user guides at all-guides.com

EBA 430 E

Operating Instructions

EBA 430 EP

Need help?

Do you have a question about the 430 E and is the answer not in the manual?

Questions and answers

Summary of Contents for EBA 430 E

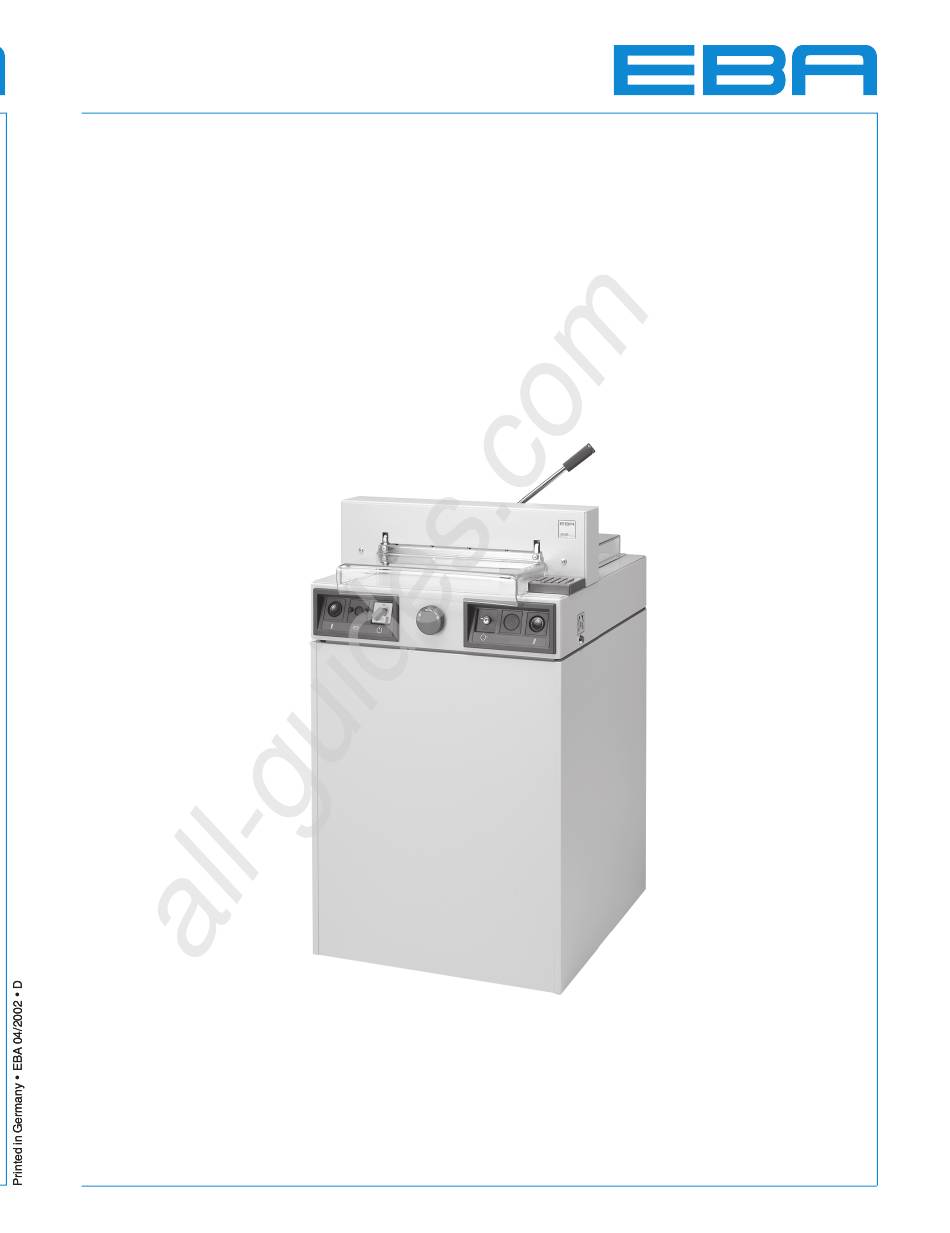

Page 1 All manuals and user guides at all-guides.com EBA 430 E Operating Instructions EBA 430 EP...
Page 2 All manuals and user guides at all-guides.com...
Page 3 All manuals and user guides at all-guides.com EBA 430 E • EBA 430 EP Read through the operating instructions carefully Table of contents Pages Safety precautions 4 – 11 Installation 12 – 13 Operation 14 – 25 Blade replacement 26 – 34 Maintenance and cleaning 35 –...
Page 4 All manuals and user guides at all-guides.com...
Page 5 All manuals and user guides at all-guides.com The machine must be installed on a sturdy, dry and level floor! The machine must not be located outside! Do not use in the vicinity of inflammable liquids or gases!
Page 6 All manuals and user guides at all-guides.com...
Page 7 All manuals and user guides at all-guides.com This machine is only constructed for "one-man operation"! Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may only be performed when the main switch is switched off!
Page 8 All manuals and user guides at all-guides.com...
Page 9 All manuals and user guides at all-guides.com The dangerous cutting movement is safeguarded by a movable guard (A) and a safety two-handed control system! (B) Before working with the machine and after every blade replacement the automatic cut-off function of safety guard (A),(correct if distance between cover and table is <...
Page 10 All manuals and user guides at all-guides.com...
Page 11 All manuals and user guides at all-guides.com When not in use for a longer period switch off. (Main switch to "0"). -11-...
Page 12 All manuals and user guides at all-guides.com...
Page 13 All manuals and user guides at all-guides.com Only on EBA 430 E Screw on the backgauge crank (A) and operating handle (B) (found together with tools in the tool set). Plug into socket. -13-...
Page 14 All manuals and user guides at all-guides.com...
Page 15 Position the main switch to "I" (A). Insert the key for the control system and move it to the right (B). Open the safety guard (C). The machine is now ready for use. Only EBA 430 EP Press button (D). (Reference point is driven to).
Page 16 All manuals and user guides at all-guides.com...
Page 17 All manuals and user guides at all-guides.com EBA 430 E EBA 430 E Measurement is indicated on the back side-lay (A). The fine adjustment is achieved by using the calibration ring (B). The scale is divided in mm (One complete turn corresponds 10 mm = 1 cm).
Page 18 All manuals and user guides at all-guides.com...
Page 19 All manuals and user guides at all-guides.com Position the paper on the back gauge (A) and side-lay (B). To move paper stacks, please use the stacking angle (C). (Run backgauge to the front for turning the paper stack). Close the safety guard. -19-...
Page 20 All manuals and user guides at all-guides.com...
Page 21 All manuals and user guides at all-guides.com Operating elements - Guard front - Safety two-handed control system - Overload switch (Blade drive/Backgauge drive) - Backgauge control - Clamping - Main switch - Handwheel for backgauge setting - Key switch - Backgauge - Side gauge left - Display cutting size (cm or inch) - Select program step down...
Page 22 All manuals and user guides at all-guides.com...
Page 23 All manuals and user guides at all-guides.com • Move the pressing lever to the left by a slight swing. • Release the cut. Eject function If the button is kept pressed the backgauge moves to a measurement of 9 cm (Basic adjustment) and when released the button returns to the measurement last set.
Page 24 All manuals and user guides at all-guides.com...
Page 25 All manuals and user guides at all-guides.com Eject function Working with programs • Set the measurements push the • Press appears on the display button. • Enter Program number 1 ... 9 • Store the dimension. With the button you are able to change Backgauge moves in the program for between several program steps.
Page 26 All manuals and user guides at all-guides.com...
Page 27 All manuals and user guides at all-guides.com Turn the blade depth adjustment screw to the left until it stops (Screwdriver found in tool set). Lower the blade by pressing both cutting buttons (1.). Keep one button pressed and turn off the main switch (2.). -27-...
Page 28 All manuals and user guides at all-guides.com...
Page 29 All manuals and user guides at all-guides.com Remove the 2 blade screws (1.). Then put the blade changing tool (2.) into place and fasten it to the blade. The remaining screws should then be removed (1.). Loosening the grips of the blade changing tool lightly (2.) will now allow the blade to be taken downwards out of the machine (3.).
Page 30 All manuals and user guides at all-guides.com...
Page 31 All manuals and user guides at all-guides.com Screw the exchange blade to the blade changing tool as follows: (A) • make sure there is a space ot 4 - 5 mm or 0.15 - 0.20 inches (B). • blade must be covered (C). 4-5 mm 0.15- 0.20 inch...
Page 32 All manuals and user guides at all-guides.com...
Page 33 All manuals and user guides at all-guides.com Close the safety guard (1.) Lower the blade by pressing both cutting buttons (2.). Keep one button pressed and turn off the main switch (3.). Open the safety guard (4.). With the special wrench (B) the 3 eccentrics shall be screwed so far down (5.)until the paper is cut along the entire length of the blade (The blade must...
Page 34 All manuals and user guides at all-guides.com...
Page 35 All manuals and user guides at all-guides.com Maintenance work may only be performed by trained staff. Disconnect the mains before starting any service work or before removing the cover. Oil the backgauge (A) control weekly i.e. grease it. (Use non-resinous oil and grease). Twice a year the remaining 14 grease parts (B) (see picture).
Page 36 All manuals and user guides at all-guides.com...
Page 37 All manuals and user guides at all-guides.com Machine does not function Machine is plugged in? Main switch to position "I"? Control system activated? (Turn key to the right) -37-...
Page 38 All manuals and user guides at all-guides.com...
Page 39 All manuals and user guides at all-guides.com Does not cut through the last sheet: • Turn or turn around the cutting stick (A), readjust the blade by means of the blade adjusting knob (B) Poor cutting quality or blade stays in the paper stack.
Page 40 All manuals and user guides at all-guides.com...
Page 41 All manuals and user guides at all-guides.com EBA 430 E Cut cannot be made. • If cover is open: close it. • If cover is closed: open and re-close it. (Security check). EBA 430 EP Cut cannot be made. • Measurement has not been driven to correctly.
Page 42 All manuals and user guides at all-guides.com...
Page 43 All manuals and user guides at all-guides.com Recommended accessories: • Blade Nr. 9000 120 • Cutting stick (6 pieces) Nr. 9000 220 • Paper knock-up block Nr. 9000 520 • Blade changing tool Nr. 9000 515 • Cabinet Nr. 42618001 •...
Page 44 All manuals and user guides at all-guides.com...
Page 45 This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 98/37, 73/23 and 89/336. EBA is certified under the DIN EN ISO 9001 quality standards. The exact technical specifications can be found on the technical specifications sticker on the machine.
Page 46 All manuals and user guides at all-guides.com...

This manual is also suitable for:

430 ep
