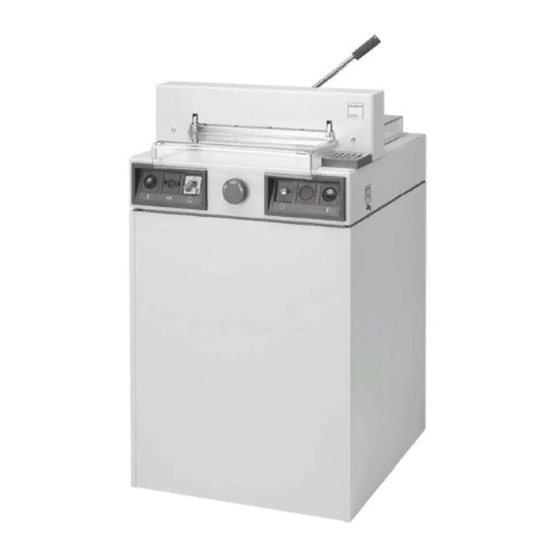

EBA 430 E Operating Instructions Manual

Paper cutting machine
Hide thumbs Also See for 430 E:

Advertisement

Quick Links

Download this manual
EBA 430 E
Operating Instructions
EBA 430 EP

Advertisement

loading
Need help?

Need help?

Do you have a question about the 430 E and is the answer not in the manual?

Questions and answers

Related Manuals for EBA 430 E

Summary of Contents for EBA 430 E

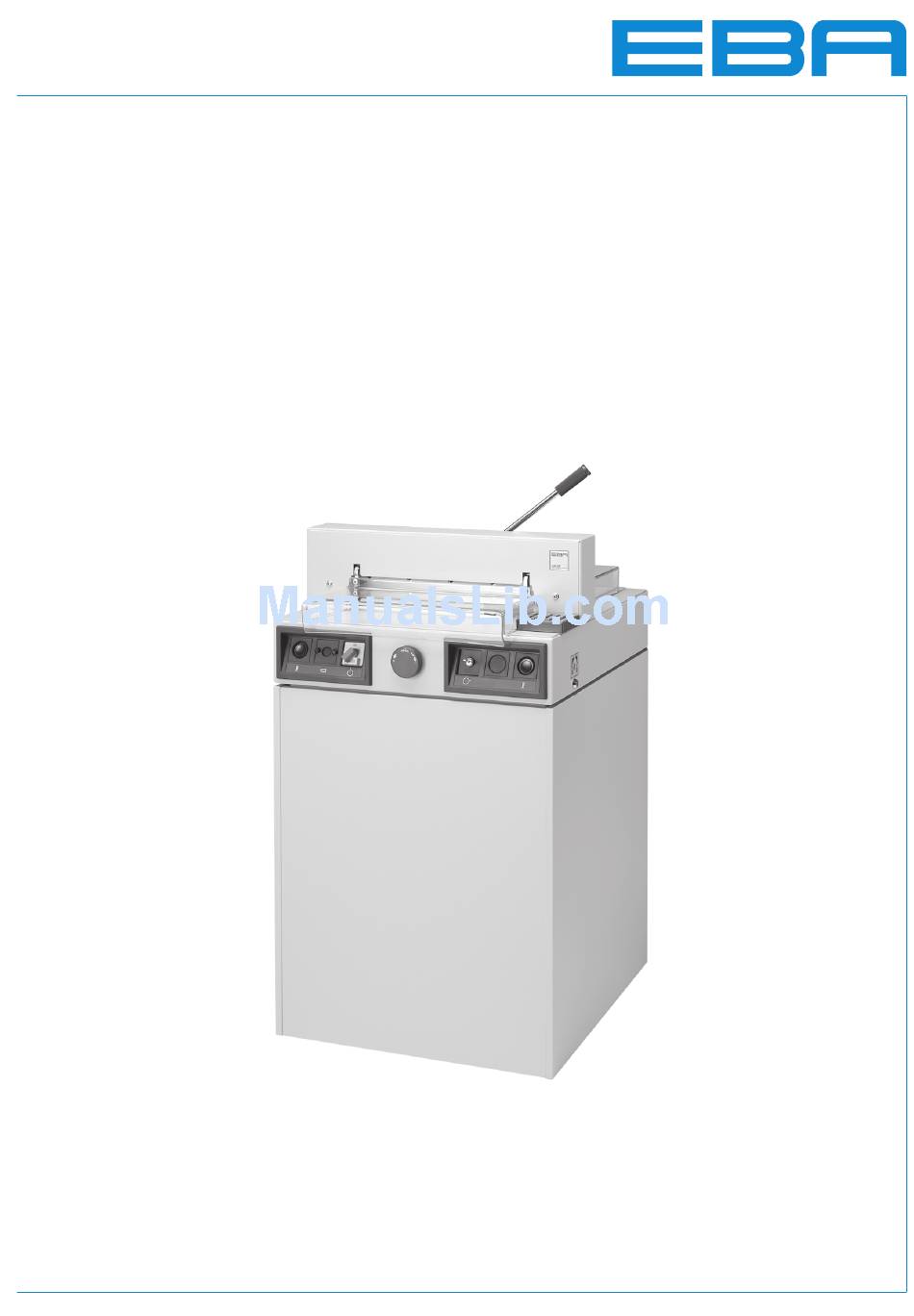

  • Page 1 EBA 430 E Operating Instructions EBA 430 EP...
  • Page 2 EBA 430 E • EBA 430 EP Dear customer, Thank you for choosing a paper cutting machine from EBA. With the purchase of this quality product you can be sure you have made a good choice. Please read these operating instructions before putting the machine into operation...
  • Page 3 EBA 430 E • EBA 430 EP Read through the operating instructions carefully Table of contents Pages Safety precautions 4 – 11 Installation 12 – 13 Operation 14 – 25 Blade replacement 26 – 34 Maintenance and cleaning 35 – 36 Possible malfunctions 37 –...
  • Page 4 EBA 430 E • EBA 430 EP Children must not operate the machine! Paper clips or hard material will damage the cutting blade! Do not cut hard materials or materials which may splinter!
  • Page 5 The machine must be installed on a sturdy, dry and level floor! The machine must not be located outside! Do not use in the vicinity of inflammable liquids or gases!
  • Page 6 EBA 430 E • EBA 430 EP The machine may only be used for cutting paper or similar materials! Never leave the blade unattended. Do not dismount or transport the blade without protection! Risk of injury!
  • Page 7 This machine is only constructed for "one-man operation"! Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may only be performed when the main switch is switched off!
  • Page 8 EBA 430 E • EBA 430 EP All components which may endanger the operator are covered by a guard! Operating the machine without safety device (front safety guard (A), rear screwed safety guard (B) and panel (C) is forbidden!
  • Page 9 The dangerous cutting movement is safeguarded by a movable guard (A) and a safety two-handed control system! (B) Before working with the machine and after every blade replacement the automatic cut-off function of safety guard (A),(correct if distance between cover and table is < 15 mm) main switch (B) and control panel (C) must be checked.
  • Page 10 EBA 430 E • EBA 430 EP Protect mains cable against heat, oil and sharp edges! Connect the power cord to a single phase 230 V / 10A min socket 115 V / 15A min Ensure free access to mains...
  • Page 11 When not in use for a longer period switch off. (Main switch to "0"). -11-...
  • Page 12 EBA 430 E • EBA 430 EP Unpack the cabinet (A), (accessories) or stand (B), (accessories) and assemble according to the enclosed separate instructions. 2 strong people are required to lift the machine onto the cabinet or stand. Beware of...
  • Page 13 Only on EBA 430 E Screw on the backgauge crank (A) and operating handle (B) (found together with tools in the tool set). Plug into socket. -13-...
  • Page 14 EBA 430 E • EBA 430 EP It is not allowed to operate the machine if the operating and safety instructions have not been understood. Please check the safety devices upon their function and completeness before working with. • All covers have to be mounted (A).
  • Page 15 Position the main switch to "I" (A). Insert the key for the control system and move it to the right (B). Open the safety guard (C). The machine is now ready for use. Only EBA 430 EP Press button (D). (Reference point is driven to).
  • Page 16 EBA 430 E • EBA 430 EP EBA 430 E EBA 430 E The backgauge has to be adjusted by the handle with calibration ring (A). Measurement has to be adjusted from the rear. EBA 430 EP EBA 430 EP...
  • Page 17 EBA 430 E EBA 430 E Measurement is indicated on the back side-lay (A). The fine adjustment is achieved by using the calibration ring (B). The scale is divided in mm (One complete turn corresponds 10 mm = 1 cm).
  • Page 18 EBA 430 E • EBA 430 EP Optical cutting line (A) that indicates the exact position of the cut.(Only use when no exact cut is required). Only for EBA 430 E Change of measurement through oversight is avoided by pulling out the lever.
  • Page 19 Position the paper on the back gauge (A) and side-lay (B). To move paper stacks, please use the stacking angle (C). (Run backgauge to the front for turning the paper stack). Close the safety guard. -19-...
  • Page 20 EBA 430 E • EBA 430 EP Before every cut the lever must be pushed to the left and tightened with light pressure. Press both buttons of the two-hand activation (A) simultaneously and keep them pressed until the paper is completely cut.
  • Page 21 Operating elements - Guard front - Safety two-handed control system - Overload switch (Blade drive/Backgauge drive) - Backgauge control - Clamping - Main switch - Handwheel for backgauge setting - Key switch - Backgauge - Side gauge left - Display cutting size (cm or inch) - Select program step down - Select program step up - Stop and delete input...
  • Page 22 EBA 430 E • EBA 430 EP EBA 430 EP Start machine • Main switch to position "I", insert the key for the control panel and turn it to the right. Open the safety Front guard • Press button backgauge...
  • Page 23 • Move the pressing lever to the left by a slight swing. • Release the cut. Eject function If the button is kept pressed the backgauge moves to a measurement of 9 cm (Basic adjustment) and when released the button returns to the measurement last set.
  • Page 24 EBA 430 E • EBA 430 EP Programming only EBA 430 EP This control system enables you to store 9 programs with 9 programmable steps. One step represents one measurement. After entering the program numbers you are able to change...
  • Page 25 Eject function Working with programs • Set the measurements push the • Press appears on the display button. • Enter Program number 1 ... 9 • Store the dimension. With the button you are able to change Backgauge moves in the program for between several program steps.
  • Page 26 EBA 430 E • EBA 430 EP If the cutting quality decreases: • Check the cutting depth (see page 34). • Check the cutting stick (see page 30). • Replace or grind the cutting stick (see page 26-34). The blade may only be grinded by a qualified workshop or from the manufacturer Krug &...
  • Page 27 Turn the blade depth adjustment screw to the left until it stops (Screwdriver found in tool set). Lower the blade by pressing both cutting buttons (1.). Keep one button pressed and turn off the main switch (2.). -27-...
  • Page 28 EBA 430 E • EBA 430 EP The 3 eccentrics are now exposed and should be turned counter clockwise to position "0" with the special wrench (A) (found in tool set). Until the red arrow-like eccentric marking corresponds to the position "0" (B).
  • Page 29 Remove the 2 blade screws (1.). Then put the blade changing tool (2.) into place and fasten it to the blade. The remaining screws should then be removed (1.). Loosening the grips of the blade changing tool lightly (2.) will now allow the blade to be taken downwards out of the machine (3.).
  • Page 30 EBA 430 E • EBA 430 EP If needed the cutting stick can be turned or exchanged. (The cutting stick can be used eight times). Danger! Risk of injury! -30-...
  • Page 31 Screw the exchange blade to the blade changing tool as follows: (A) • make sure there is a space ot 4 - 5 mm or 0.15 - 0.20 inches (B). • blade must be covered (C). 4-5 mm 0.15- 0.20 inch Place the blade to be exchanged with the blade changing tool mounted (1.), into the blade carrier and push it up to the top and...
  • Page 32 EBA 430 E • EBA 430 EP Lightly tighten 3 of the 5 blade screws (1.) (with washers), remove the blade changing tool (2.) and lightly tighten the remaining blade screws (with washers) (3.). Remove all tools and distribute paper along the entire cutting length.
  • Page 33 Close the safety guard (1.) Lower the blade by pressing both cutting buttons (2.). Keep one button pressed and turn off the main switch (3.). Open the safety guard (4.). With the special wrench (B) the 3 eccentrics shall be screwed so far down (5.)until the paper is cut along the entire length of the blade (The blade must remain parallel, not too deep into cutting stick).
  • Page 34 EBA 430 E • EBA 430 EP Cut a stack of paper to test. If the last sheet has not been cut through move the knob for the adjustment of the blade depth setting (A) to the right (about ½ - ¾ turn if maximum of stacking...
  • Page 35 Maintenance work may only be performed by trained staff. Disconnect the mains before starting any service work or before removing the cover. Oil the backgauge (A) control weekly i.e. grease it. (Use non-resinous oil and grease). Twice a year the remaining 14 grease parts (B) (see picture).
  • Page 36 EBA 430 E • EBA 430 EP Safety check According to § 40 VBG 7i a safety check according to the safety stipulations has to be made every 5 years by a service team authorised through our service department. The carrying-out of such a check has to be attested on the test certificate.
  • Page 37 Machine does not function Machine is plugged in? Main switch to position "I"? Control system activated? (Turn key to the right) -37-...
  • Page 38 About 1 minute, push the safety button (A). • Machine blocked • Blade is dull Eliminate the disturbance, push the safety button (A). EBA 430 EP only: Safety button (B) jumps out. • Backgauge blocked Safety button (B) jumps out. Eliminate disturbance, push the safety button (B).
  • Page 39 Does not cut through the last sheet: • Turn or turn around the cutting stick (A), readjust the blade by means of the blade adjusting knob (B) Poor cutting quality or blade stays in the paper stack. • change the blade (C) (see page 26-34). -39-...
  • Page 40 EBA 430 E • EBA 430 EP Motor runs but blade does not move downwards. • Security brake has been activated! Inform the service team! www.EBA.de "Service" service@krug-priester.com "Service" Display illumination off • Machine is plugged in? (A) • Main switch on position "I"? (B) •...
  • Page 41 EBA 430 E Cut cannot be made. • If cover is open: close it. • If cover is closed: open and re-close it. (Security check). EBA 430 EP Cut cannot be made. • Measurement has not been driven to correctly.
  • Page 42 EBA 430 E • EBA 430 EP None of the above mentioned methods helped to solve the problem: Contact Service team under • www.EBA.de "Service" service@krug-priester.com "Service" Subject to alterations without notice. -42-...
  • Page 43 Recommended accessories: • Blade Nr. 9000 120 • Cutting stick (6 pieces) Nr. 9000 220 • Paper knock-up block Nr. 9000 520 • Blade changing tool Nr. 9000 515 • Cabinet Nr. 42618001 • Stand Nr. 43051100 -43-...
  • Page 44 EBA 430 E • EBA 430 EP Remarks: -44-...
  • Page 45 This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 98/37, 73/23 and 89/336. EBA is certified under the DIN EN ISO 9001 quality standards. The exact technical specifications can be found on the technical specifications sticker on the machine.
  • Page 46 EBA • Made in Germany Document Shredders Trimmers and Guillotines • • • • • EBA Krug & Priester 72336 Balingen Germany www.eba.de...
