iw25 In-Wall Loudspeaker

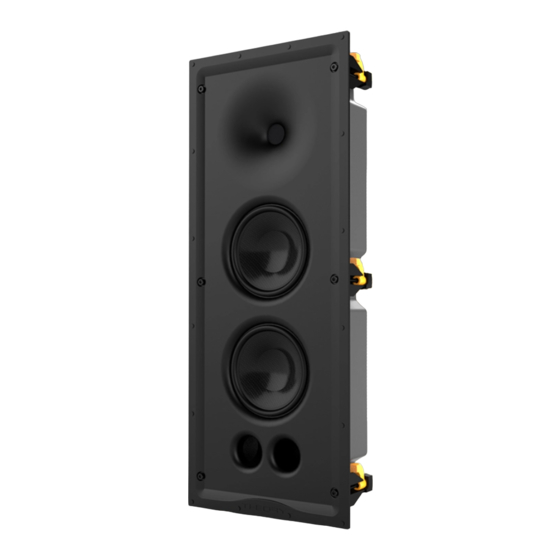

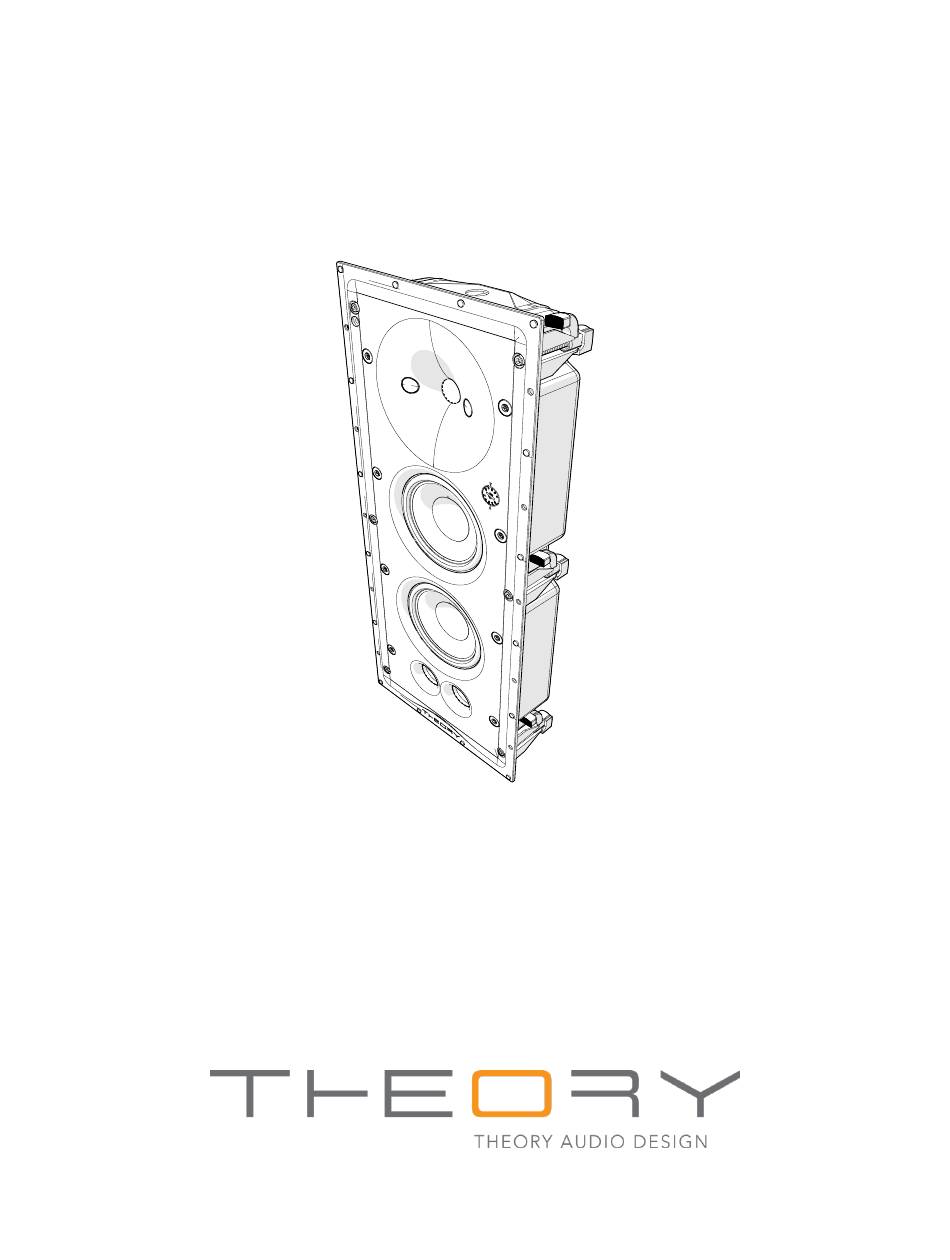

QUICK START INSTALLATION
GUIDE
Rev A 210227
Theory iw25 QUICK START Rev A 210227

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iw25 and is the answer not in the manual?

Questions and answers

Related Manuals for THEORY iw25

Summary of Contents for THEORY iw25

  • Page 1 In-Wall Loudspeaker QUICK START INSTALLATION GUIDE Rev A 210227 Theory iw25 QUICK START Rev A 210227...

  • Page 2: Limited Warranty

    LIMITED WARRANTY Disclaimer : THEORY AUDIO DESIGN, LLC is not liable for any damage to loudspeakers or any other equipment that is caused by negligence or improper use or installation of this product, including damage caused by connecting Theory loudspeakers and subwoofers to third party ampli- fiers.

  • Page 3: Important Safety Instructions

    Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus that produce heat. Use only attachments/accessories specified by THEORY AUDIO DESIGN, LLC. Use only with hardware, brackets, stands, and components sold with the apparatus or supplied by THEORY AUDIO DESIGN, LLC. 10. Mount only to solid architectural walls.

  • Page 4: Product Features

    QUICK START GUIDE - iw25 PRODUCT FEATURES TERMINAL COVER WITH CUTOUT FOR CONDUIT CLAMP THEORY HIGH EFFICIENCY COMPRESSION TWEETER RETENSION INSERT FOR OUTDOOR GRILLE (OPTIONAL) THEORY AXISYMMETRIC WAVEGUIDE 70V/100V TRANSFORMER TAP AND BYPASS SWITCH HIGH POWER GRILLE RETENSION MAGNETS NON-STRIP TORX TENSIONING SCREWS...

  • Page 5: In-Wall Installation

    Your Theory iw25 In-Wall Loudspeaker system may be installed into ordinary architectural walls and ceilings. If installed in the ceiling, a safety cable must be used to tether the loudspeaker to a rigid structural element such as an architectural stud or joist.
  • Page 6 QUICK START GUIDE - iw25 4 - INSERT SPEAKER Make sure clamping dogs are fully tucked within the cutout boundary. Figure 4a. Insert speaker into cutout and hold tight against drywall. Figure 4b. FIGURE 4a. Retract all clamping dogs to clear the FIGURE 4b.

  • Page 7: Specifications

    © 2021 THEORY AUDIO DESIGN, LLC. All rights reserved. Theory Audio Design routinely engages in programs to improve, modify and revise its products without notice or obligation. As such, your product may differ slightly from what is shown in this guide.
