Summary of Contents for THEORY ic

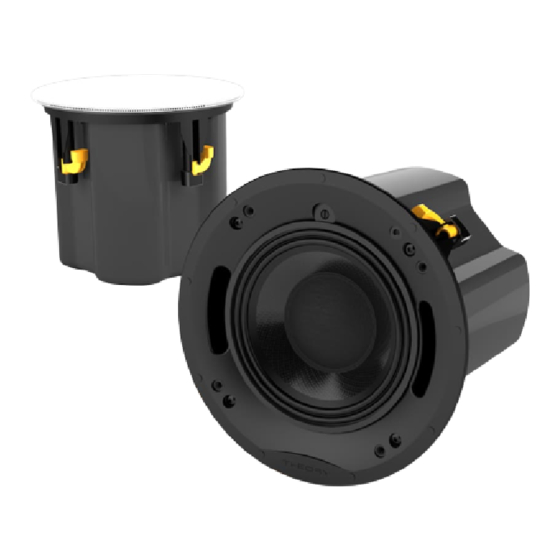

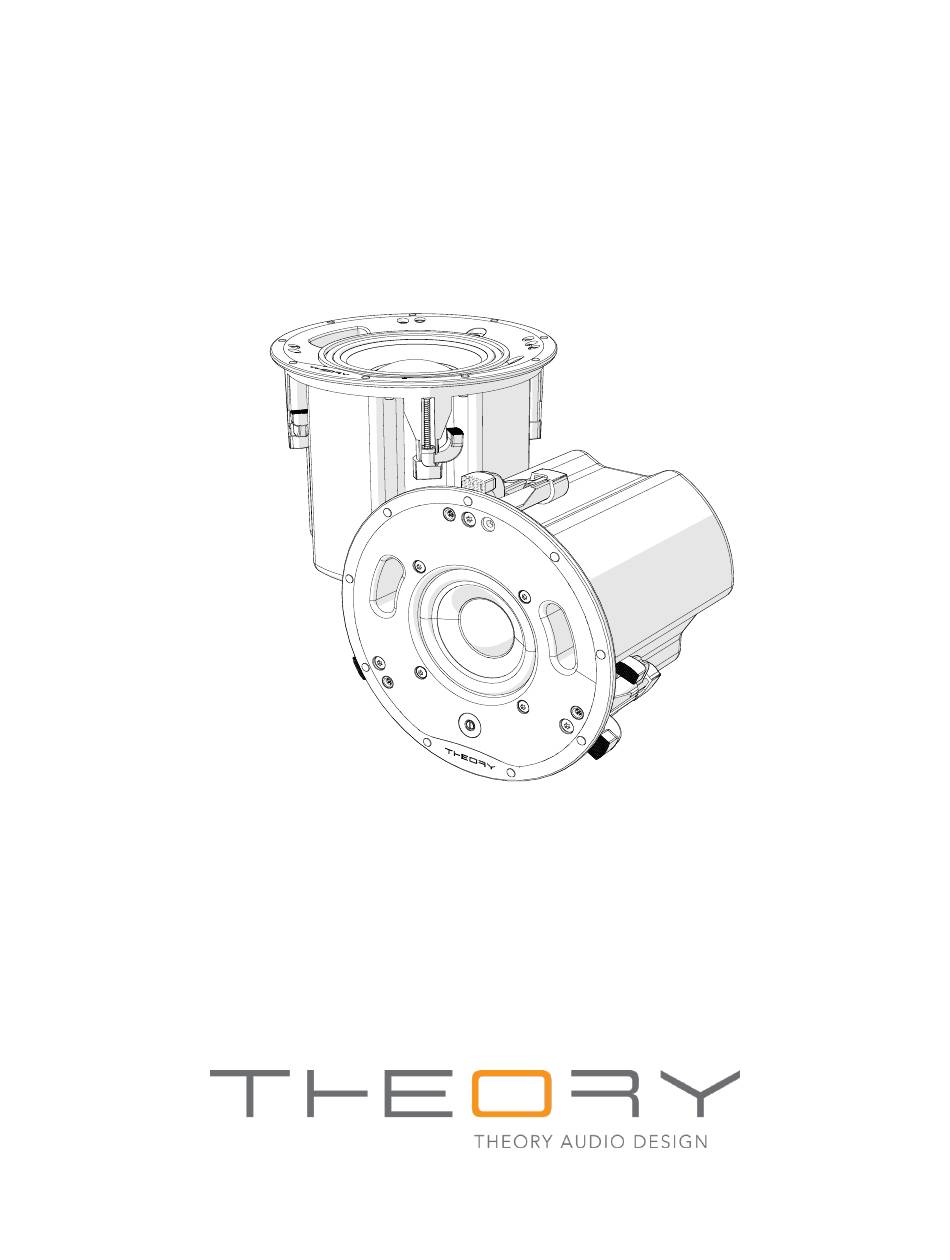

- Page 1 In-Ceiling Loudspeakers QUICK START INSTALLATION GUIDE Rev A 210525 Theory ic MODELS QUICK START Rev A 210526...
-
Page 2: Limited Warranty
LIMITED WARRANTY Disclaimer : THEORY AUDIO DESIGN, LLC is not liable for any damage to loudspeakers or any other equipment that is caused by negligence or improper use or installation of this product, including damage caused by connecting Theory loudspeakers and subwoofers to third party ampli- fiers. -
Page 3: Important Safety Instructions
Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus that produce heat. Use only attachments/accessories specified by THEORY AUDIO DESIGN, LLC. Use only with hardware, brackets, stands, and components sold with the apparatus or supplied by THEORY AUDIO DESIGN, LLC. 10. Mount only to solid architectural walls and ceilings. -
Page 4: Product Features
QUICK START GUIDE - ic MODELS PRODUCT FEATURES HIGH POWER GRILLE RETENSION MAGNETS 70V/100V TRANSFORMER TAP AND BYPASS SWITCH GRILLE SAFETY TETHER RECEPTACLE HIGH POWER CARBON FIBER DRIVER HIGH OUTPUT TUNING PORTS RETENSION INSERT FOR OUTDOOR GRILLE (OPTIONAL) NON-STRIP TORX TENSIONING SCREWS... -
Page 5: In-Ceiling Installation
OPERATING MODES - SAFETY CONSIDERATIONS - INDOOR/OUTDOOR INSTALLATIONS Your Theory ic loudspeaker can be used in LoZ (16 ohms) or HiZ (transformer) operating modes. Make sure you know the desired operation for your system prior to installing the loud- speakers as this will determine the wiring scheme required. - Page 6 QUICK START GUIDE - ic MODELS Secure safety cable to architectural structure 4 - ATTACH SAFETY CABLE BEFORE INSTALLING SPEAKER, ATTACH A SAFETY TETHER (NOT INCLUDED) TO A RIGID ARTCHITECTURAL MEMBER AND TO THE SAFETY TIE POINT ON THE BACK OF THE BACK CAN (SEE PAGE 2).
- Page 7 © 2021 THEORY AUDIO DESIGN, LLC. All rights reserved. Theory Audio Design routinely engages in programs to improve, modify and revise its products without notice or obligation. As such, your product may differ slightly from what is shown in this guide.
