SyxthSense ITPF Product Sheet

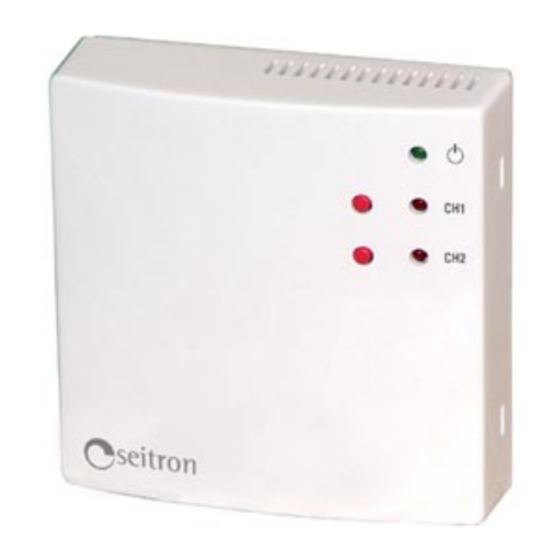

ITPF Telephone Interface Module
ITPF is a telephone interface for remote activation of any electrical load
using a telephone connection. The unit has two output channels and two
digital inputs which state can be checked through the telephone.
Buttons are available to toggle the output states manually. The unit is
supplied with 230Vac/12Vdc adapter.

Model Types

Model
ITPF-221

Technical Data

Power supply
Outputs
Inputs
Indication
Buttons
Installation
Protection Class
Operating Temperature
Storage Temperature
Humidity Limits
Enclosure Material
Colour
Size
Online Store: www.syxthsense.com
Enquiries: T: 0870 20 80 100 F: 0870 20 80 200
Description
Telephone Interface Module for Remote Activation
12Vdc
2 x Relays 3A @ 250Vac SPDT
2 x Digital Inputs
Green LED: On/Communicating
Red LEDs: Output Channels
Manual Activation of Each Channel (On the Cover)
Reset (Inside)
Wall Mounting
IP30
0..40°C
-10..+50°C
20..80% rH (non-condensing)
ABS V0 Self-Extinguishing
White (RAL9003)
85W x 85H x 31D mm
Copyright © 2005 SyxthSense Ltd – 09/2005
Product Sheet SW4.10
ITPF
Software Type
PS SW4.10– 1/6
