SyxthSense SRI-75 Series Manual

SRI-75 and SRI-P75 Series Modbus
/ BACnet Room Interfaces

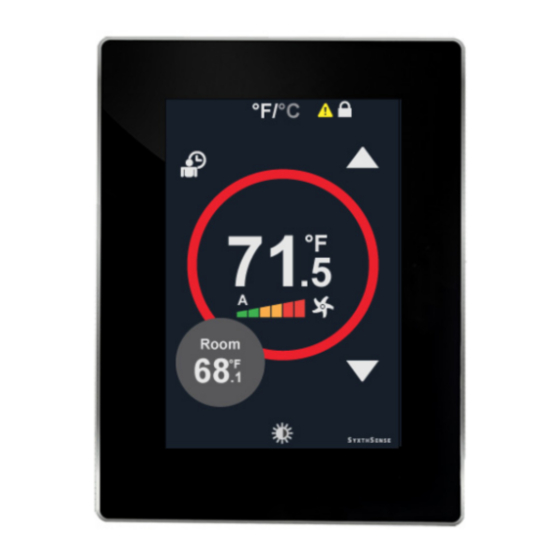

The SRI-75 series Modbus / BACnet Touchscreen user interfaces
provide modern looking low profile user interface and I/O-module
for flush mounting in room spaces.
The SRI-75 series interfaces have attractive 3.5" backlit
touchscreen with smart designer interface. SRI-P75 versions have
7-day time clock to provide network clock facility.
The MOD models have built-in Modbus RTU communications and
the BAC models provide BACnet MS/TP communications.
Features
• 24VAC/DC Power Supply
• 3.5" Inch Backlit Touchscreen Display
• BACnet and Modbus Communication Models
• P-Versions have 7 Day and 5+2 Day Schedule
• Flush Mounting in the UK, EURO and US Wall Mounting Box
• Attractive Modern Designer Look
• Built-In Temperature Sensor
• 2 x Remote NTC10 Sensor Inputs
Model Type
Online store: www.syxthsense.com
Enquiries: T: +44 (0)1392 875 414 E: info@syxthsense.com
Model
SRI-75-MOD
SRI-75-BAC
SRI-P70-MOD
SRI-P70-BAC
RH
• 24V 5A Switched Network Relay
• Digital Input for Overrides / Measurement
Description
Modbus 3.5" Touchscreen User Interface, 24Vac/dc Power
Supply, Extra Low Voltage
BACnet MS/TP 3.5" Touchscreen User Interface, 24Vac/dc
Power Supply, Extra Low Voltage
Modbus 3.5" Touchscreen User Interface with 7-Day Time
Clock, 24Vac/dc Power Supply, Extra Low Voltage
BACnet MS/TP 3.5" Touchscreen User Interface with 7-Day
Time, 24Vac/dc Power Supply, Extra Low Voltage
Relative Humidity Option, 2%rH Accurate
Product sheet MOD3.103
SRI-75
Type
PS MOD3.103 V1.00 - 1/23
