TECHZONE Ceiling System
™
R e c e s s e d a n d P e n d a n t F i x t u r e s

RECESSED LOUvER WITH LIgHT CHAMBER (RLLC)

Catalog No.s:
RLLC-I-64-lamping-U
RLLC-I-64-lamping-end panel options-U
RLLC-I-65-lamping-end panel options-U
RLLC-I-65-AR-lamping-center panel options-U
RLLC-I-65-COV-lamping-center panel options-U
48" or 60" Fixture for 9/16" Tegular or
15/16" Lay-In Grid
The RECESSED LLC 6" x 4' (48")
recessed direct luminaire with a matte white center louver and frosted
acrylic side diffusers, for individual and continuous row mounting.
A wireway channel running down the length of the housing on one side on
the top makes it easy to connect fixtures for continuous runs. This is a highly
versatile product range with a variety of sizes, lamping and other options.
These include:
4' luminaire with a continuous louver.
Lamp Options: 1 or 2, 4' 28W T5 or 54W T5 HO lamps.
4' or 5' luminaire with a louver running down the center, and a panel at
each end that can accommodate a variety of options including a blank cover,
air return panel, sprinkler, speaker, daylight/occupancy sensor, or an MR16
halogen downlight.
Lamp Options: 1 or 2, 3' or 4' T5 or T5 HO lamps.
5' luminaire with a 3" blank cover (COv) or Air Return (AR) panel at each
end, 2' louvers on either side, and a center feature that can accommodate
a variety of options including a blank cover, air return panel, sprinkler,
speaker, daylight/occupancy sensor, or an MR16 halogen downlight.
Lamp Options: 1 or 2, 2' 14W T5 or 24W T5 HO lamps
The 5' luminaire with the center options and the 2' lamps was originally
developed for (with over 20,000 luminaires successfully installed) a major
high-profile New York City office tower project.
Suggested applications: Open and private offices, retail spaces and
institutions.
4 7/8˝
Zumtobel Lighting Inc.
3300 Route 9W
Highland, NY 12528-2630
Technical Support: (845) 691-6262
www.zumtobel.us/armstrongtechzone
or 6" x 5' (60") is a narrow aperture
6˝
2 1/8˝
1 1/8˝
5 3/8˝

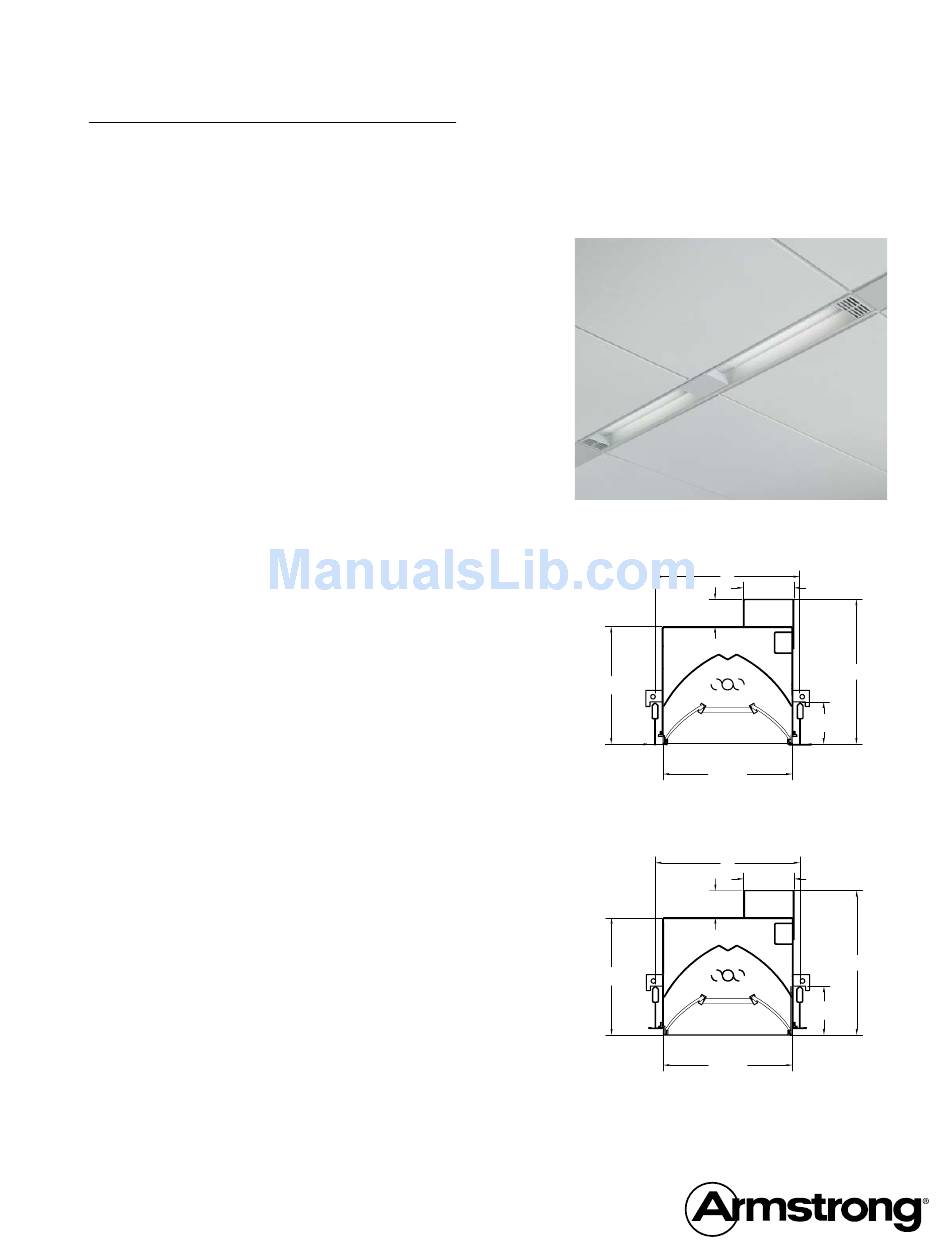

Recessed Louver with Light Chamber (RLLC)
4 7/8˝
End view – 15/16" Lay-In grid
6˝
4 7/8˝
1 3/4˝
End view – 9/16" Tegular grid
6˝
2 1/8˝
1 1/8˝
6˝
1 3/4˝
5 3/8˝
6˝
2 1/8˝
1 1/8˝
6˝
2 1/16˝
5 3/8˝
4 7/8˝
