Assembly Instructions for NewAge Bold Series VersaShelf (40001)

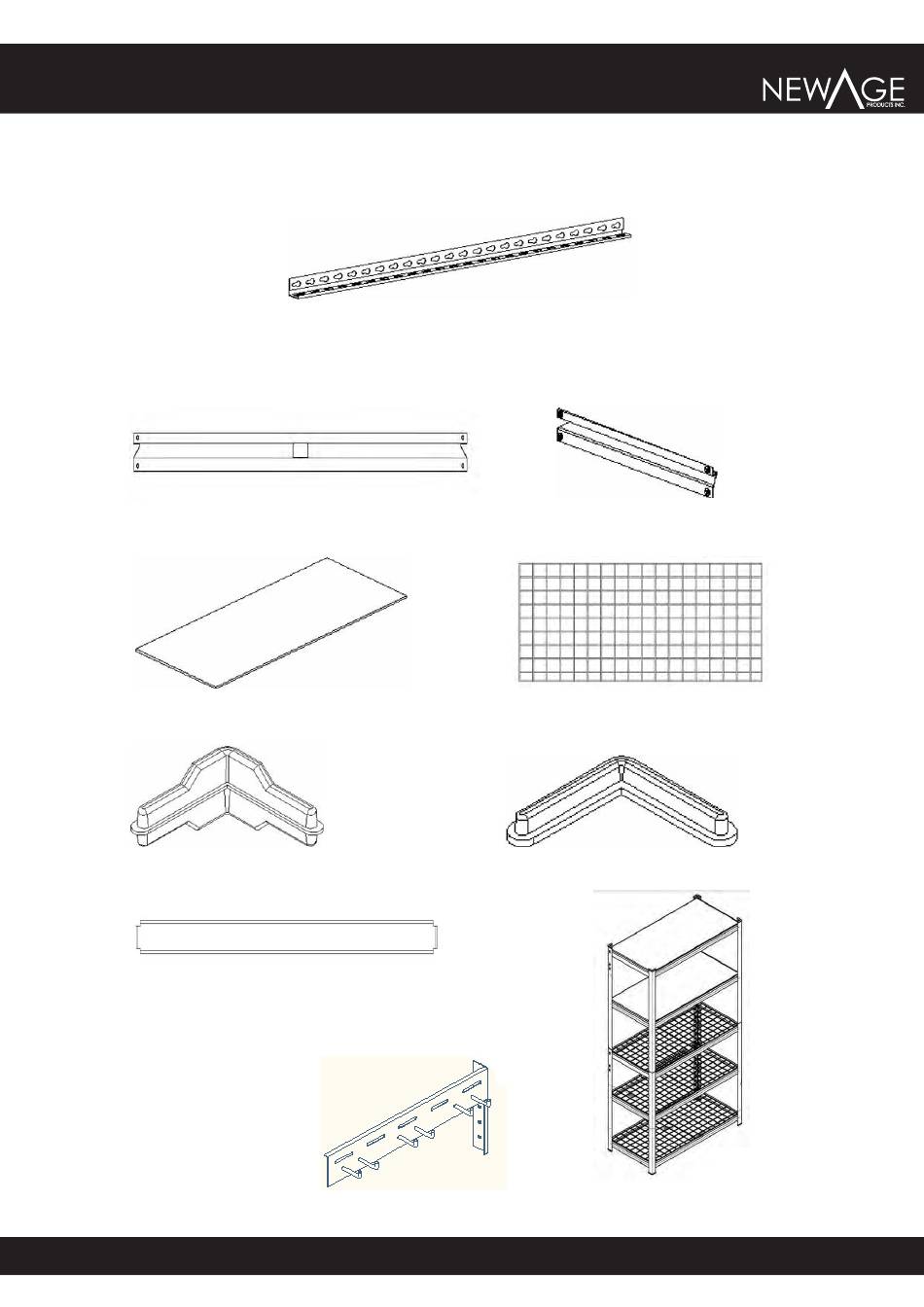

Parts List

B-Long Z-beam (10-ea.) L900mm
D- Wooden Board (2-ea.) L895*W435mm
F-Post Inserts (4-ea.)(Used on Storage Rack)
H-Supporting Bar (5-ea.) L395mm
2 x SIDE BRACKETS
Mounting Hardware:
4 x Lag Bolts
4 x Washers
, www.newageProducts.com
?
need more information
try
A-Angle Post (8-ea.) H912mm
(#1: three keyholes shown in outside, 2pcs)
(#2: no keyholes shown in outside, 6pcs)
C-Short Z-beam (10-ea.) L421mm
E-Wire Grid (3-ea.) L895*W435mm
G-Post Cap (8-ea.)
Whole Assembly(L36''xW18''Xh72'')
1 877 306 8930
or
for answers to commonly asked questions
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bold Series VersaShelf and is the answer not in the manual?

Questions and answers

Summary of Contents for NewAge Products Bold Series VersaShelf

  • Page 1 Install InstructIons NewAge Products Assembly Instructions for NewAge Bold Series VersaShelf (40001) Parts List A-Angle Post (8-ea.) H912mm (#1: three keyholes shown in outside, 2pcs) (#2: no keyholes shown in outside, 6pcs) B-Long Z-beam (10-ea.) L900mm C-Short Z-beam (10-ea.) L421mm D- Wooden Board (2-ea.) L895*W435mm...
  • Page 2 Products Inc. Panel and accessory warranty 10 year limited manufacturer warranty Tools Required Rubber Mallet or Hammer. Caution 1. Keep Small Children Clear during Assembly 2. Handle Components with Care due to Sharp Edges Helpful Hints 1. Use a cloth or wooden block to protect the components when hammering.
  • Page 3 Products Inc. Panel and accessory warranty 10 year limited manufacturer warranty Assembly 1. Unpack the unit and confirm that you have all the parts listed. Start the end assembly by joining a Short Beam (Part C) into the two bottom keyholes of an Angle Post (Part A #2 ).
  • Page 4 Products Inc. Panel and accessory warranty 10 year limited manufacturer warranty 6. Repeat last step for the opposite side Top End Assembly. Notes: Must ensure 2pcs Part A #1 be put into a counterpart place. That means if you put one Part A #1 in the LEFT of the FRONT Side of the Top End Assembly, you must put another Part A #1 in the RIGHT of the FRONT Side of the Top End Assembly.
  • Page 5 Products Inc. Panel and accessory warranty 10 year limited manufacturer warranty 12. Proceed to add two additional Long Beam (Part B) to top keyholes of the Angle Post (Part A) as shown in Diagram 6. Install the beams in the upright position. Assure...
  • Page 6 Products Inc. Panel and accessory warranty 10 year limited manufacturer warranty 15. Insert the Post Caps (Part G) on top and bottom of the Angle Posts (Part A), as shown in Diagram 9. 16. Clip the side brackets into place as per the diagram below.
  • Page 7 Products Inc. Panel and accessory warranty 10 year limited manufacturer warranty 17. For extra stability and to reduce the risk of tipping, you may mount the entire unit to the wall by using the provided mounting screws. a. Using a stud finder locate the studs in the wall where the rack is to be placed.
