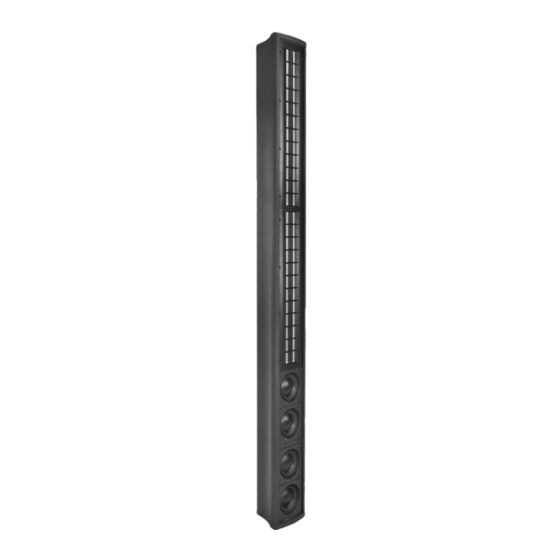

Bi-amplified on-wall two-way planar magnetic loudspeaker
Hide thumbs Also See for Sage L75m:

Advertisement

Quick Links

Owner's Manual
Sage L75m
Bi-amplified On-Wall
Two-way Planar Magnetic Loudspeaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sage L75m and is the answer not in the manual?

Questions and answers

Summary of Contents for Wisdom Sage L75m

  • Page 1 Owner’s Manual Sage L75m Bi-amplified On-Wall Two-way Planar Magnetic Loudspeaker...
  • Page 2: Table Of Contents

    DOCUMENT CONVENTIONS This document contains general safety, installation, and operation instructions for the Wisdom Audio Sage L75m Loudspeaker. It is important to read this document before attempting to use this product. Pay particular attention to: WARNING: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in injury or death.
  • Page 3: Introduction

    We recognize that setting up a Wisdom Audio system can be a bit more involved than connecting a common set of loudspeakers, which is why we recommend that our systems be engineered and...
  • Page 4 When you become accustomed to the sound of your new Sage L75m speakers, conventional speakers sound a bit bland and lifeless. You may also discover yourself hearing details at even modest levels on the Sage L75m that were previously inaudible even at loud volumes on more conventional speakers.
...
  • Page 5 One of Wisdom Audio’s strengths is in seamlessly blending these technologies – particularly important given the high standards set by our planar magnetic drivers.
  • Page 6 By contrast, the Wisdom Series L75i speakers radiate sound as a “line source”. The sound moves into the room as an expanding cylinder, rather than as an expanding sphere – as though from a vertical line suspended in space. Line source speakers provide two significant advantages: •...
  • Page 7: Unpacking And Installing The Sage L75Mm

    Unpacking and Installing the L75m The Wisdom Audio Sage L75m freestanding speaker is a substantial piece of equipment. Please exercise caution when unpacking your L75m to ensure that you do not strain yourself from its (perhaps unexpected) weight. CAUTION: Do not attempt to lift your L75m while bending or twisting from the waist.
  • Page 8 Rotate the mounting bracket back over the E-Z Toggles, insert the screw and continue to turn until fastened tightly. The screw stops when the toggle bar secures itself against the opposite side of the drywall (inside the wall). Repeat for each anchor location. SAGE L75m WISDOMAUDIO.COM...
  • Page 9: Making The L75M Connections

    (such as a short- circuit). Two sets of speaker wires are required for each Sage L75m loudspeaker: one for the woofer (low pass) section, and a separate one for the planar magnetic (high pass) section that handles the midrange and treble.
  • Page 10: Care & Maintenance

    Wisdom Audio SA Series amplifiers, and the high-pass section going to additional SA Series amplifiers, which will drive the planar magnetic panels.
  • Page 11 The warranty will not apply to any Wisdom Audio products that has been misused, abused, altered, or installed and calibrated by anyone other than an authorized Wisdom Audio dealer.
  • Page 12: Obtaining Service

    Wisdom Audio for further service information or parts, or to obtain a Return Authorization. The Wisdom Audio Service Department works closely with your dealer to solve your service needs expediently.
  • Page 13: Specifications

    • Power handling, continuous: 200w • Dimensions: See appropriate dimensions drawings on next page • Shipping weight, each: 69 lbs. (31 kg) For more information, see your Wisdom Audio dealer or contact:
 Wisdom Audio
 1572 College Parkway, Suite 164 Carson City, NV 89706 wisdomaudio.com...
  • Page 14: Dimensions

    L75m Dimensions SAGE L75m WISDOMAUDIO.COM...
  • Page 15 WISDOM and the stylized W are registered trademarks of Wisdom Audio. Wisdom Audio
1572 College Parkway, Suite 164 Carson City, Nevada 89706 USA (775) 887-8850 (775) 887-8820 wisdomaudio.com Sage L75m OM © 11/2021 Wisdom Audio, Inc. All rights reserved. Printed in U.S.A.
