- Page 1 Owner’s Manual Sage Cinema Series Line 4 Quad-amplified Coaxial Planar Magnetic Loudspeaker...
-
Page 2: Table Of Contents
Line 4 Dimensions ................16 DOCUMENT CONVENTIONS This document contains general safety, installation and operation instructions for the Wisdom Audio Sage Cinema Series Line 4 loudspeakers. It is important to read this document before attempting to use this product. Pay particular attention to: WARNING: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in injury or death. -
Page 3: Introduction
SC-2/SC-3System Controller, without which these speakers will not perform correctly. While we expect your local Wisdom Audio dealer to take care of the setup and calibration of the system, we still recommend that you at least briefly review this and the other manuals (SC-2/SC-3, RTL subwoofers) to understand the system’s full... -
Page 4: Overview
Overview Your Sage Cinema Series Line 4 loudspeakers take advantage of several critical technologies to deliver a level of performance that has never been available in a loudspeaker that intruded so modestly on your living space. In fact, this level of performance has rarely been attained, regardless of the space and budget at one’s disposal. - Page 5 It simply makes more sense to use the best transducer technology in each area of the reproduced spectrum. One of Wisdom Audio’s strengths is in seamlessly blending these technologies — particularly important given the high standards set by our planar magnetic drivers.
- Page 6 Instead, it creates a series of point sources, which end up interfering with each other). With Wisdom Audio’s planar magnetic technology, it becomes possible to have drivers that are extremely tall and slim.
-
Page 7: Unpacking & Installing The Line 4

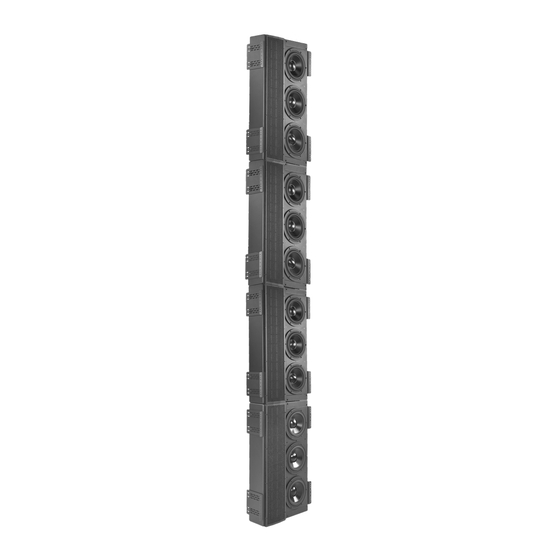

Unpacking & Installing the Line 4 Each module of the Wisdom Audio Sage Cinema Line 4 speaker is a substantial piece of equipment. Please exercise caution when unpacking your Sage Cinema speakers to ensure that you do not strain yourself from its (perhaps un-expected) weight. - Page 8 Proper Planar Placement for front L&R and Rear Surrounds When using the Line 4 for front L&R and or Rear Surrounds the planar drivers should always be placed on the inside as shown below in a front screen wall LCR example.
- Page 9 simplest way to do this is to frame in around the speaker locations so there is only an inch or two of space between the speakers and the surrounding studs. If you are building the walls anyway, the incremental cost of a few extra studs is small.
- Page 10 When using an external active crossover like the Wisdom Audio SC-2/3, four sets of speaker wires are required for each Sage Cinema Line 4 loudspeaker: two pair for the two of the woofer (low pass) sections, and a separate two pair for the planar magnetic (high pass) sections that handles the midrange and treble.
-
Page 11: Your Line 4 And Subwoofers
SC-2/3; following the SC-2/3, the signal is split into low and high sections, with the low section going to one or more Wisdom Audio SA Series amplifiers, and the high section going to additional SA Series amplifiers, which will drive the planar magnetic panels. -
Page 12: Care & Maintenance
Care & Maintenance To remove dust from the front of your Line 4, use a feather duster or a lint-free soft cloth. To remove stubborn dirt and fingerprints from the grille, we recommend isopropyl alcohol and a soft cloth. Lightly dampen the cloth with alcohol first and then clean the grille of the Line 4 with the cloth. -
Page 13: North American Warranty
Standard Warranty When purchased from and installed by an authorized Wisdom Audio dealer, Wisdom Audio loudspeakers are warranted to be free from defects in material and workmanship under normal use for a period of ten years from the original date of purchase. -
Page 14: Obtaining Service
If your Wisdom Audio loudspeaker must be serviced, please contact your dealer. Your dealer will then decide whether the problem can be remedied locally, or whether to contact Wisdom Audio for further service information or parts, or to obtain a Return Authorization. The Wisdom Audio Service Department works closely with your dealer to solve your service needs expediently. -
Page 15: Specifications
• Dimensions: see appropriate dimensions drawings on next page • Shipping weight, each: 168 lbs. (76 kg) • Net weight, each: 148 lbs. (67 kg) For more information, see your Wisdom Audio dealer, or contact: Wisdom Audio 1572 College Parkway, Suite 164 Carson City, NV 89706 www.wisdomaudio.com... -
Page 16: Line 4 Dimensions
Line 4 Dimensions... - Page 17 WISDOM and the stylized W are registered trademarks of Wisdom Audio. Wisdom Audio1572 College Parkway, Suite 164 Carson City, Nevada 89706 USA Telephone: 775.887.8850 Fax: 775.887.8820 www.wisdomaudio.com Line 4OM-2.0 © 4/12/018 Wisdom Audio, Inc. All rights reserved. Printed in U.S.A.
