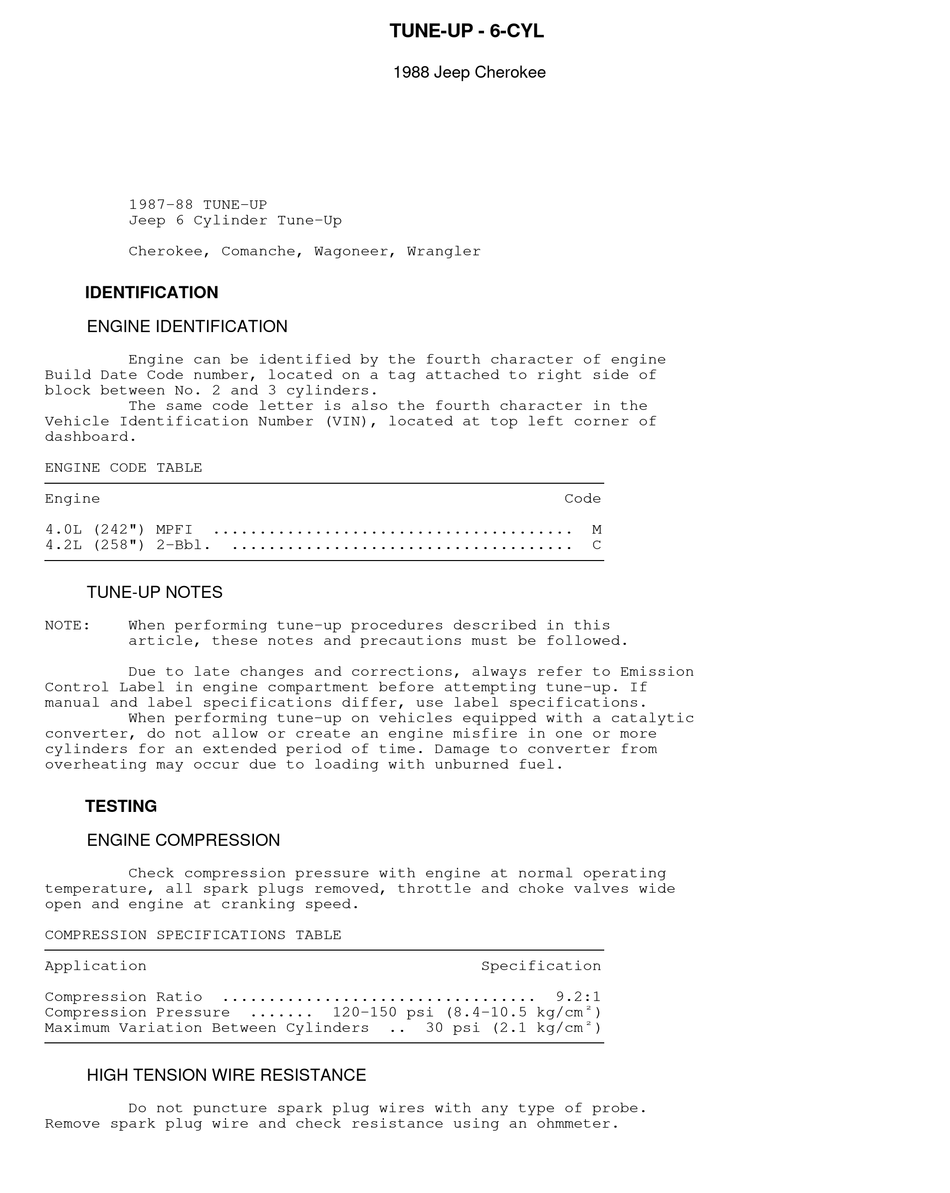

1987-88 TUNE-UP
Jeep 6 Cylinder Tune-Up
Cherokee, Comanche, Wagoneer, Wrangler
IDENTIFICATION
ENGINE IDENTIFICATION
Engine can be identified by the fourth character of engine
Build Date Code number, located on a tag attached to right side of
block between No. 2 and 3 cylinders.
The same code letter is also the fourth character in the
Vehicle Identification Number (VIN), located at top left corner of
dashboard.
ENGINE CODE TABLE
¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡
Engine
4.0L (242") MPFI
4.2L (258") 2-Bbl.
¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡
TUNE-UP NOTES
NOTE:
When performing tune-up procedures described in this
article, these notes and precautions must be followed.
Due to late changes and corrections, always refer to Emission
Control Label in engine compartment before attempting tune-up. If
manual and label specifications differ, use label specifications.
When performing tune-up on vehicles equipped with a catalytic
converter, do not allow or create an engine misfire in one or more
cylinders for an extended period of time. Damage to converter from
overheating may occur due to loading with unburned fuel.
TESTING
ENGINE COMPRESSION
Check compression pressure with engine at normal operating
temperature, all spark plugs removed, throttle and choke valves wide
open and engine at cranking speed.
COMPRESSION SPECIFICATIONS TABLE
¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡
Application
Compression Ratio
Compression Pressure
Maximum Variation Between Cylinders
¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡
HIGH TENSION WIRE RESISTANCE
Do not puncture spark plug wires with any type of probe.
Remove spark plug wire and check resistance using an ohmmeter.
.......................................
.....................................
..................................
.......
120-150 psi (8.4-10.5 kg/cm
TUNE-UP - 6-CYL
1988 Jeep Cherokee
Specification
..
30 psi (2.1 kg/cm
Code
M
C
9.2:1
¢
)
¢
)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cherokee 1988 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jeep Cherokee 1988

  • Page 1 TUNE-UP - 6-CYL 1988 Jeep Cherokee 1987-88 TUNE-UP Jeep 6 Cylinder Tune-Up Cherokee, Comanche, Wagoneer, Wrangler IDENTIFICATION ENGINE IDENTIFICATION Engine can be identified by the fourth character of engine Build Date Code number, located on a tag attached to right side of block between No.
  • Page 2: Spark Plugs

    D1-5 and D1-6. Be sure to pinch off the fuel return line or most of the fuel will be returned to the fuel tank. Fig. 1: Fuel System Pressure Test Components Courtesy of American Motors/Jeep Corp. 4.2L Perform fuel pump test with air cleaner removed and fuel...
  • Page 3 inlet line or filter disconnected at carburetor. Disconnect fuel return line at fuel filter and plug nipple on filter. Make all tests at idle speed. See FUEL PUMP SPECIFICATIONS TABLE. FUEL PUMP SPECIFICATIONS TABLE ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ Application Pressure Volume...
  • Page 4 Fig. 2: 4.0L & 4.2L Timing Marks & Firing Order Magnetic probe located at 9.5 degrees ATDC on 4.2L. IGNITION TIMING (4.0L) Information not available from manufacturer. IGNITION TIMING (4.2L) NOTE: Engines are equipped with a receptacle for a magnetic probe timing light, located 9.5 degrees ATDC.
  • Page 5 wires connected to switch). Disconnect distributor vacuum advance hose and connect hose to vacuum switch. Disconnect wire connector from knock sensor, located in cylinder head. 3) Using a jumper wire, ground knock sensor wire connector to engine block. Start engine. With engine at idle speed (solenoid energized), check timing.
  • Page 6 Fig. 4: Installing Air Stepper Motor Exerciser Courtesy of Chrysler Motors. 3) Install Air Stepper Motor Exerciser (Ele.CT01) on the air stepper motor connector. See Fig. 4. Install the Red terminal of the air stepper exerciser on the positive battery post and the Black terminal on the negative battery terminal.
  • Page 7 Fig. 5: Adjusting Idle RPM Courtesy of Chrysler Motors. 6) Adjust idle RPM screw to obtain idle speed of 750F50 RPM. Once correct idle RPM is obtained, seal the welch plug cavity with RTV sealant. Reconnect air stepper motor and TPS. 4.2L 1) Warm engine to normal operating temperature.
  • Page 8 See VACUUM ACTUATOR & SOLENOID IDLE (RPM) table. Reconnect solenoid connector and vacuum hose. CURB IDLE SPEED (RPM) TABLE - 4.2L ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ Application Man.
  • Page 9: Throttle Position Sensor (Tps)

    or vehicle fails emissions testing. IDLE MIXTURE (TACHOMETER (LEAN DROP) PROCEDURE) NOTE: On 4.2L engines, ensure idle speed and timing are set prior to adjusting the idle mixture. If mixture adjustment time exceeds 3 minutes, run engine at 2000 RPM in Neutral for one minute, and resume adjustment.
  • Page 10 2) Hold throttle plate in the closed throttle position against idle stop and note input voltage reading. Input voltage should be approximately 5.0 volts. 3) Disconnect positive lead from terminal "A" and connect to terminal "C" to check output voltage. Output voltage should be checked with throttle plates fully closed.
  • Page 11: Ignition Coil

    (1) - Information not available from manufacturer. ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ IGNITION COIL IGNITION COIL OUTPUT TABLE @ 1000 RPM ¡...
  • Page 12 Draw @ 12 Volts Amp Output Standard ..(1) 4.0-5.0 Amps ....Optional ..(1) 4.0-5.0 Amps ....Optional ..(1) 4.0-5.0 Amps ....£ £ (1) - At 80 F (27 ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ALTERNATOR REGULATORS All models use Delco-Remy solid state regulators, integral with alternator.
  • Page 13 Optional ......20 gals. (76L) Comanche Standard ......16 gals. (60L) Optional ......23.5 gals. (89L) Wrangler Standard ......15 gals. (57L) Optional ......20 gals. (75L) Manual Transmission ........7.8 pts. (3.7L) ........7.4 pts. (3.5L) BA 10/5 ........ 3.5 pts.
