1988 BRAKES
Jeep - Brake System Bleeding
Cherokee, Comanche, Grand Wagoneer, Wagoneer, Wrangler
BRAKE SYSTEM BLEEDING
Hydraulic system bleeding is necessary any time air has been
introduced into system. Bleed brakes at all 4 wheels if master
cylinder lines have been disconnected or master cylinder has run dry.
Bleed brakes with vacuum bleeding equipment, pressure bleeding
equipment or by manually pumping brake pedal while using bleeder
tubes. Always bleed brake lines in sequence. See BLEEDING SEQUENCE
table.
MASTER CYLINDER BLEEDING
Bench Bleeding
1) Master cylinder must be bled before installation to
prevent excessive amounts of air from entering the brake system,
creating poor brake operation.
2) Place master cylinder in soft-jawed vise. DO NOT tighten
vise enough to damage master cylinder. Install bleeder tubes in both
outlets of master cylinder. See Fig. 1.

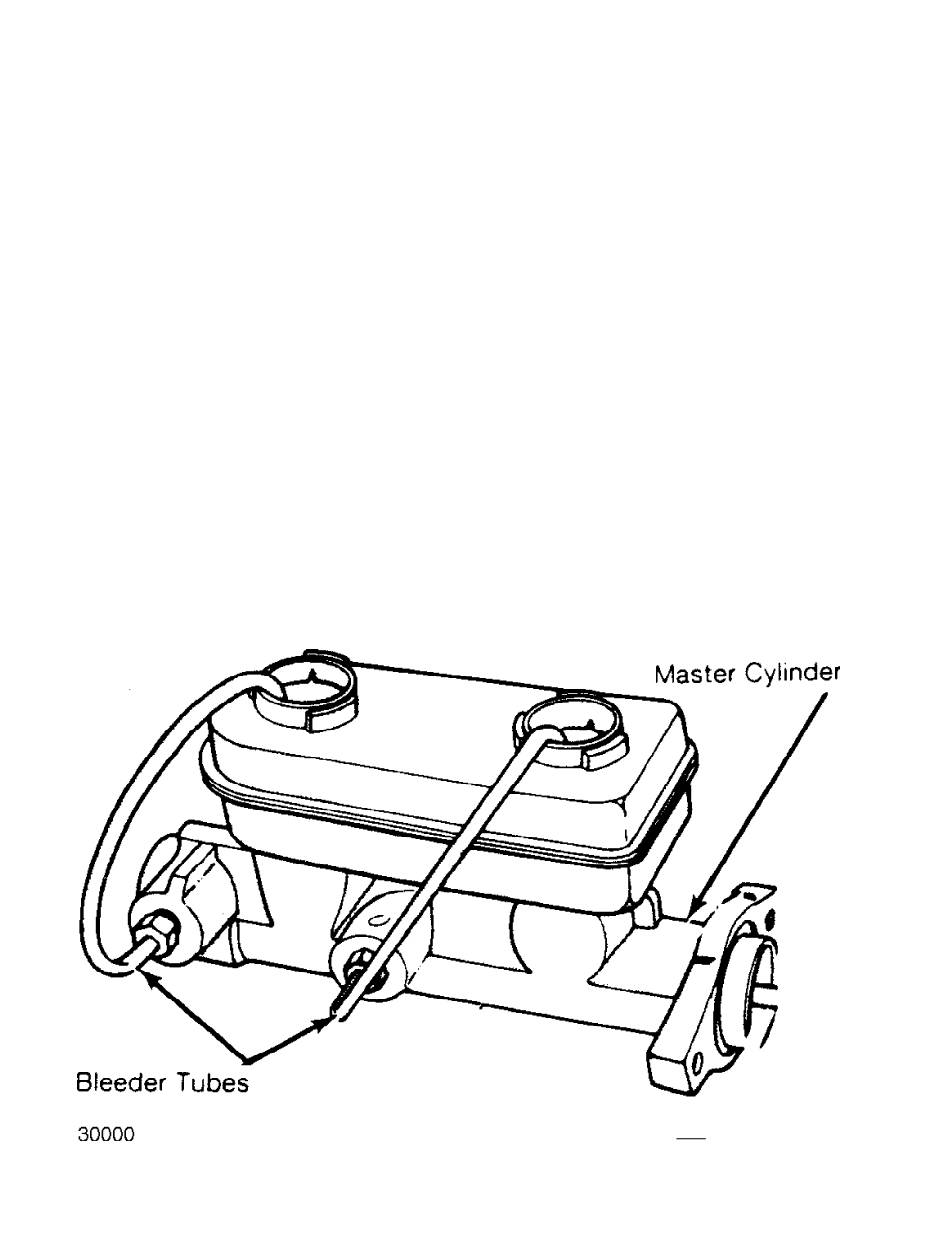

Fig. 1:
Bleeding Master Cylinder
Courtesy of American Motors/Jeep Corp.
3) Fill master cylinder with clean brake fluid that meets DOT
3 specifications. Ensure that the end of bleeder tubes are submerged
BRAKE SYSTEM BLEEDING
1988 Jeep Cherokee
