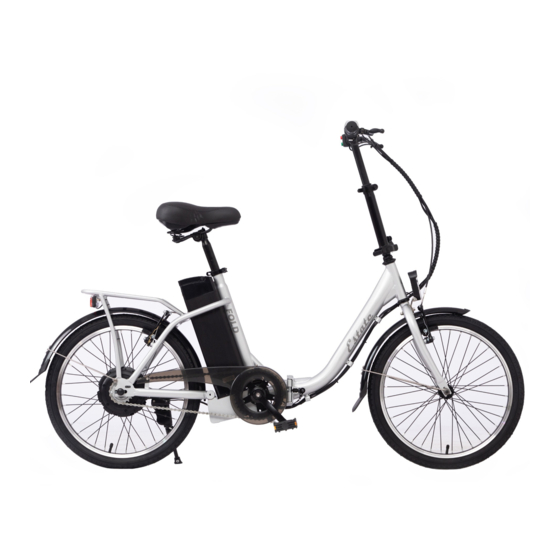

  • Page 1 Electric Folding Bicycle Model Number EST-EFLDBIKE INSTRUCTION MANUAL AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 2 Welcome Congratulations on choosing to buy an ESTATE product. All products brought to you by ESTATE are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.

  • Page 3: Table Of Contents

    10 Getting Started 11 Assembly 16 Battery Charging 17 Instructions 19 FAQs and Troubleshooting Guide 20 Other Useful Information 23 Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...

  • Page 4: Warranty Details

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. YEAR WARRANTY AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...

  • Page 5: General Safety Instructions

    Do NOT ride at night without a headlight, taillight, a white front reflector, a red rear reflector and yellow wheel reflectors. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 6 Charging, cleaning and maintenance should not be performed by children without adult supervision. Do not let children inflate tyres. • Kickstand: The kickstand is designed to support the bicycle only, NOT the rider. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 7 -10 °C to 50 °C. The best temperature range is between 0 °C and 40 °C, too cold or too hot temperatures will affect the battery efficiency and life. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 8 Never leave the bike on charge overnight or with no one to monitor. A damaged battery may overheat and cause a fire. Always unplug the charger from the wall and the battery/bike when fully charged. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...

  • Page 9: Product Overview

    NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. Parts are not necessarily pictured to scale. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...

  • Page 10: Getting Started

    • Tools required for assembly: M6 Allen key and M13/15 wrench (supplied) and a torque wrench set (not supplied). AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...

  • Page 11: Assembly

    (Fig. 2) and open the front frame (Fig. 3). You should be able to hear it click open. Fig. 2 Fig. 3 3. Lock the quick release (Fig. 4). Fig. 4 AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 12 Check and ensure that minimum insertion mark on the handlebar post is completely inserted into the frame and not visible. Then tighten the quick release (Fig. 8). Fig. 7 Fig. 8 AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 13 Torque requirements: 35–40 N·m. NOTE: Both pedals should be tightened towards the front of the bicycle. Start each pedal spindle by hand to avoid stripping the threads. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 14 • Check for tightness by attempting to twist the seat. If the seat is loose, be sure to tighten the clamp nut and binder bolt nut securely. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 15 4. Hold the lever in the pedal, then fold the pedal (Fig. 16). 5. Fold the frame and stem (Fig. 17). Fig. 13 Fig. 12 Fig. 14 Fig. 15 Fig. 17 Fig. 16 AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...

  • Page 16: Battery Charging

    Fig. 18 100%) takes approximate- ly 5 hours. 5. Press the button on the battery. The LED light will be illuminat- ed to show the battery status. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...

  • Page 17: Instructions

    16 km MAX**: May vary depending on the weight of the rider, wind, type of terrain and weather conditions. 100 kg max. HANDLE UNLOCK MAX: 6 km/h AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 18 – Check the chain—ensure it is correctly routed. Clean and relubricate the chain when required. Check for "chain stretch" after extensive cycling WARNING: Failure to perform these checks could result in serious injury to yourself and others. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...

  • Page 19: Faqs And Troubleshooting Guide

    The charger is damaged. purchase from our after sales support centre. Contact our after sales Problems with electrical Other issues support centre for a components. service. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...

  • Page 20: Other Useful Information

    Once the chain tension is acceptable, tighten both nuts fully. • During the whole process please pay attention to the motor cable, do not damage or loosen the cable. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 21 Our after sales support centre stocks spare batteries and chargers for the electric folding bicycle. To purchase a spare part or book a service, please contact the centre on 1300 112 534 or email us at parts@tempo.org. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 22 AS 15194. This marking indicates only to charge the battery for the electric folding bicycle with the supplied battery charger with the model number XVE-2940200. AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...

  • Page 23: Repair And Refurbished Goods Or Parts Notice

    PO BOX 132, Frenchs Forest NSW 1640, Australia Email: info@tempo.org Tempo Help Desk: 1300 112 534 (Aust) (Operating Hours: Mon–Sat 09:00 am to 06:00 pm AEST) YEAR WARRANTY AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
  • Page 24 For an electronic copy of this manual, please contact our after sales support centre. Instruction Manual Revision Index Version No Issue Date Description V1.0 04 June 2021 Original (2021) release V1.1 10 June 2021 Minor updates, page 18 AFTER SALES SUPPORT info@tem po.org 1300 112 534 MODEL: EST-EFLDBIKE PRODUCT CODE: 705770 09/2021...
