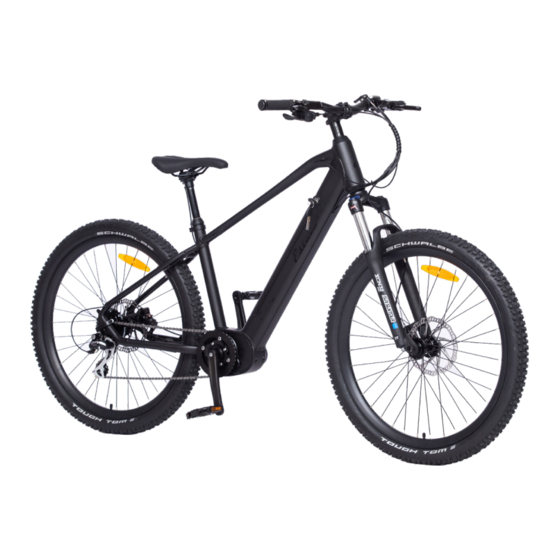

  • Page 1 Electric Mountain Bicycle Model Number EST-EMTB275 INSTRUCTION MANUAL tempo.org/support AFTER SALES SUPPORT 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021 E209...

  • Page 2: Welcome

    Welcome Congratulations on choosing to buy an ESTATE product. All products brought to you by ESTATE are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.

  • Page 3: Table Of Contents

    09 Getting Started 10 Assembly 19 Battery Charging 21 Instructions 25 FAQs and Troubleshooting Guide 27 Other Useful Information 31 Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...

  • Page 4: Warranty Details

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. YEAR WARRANTY AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...

  • Page 5: General Safety Instructions

    • Check the tyre pressure: The tyre pressure range of this bicycle is 160–350 kPa (23-50 psi), which is marked on the tyre. Please ensure that the tyre pressure is within this range to avoid accidents (1 psi = 6.895 kPa). AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 6 We strongly recommend that you disconnect the battery from the bicycle before charging it. If you leave the battery in the bike while it is being charged, then the bicycle MUST be switched off during this process. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 7 • Power cord: Never pull the external flexible cord of the battery charger to disconnect the charger. The external flexible cord of the battery charger cannot be replaced. If the cord is damaged, the charger must be responsibly disposed of. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...

  • Page 8: Product Overview

    NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. Parts are not necessarily pictured to scale. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...

  • Page 9: Getting Started

    To familiarise yourself with all the parts and operating principles of the bicycle, please refer to the Product Overview and the remaining sections in this manual. Also pay attention to the safety instructions on the previous pages. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...

  • Page 10: Assembly

    6. Ensure the brake disc is in the middle of the brake caliper (Fig. 5). It is very important that this is positioned correctly, in order for the front brake to work properly. Fig. 2 Fig. 5 Fig. 4 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 11 (with the brake disc inside of the caliper), otherwise it could damage the brake. • The Estate bike uses hydraulic disc brakes, which over time will require maintenance including bleeding or replacement of the hydraulic fluid and replacement of the brake pads.
  • Page 12 (decrease "SAG"). • Turn the knob counter-clockwise to decrease the preload (increase "SAG"). See page 10 of the SR Suntour manual for more on this setting. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 13 Take care not to over- tighten and damage the handlebar stem, which could cause injury to the rider. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 14 WARNING! If the chain skips or jumps, the rear derailleur may require adjustment - please refer to page 10 of the SHIMANO manual. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 15 • Check for tightness by attempting to twist the seat. If the seat is loose, be sure to tighten the clamp nut and binder bolt nut securely. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 16 On flatter ground and when climbing inclines, having a higher seat is best, as it will allow you to fully extend your legs every time you pedal, so you can achieve maximum speed and power. Fig. 22 Fig. 21 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 17 Torque requirements: 20–26 Nm. NOTE: Both pedals should be tightened towards the front of the bicycle. Start each pedal spindle by hand to avoid stripping the threads. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 18 • It is important to check and adjust the position of the reflectors as you assemble your bike. The reflectors must always be vertical (perpendicular to the ground) and pointed toward the front and rear of the bike. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...

  • Page 19: Battery Charging

    (Fig. 29): Blue: Approximately 75%–100% battery charge Green: Approximately 25%–75% battery charge Red: Approximately 0%–25% battery charge Red flashing: Empty battery, charge immediately Fig. 28 Fig. 29 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 20 Do not charge the battery with any other (or universal) charger, doing so will void the warranty. Do not use this charger to charge any other bike. • Do not leave the battery charging unsupervised. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...

  • Page 21: Instructions

    As this level increases, the amount of power level provided by the motor will increase. Speed Displays the bicycle's current speed in km/h. Odometer/Trip Displays the distance travelled in km. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 22 The indicator will change with the level selected. • Short-press the UP [ ] button to shift up. • Short-press the DOWN [ ] button to shift down. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 23 NOTE: Sometimes, the display may show an error message (such as E08 or ERR-08), in response to a fault. See page 25 for more information on what these messages mean, and how best to fix them. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 24 Please respect the road rules in all circumstances. WARNING: Failure to follow these warnings could result in a fall or accident and permanently and irreversibly damage the condition of the bike. Enjoy your ride! AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...

  • Page 25: Faqs And Troubleshooting Guide

    Contact our after sales Problems with electrical Other issues support centre for a components. service. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 26 Turn off bike while charging Low battery the battery; ideally, detach the battery before [ ERR-08] charging. • If this does not fix the error, call for a service. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...

  • Page 27: Other Useful Information

    Once the chain tension is acceptable, tighten both nuts fully. • During the whole process please pay attention to the motor cable, do not damage or loosen the cable. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 28 Our after sales support centre stocks spare batteries and chargers for the e-bike. To purchase a part or book a service, please contact the centre on 1300 112 534 or email us at parts@tempo.org. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 29 AS 15194. E209 This marking indicates only to charge the battery for the Electric Mountain Bicycle with the supplied battery charger with the model number XVE-4200150. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 30 Contact your local authorities for advice on recycling facilities in your area. Or find recycling scheme services listed on Planet Ark’s website at www.recyclingnearyou.com.au, or call Planet Ark on 1300 733 712. AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...

  • Page 31: Repair And Refurbished Goods Or Parts Notice

    PO BOX 132, Frenchs Forest NSW 1640, Australia Web Support: tempo.org/support Tempo Help Desk: 1300 112 534 (Aust) YEAR WARRANTY (Operating Hours: Mon–Sat 09:00 am to 06:00 pm AEST) AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
  • Page 32 Minor updates, pages 5, 7, 9, 14, 16, 23 and 24 V1.2 20 September 2021 Minor updates, pages 5, 7, 20, 29, and 30 V 1.3 24 September 2021 Minor update, page 16 AFTER SALES SUPPORT tempo.org/support 1300 112 534 MODEL: EST-EMTB275 PRODUCT CODE: 706076 11/2021...
