Estate EST-EMTB275 Quick Start Manual

1
Get Everything Out
Take the bike out of the carton
and carefully remove all foam
protective sheets, cable ties and
cardboard.
Tip: Use scissors to ensure you
don't damage the bike.
2
2A
2B
Get It Together
Use the allen key in the
2C
multipurpose tool to unscrew the
15 mm axle rod.
Position the front wheel in the
fork, then thread the axle rod
through the fork and wheel.
Check that the wheel is equally
spaced between the fork tubes
(2A), then tighten with the allen
key (2B).
Ensure the brake disc is in the
middle of the brake caliper (2C).

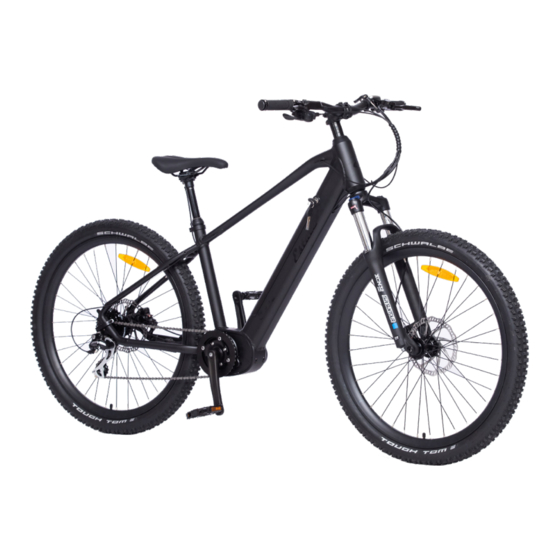

Electric Mountain Bike
3A
3
Stem and Handlebar
Loosen the screws on the stem and remove the stem
cover (3A). Fit the handlebars to the stem, ensuring
they are centred. Replace the stem cover and partially
tighten the screws. Once you're satisfied with its
position, fully tighten the screws (3B).
Tip: If you can move the handlebar forward or
backward, the clamp bolts are not tight enough.
Hit The Brakes
The brakes have already been adjusted, however, if
they require some tweaking, please follow the
instruction manual.
Model: EST-EMTB275
3B
