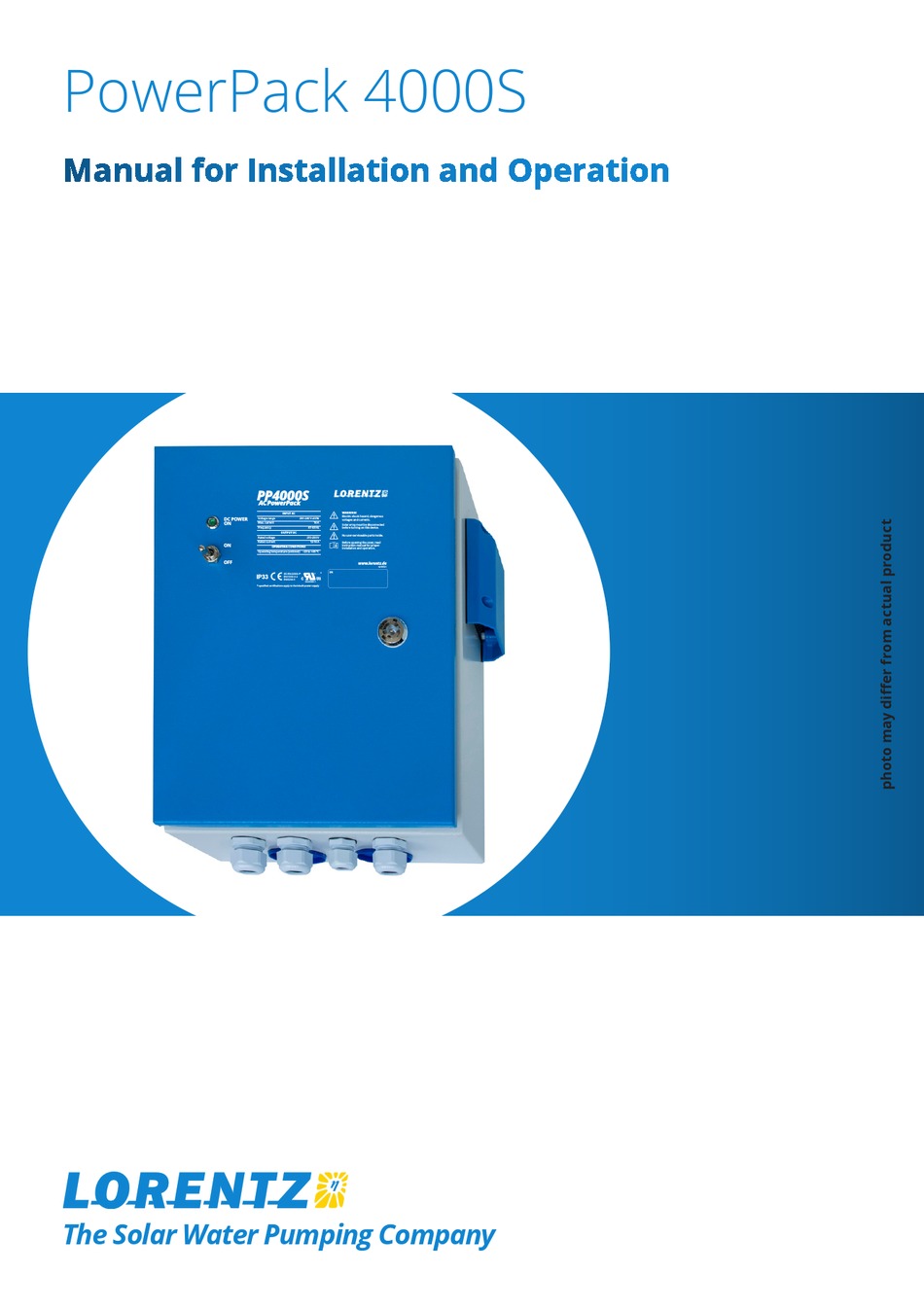

PowerPack 4000S
Manual for Installation and Operation
DC POWER
ON
ON
OFF
The Solar Water Pumping Company
PP4000S
AC PowerPack
WARNING!
INPUT AC
l
Electric shock hazard, dangerous
Voltage range
200-240 V ±10%
voltages and currents.
Max. current
16 A
l
Solar array must be disconnected
Frequency
47-63 Hz
before turning on this device.
OUTPUT DC
a
No user-serviceable parts inside.
Rated voltage
210-250 V
Rated current
12-14 A
O
Before opening the cover, read
instruction manual for proper
OPERATING CONDITIONS
installation and operation.
Operating temperature (ambient)
–20 to +45 °C
www.lorentz.de
v210521
SN
!
IEC/EN 62368-1*
*
IP33
EN 61000-6-2
EN61204-3
UL62368-1
* specifi ed certifi cations apply to the inbuilt power supply
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lorentz PowerPack 4000S
Summary of Contents for Lorentz PowerPack 4000S
- Page 1 PowerPack 4000S Manual for Installation and Operation PP4000S AC PowerPack WARNING! INPUT AC Electric shock hazard, dangerous DC POWER Voltage range 200-240 V ±10% voltages and currents. Max. current 16 A Solar array must be disconnected Frequency 47-63 Hz before turning on this device.
-
Page 2: Safety Instructions
1 Introduction When installing and using the electrical equipment, basic safety precautions should always be followed, Thank you for purchasing a LORENTZ product. including the following: Before you begin – Please check the product label to verify that this is the item you ordered. To ensure the WARNING –... - Page 3 Introduction Personnel qualification and training - All Local accident prevention regulations must be personnel responsible for the operation, observed. All work on the equipment should be done maintenance, inspection and installation must when it is not being operated and ideally electrically be fully qualified and trained.
-
Page 4: Specifications
Specifications 3 Specifications Table 1: Specifications Product Name PowerPack PP4000S Item No. 19-000185 Pump system PS2-4000 AC Input Voltage Single phase 200-240 V AC (±10%) AC Current 20 A / 180 V AC 16 A / 230 V AC* Frequency 47-63 Hz DC Out 210-250 V DC / 12-14 A... - Page 5 Application 4 Application The LORENTZ PowerPack PP4000S allows PS2-4000 The PowerPack can be remotely activated through systems to be powered by an AC power supply its remote-control terminals by means of a separate from the grid or a generator*. Typical uses are for switch or a contact signal.
-
Page 6: Voltage Selection
Application 4.1 Voltage selection WARNING – Before changing power sources, the PowerPack and controller must be switched off and the AC and DC power sources must be disconnected. WARNING – The following feature should only be operated by qualified personnel. Table 2: Optional voltage selection Voltage DC voltage... -
Page 7: Installation
This setting should only be modified by professional personnel and is the user’s own responsibility. sources are disconnected when making LORENTZ recommends keeping the default value and connections to this unit. Follow all provides further technical suggestions in table 2. - Page 8 Installation 5.1 Mounting The PowerPack should be mounted on a wall or panel close to the pump controller in a vertical position. The unit must be protected from direct rainfall and direct sunlight. Fixing pattern for holes: 310 x 292 mm / 12.2 x 11.5 in Product Dimensions for Installation Manual Figure 3: Product dimensions A= 280mm...
-
Page 9: Connection And Wiring
Installation 5.2 Connection and wiring AC Input - Connect AC power to the terminals (L) line and (N) neutral. Before connecting to grid, check that the grid connection is properly protected with a fuse and if required with an ELCB (Earth leakage circuit WARNING - Only one of the power breaker). -
Page 10: Operation
Operation 6 Operation Ensure that only one power source at a time is connected. Connect the AC power source and switch on the PowerPack AFTER it has been connected to the pump controller and DC power has been disconnected. When the controller and the PowerPack are switched on, the system light should flash on the controller and the pump should start. -
Page 11: Troubleshooting
Troubleshooting 8 Troubleshooting Before contacting service personnel with troubleshoorting questions, please follow the steps outlined in table 3. Table 3: Troubleshooting guide No output or LED on Check that the input terminals have been connected to a stable AC supply Check that the bottom switch is in “on”... - Page 12 Sun. Water. Life. www.lorentz.de...
