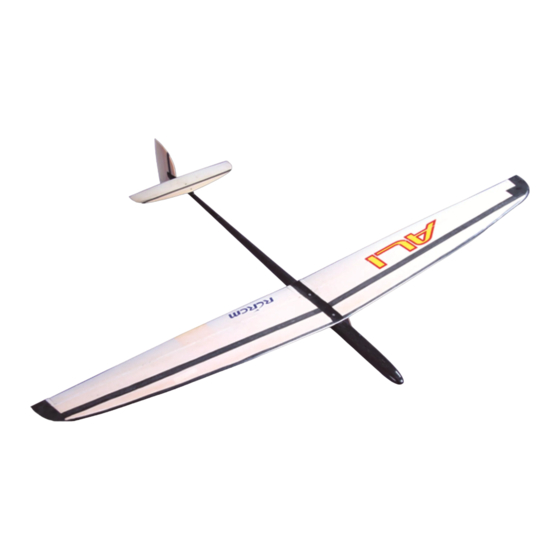

RCRCM DLG Ali Instruction Manual

Download this manual

Unpacking

•

Please unpack the plane carefully making sure that you have retrieved all

of the small parts.

Don't throw the box out until you are 100% sure it's empty!

•

Check that all the parts are supplied.

•

If any are missing please contact your vendor immediately.

•

Instruction Manual

Need help?

Do you have a question about the DLG Ali and is the answer not in the manual?

Page 1 Instruction Manual Unpacking • Please unpack the plane carefully making sure that you have retrieved all of the small parts. Don’t throw the box out until you are 100% sure it’s empty! • Check that all the parts are supplied. •...
Page 2 Wings TWO WAYS TO INSTALL THE AILERON SERVOS INTO THE FUSELAJE WITH PUSH ROD INSIDE USING INTERNAL CONTROL WING HORNS AILERON SERVOS for the aileron control horns use iron rod like the picrture show and bronce tube at the end. make the pushrod using 3 mm carbon tube and iron rod...
Page 3 Wings TRADITIONAL WAY INSTALLING THE SERVOS INSIDE THE WINGS for the aileron control horns use iron rod like the picrture show make the pushrod using 2 mm carbon tube and iron rod...
Page 4 Tail ELEVATOR AND RUDDER Using the 0.4mm push rod wire up 2 staple-shaped torsion springs CUT THE ELEVATOR AND RUDDER FLAPS AS SHOWN ON THE PHOTOS USING ONE SIDE LIKE HINGE CUT AND GLUE THE RUDDER SUPPORT AS SHOWN IN THE PHOTOS AND AFTER THAT, JOIN IT THE RUDDER AL FUSELAGE...
Page 5: Specifications
Specifications: Wing span: 1492mm Length: 1130mm Wing aerofoil: RC series Wing area: 22,9 dm2 Control surface: ailerons, elevator, rudder Fly weight: 290-330g Setting Launch setting Aileron Reﬂex Elevator Rudder Launch CG 60-70 mm Rudder Elevator Launch Soar Break...
