TYPHOON Plus Manual

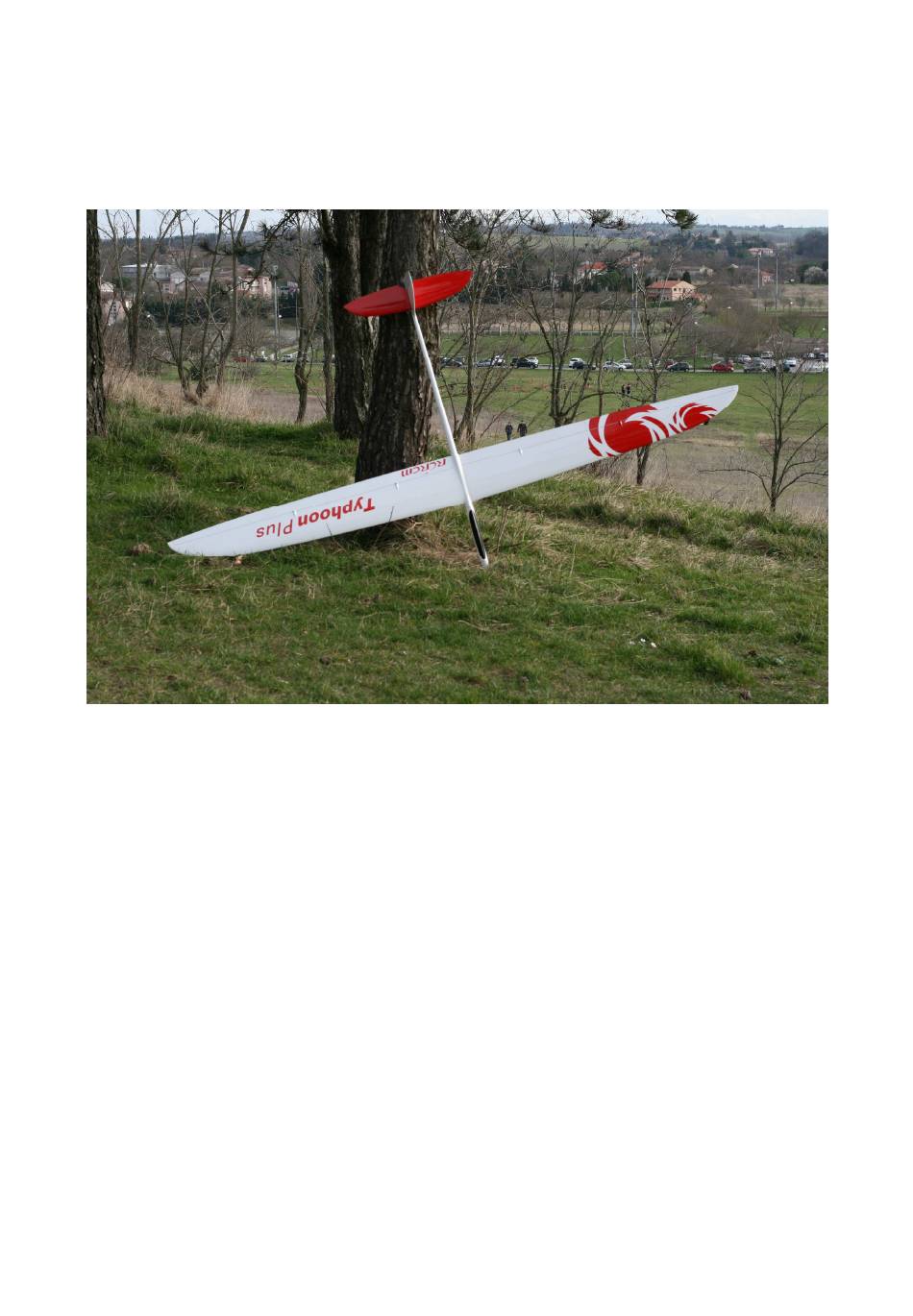

TYPHOON Plus is the big brother of the typhoon 2m. with a wingspan of
2m90, it's a f3f glider. The quality of construction allows it to fly ballast
and go fast without any problem. You have as much fun to fly this
version of the typhoon thanks to its maneuverability and kindness in
flight.
www.modellmarkt24.ch
www.modellmarkt24.ch

Advertisement

loading
Need help?

Need help?

Do you have a question about the TYPHOON Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RCRCM TYPHOON Plus

Summary of Contents for RCRCM TYPHOON Plus

  • Page 1 TYPHOON Plus Manual TYPHOON Plus is the big brother of the typhoon 2m. with a wingspan of 2m90, it’s a f3f glider. The quality of construction allows it to fly ballast and go fast without any problem. You have as much fun to fly this version of the typhoon thanks to its maneuverability and kindness in flight.

  • Page 2: Before Building

    Before building The workspace must be clean and clear. Check the assembly of the different components. It may be that the wing joiner is too tight, It will free after a few flights. If it is too tight sand delicately. On the wings, the job is to:.
  • Page 3 - Glue the servos supports flap and aileron if you use slim wing servos. - Glue the horns of aileron and flap. Pierce delicately spar control surface to increase gluing. www.modellmarkt24.ch www.modellmarkt24.ch...
  • Page 4 Take your time and do several dry installation. Once near, if necessary, to the cyano pointed to test the amplitude control surfaces. Supports servos can be glued with epoxy 5min and the horns will be glued to the cyano or with a mixture of epoxy and silica. -Pass the cables through the holes planned.
  • Page 5 You can now set up the servos caches. The wing is now complete !!! Go to the fuselage !! Typhoon + reclame many centering lead. To save the place, we will be molded the plumb. Take a latex glove, place it on the Typhoon + nose. Fill a plastic cup with plaster and dip the Typhoon + nose.
  • Page 6 To get started easily. First paste the horn rudder. Same as for the wing, don't hesitate to dig the spar and glue the clevis on the carbon rod. The installation of the fuselage has no particular problem. Take the time to reflect on the servos used and their location.
  • Page 7 Depending on the habits you can stick the MPX connectors on the fuselage and wings. The easiest way is to just paste, the safest is to paste only one side. www.modellmarkt24.ch www.modellmarkt24.ch...
  • Page 8 SETTING of the first flight. The settings are a matter of taste. Here is a starting point for a first flight without worry. Control surface movements and CG settings C/G = 102-104 mm from Leading Edge to start. Move back slowly in small increments to further improve control responses.
  • Page 9 Thermal : Flap : 3 mm down Ailerons aligned with flap Butterfly : Flap : as much as possible Ailerons : -6mm Elevator : -8mm (depends on the working range of flaps) CONGRATULATION !!! INSTALLATION IS NOW COMPLETE ! www.modellmarkt24.ch www.modellmarkt24.ch...
  • Page 10 GOOD FLIGHTS !!!!! www.modellmarkt24.ch www.modellmarkt24.ch...
