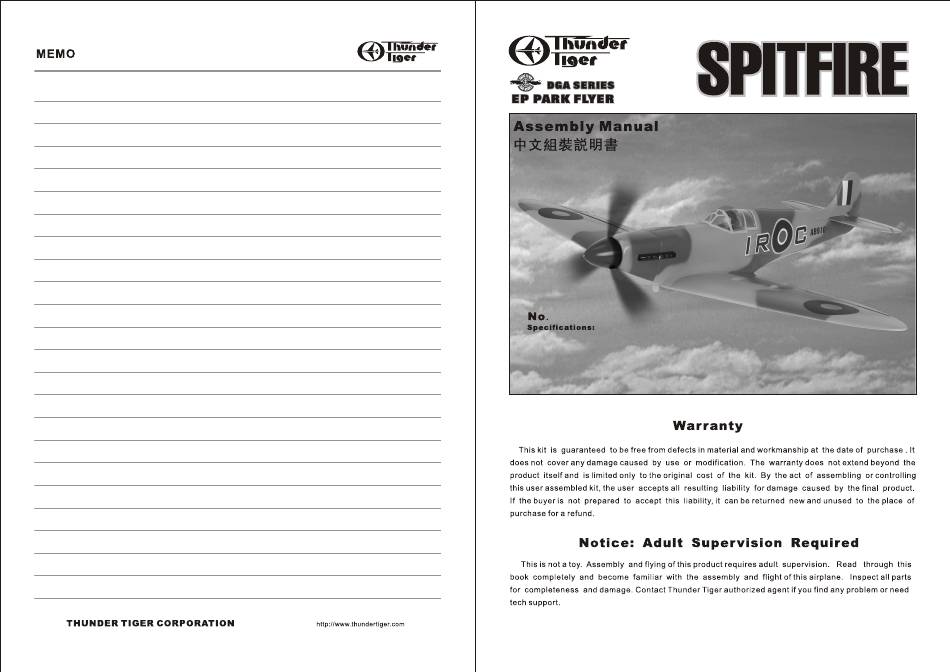

- Page 1 4333 Wing Span : 34" (863.6mm) Length : 28" (708mm) Wing Area : 207.7 sq. in. (13.4dm ) Weight : 16.9oz. (480g) Motor : OBL 29/09-07A recommended JE6877...
- Page 2 A Legend of Royal Air Force !! Thunder Tiger is honored to develop a replica of this great British Wing to all R/C hobbyists alike worldwide. The Spitfire is undoubtedly the most famous and significant British fighter which played a major role in achieving ultimate victory during WWII. Activate this replica at your flying field and experience its outstanding performance.
- Page 3 AS6561 AS6569 Motor Mount I (1) Motor Mount II (1) AS6571 AS6454 AS6562 2.6 26mm Sink Screw (1) AS6570 Washer (1) AS6563 AS6564 AS6565 Engine Exhaust Outlet (2) AS6566 AS6567 AS6568 Radiator Plate (1) Radiator (L/1,R/1)
- Page 4 Locate the battery tray. Insert velcro through the battery tray before epoxying the battery tray in fuselage . 8.Place elevator servo tray in place, but not glue until step 45. Note the orientation of the servo tray. 12.Trim the canopy and apply the frame decal then epoxy the canopy in place.
- Page 5 Cut the indicated lines and bend the elevators for screws. the installation of elevator joiner. Install power unit on the wood motor mount with four 2.6x8 mm wood screws, then secure the adaptor with 3x3 mm set screw. 23.You may use a ball pen to draw hinge line on aileron.
- Page 6 Bottom left wing shown Retainer 24. Carefully flap the aileron to make sure it moves 27.Epoxy the torque rod retainer in place as shown. Do the same procedure on the other wing. freely and the tape is sticky enough to hole the 33.Trim the vacuum formed radiator as shown and glue aileron in place.
- Page 7 2.6 mm 2.6x26mm sink screw. 2.6x26mm 44. Thread the pushrod to the servo horn and secure the servo horn on the servo. Adjust servo tray so the elevator is at the neutral position . Glue the servo tray when satisfied.
-
Page 8: Operation Check
BALANCE OPERATION CHECK 51. Secure main wing fuselage with 3x40mm bolt. Please refer to the box top and apply all decals. S p i t f i r e i s almost ready to fly.Please do the operation check of Spitfire 2-1/16 53mm... - Page 9 t o t e a c h y o u h o w t o f l y t h e S p i t f i r e . L i k e a r e a l P l e a s e c h e c k t h e s a f e c a u t i o n s b e f o r e y o u f l y .
- Page 10 REPAIR 13mm...
