  • Page 1 OUTPUT MANUAL...

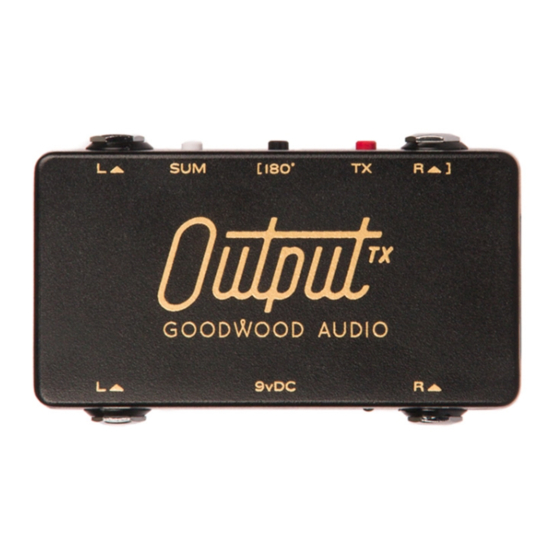

  • Page 2 Left out In: Dual mono Out: True stereo Press in for phase inversion – Right out* † Press in for ground lift – Right out* Right out Left in 9VDC centre negative only – less than 100mA Right in * Ground lift and phase inversion available on TX version only Phase only functional when TX button is pressed in †...
  • Page 3 Press the SUM button to switch between stereo and dual mono. Output features DMS™ which stands for Dual Mode Summing. Unique circuitry, designed by Goodwood Audio, that provides two types of summing, Stereo Sum and Split Sum. The default setting is Stereo Sum.
  • Page 4 Specs Power: 2.1mm barrel, centre negative, 9vDC power only! Less than 100mA Dimensions (incl. all jacks and switches): 112mm wide x 64mm deep x 32mm high Weight: Output – 190 grams Output TX – 200 grams @goodwoodaudio info@goodwoodaudio.com...
