  • Page 1 THE UNDERFACER MANUAL...

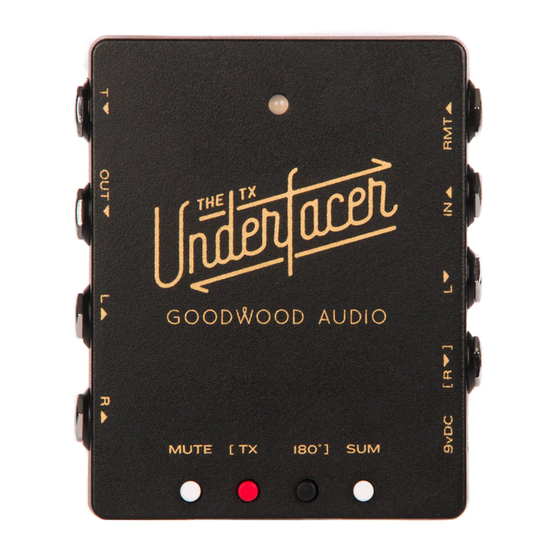

  • Page 2 Tuner send Buffered input Audio out Left out Left in Right out Right in 9VDC centre negative – Master mute 100mA Press in for Press in to sum ground lift – right out* Press in for phase inversion RGB LED – –...
  • Page 3 How to connect The Underfacer. TUNER GUITAR DRY PEDALS (compression, overdrive, boost etc.) STEREO WET PEDALS (delay & reverb etc.) If you have a vintage fuzz or wah, or any pedal that doesn’t like being after a buffer, plug directly into that pedal, and from there go to the input of The Underfacer.
  • Page 4 RMT connected. The Underfacer features DMS™ which stands for Dual Mode Summing. Unique circuitry, designed by Goodwood Audio, that provides two types of summing, Stereo Sum and Split Sum. The default setting is Stereo Sum.
  • Page 5 L output will stay active, but the right (R) output will have no signal. Ground Lift & Phase Correction (The TX Underfacer only) The TX Underfacer features red and black push buttons. Press the red button to lift ground of the R output. Press the black button to invert the phase of the R output by 180°...
  • Page 6 Specs Power: 2.1mm barrel, centre negative, 9vDC power only! Minimum 100mA Dimensions (incl. all jacks and switches): 102mm wide x 120mm deep x 36mm high Weight: The Underfacer – 310 grams The TX Underfacer – 320 grams @goodwoodaudio info@goodwoodaudio.com...
