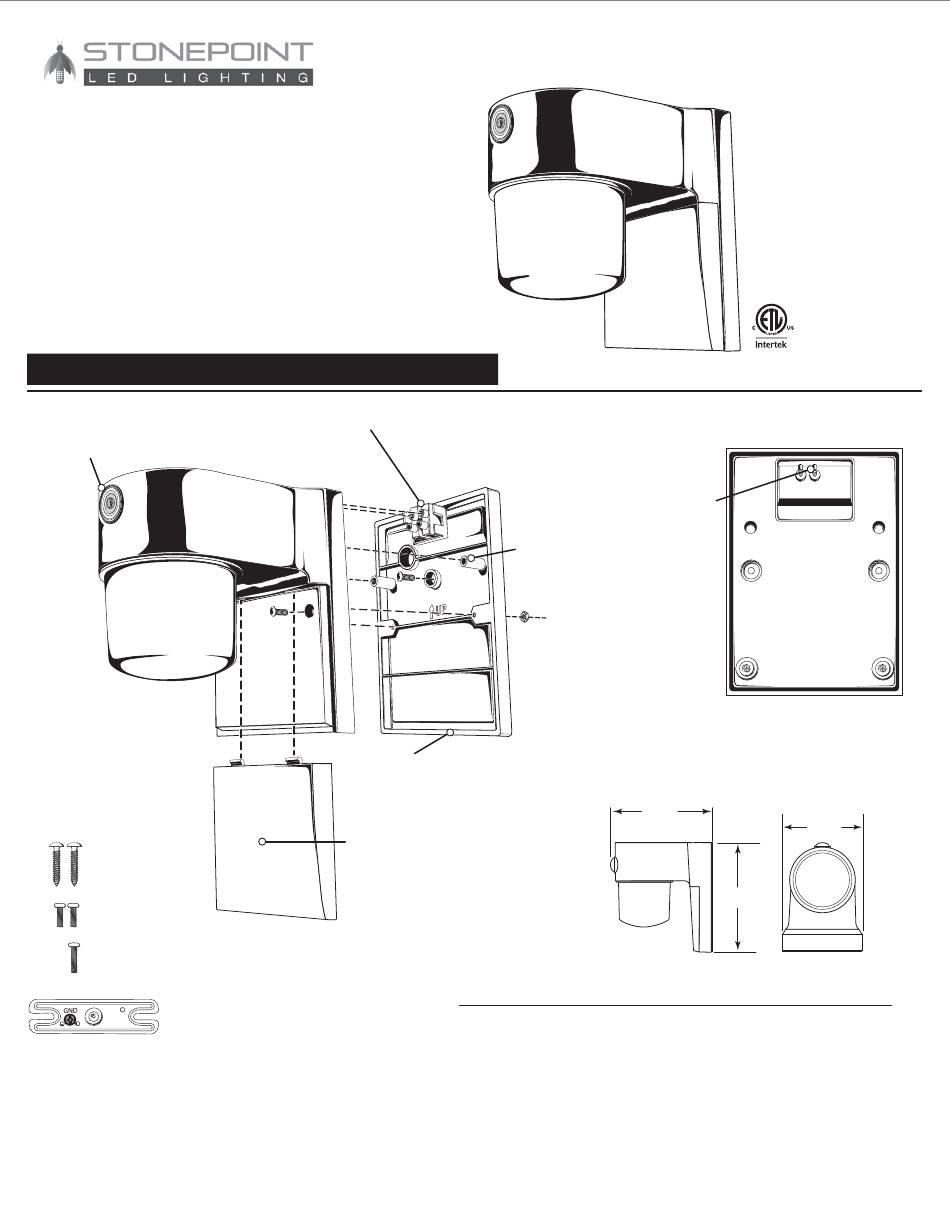

Wall Mount
Security Light
Dusk-to-Dawn
PACKAGE CONTENTS
Dusk-to-dawn
sensor
2x large screws
2x (short)
machine screws
1x (long)
machine screws
Mounting bracket
Mount fixture above 5ft.
Electrical requirements can be found on fixture.
Use with a Minimum 90° supply conductors.
Contact terminals
Mounting plate
Front Access Panel
Tapered posts
LED Facts:
Lumens: 700
Color temperature: 4000K
Efficiency (Lumens per watt): 80
Input Voltage: AC120/60Hz
Rated Watts: 9W
Equivalent: 75W incandescent, 23W CFL
Power Efficiency: 88%
LED Emitter Life: 50,000 hours
Cold start operating temperature: -13° F to 122° F (-25° C to 50° C)
1
MODEL No: JJ-700-DB
Contact pins
5.75 in.
14,6cm
4.5 in.
11,43cm
6 in.
15,24 cm
Revision Date: 03-01-2018
Advertisement
Table of Contents
Related Manuals for StonePoint JJ-700-DB
Summary of Contents for StonePoint JJ-700-DB
- Page 1 MODEL No: JJ-700-DB Wall Mount Security Light Dusk-to-Dawn PACKAGE CONTENTS Contact terminals Dusk-to-dawn sensor Contact pins Tapered posts Mounting plate 5.75 in. 14,6cm 4.5 in. 11,43cm Front Access Panel 2x large screws 6 in. 15,24 cm 2x (short) machine screws...
- Page 2 WARNINGS WARNING: This product may represent a possible shock or WARNING: Do NOT mount on ground. fire hazard if improperly installed or mounted. Products should be installed following these instructions, local electrical codes and/or the current National Electric Code (NEC). WARNING: Use only in 120VAC, 60Hz circuits.
- Page 3 INSTALLATION INSTRUCTIONS Before beginning, disconnect the power to the junction box. If replacing an existing fixture with more than two wire leads, make a note as to where they were connected. 1. Remove mounting plate from back of light. 2. Pull the ends of the supply wires out the front of the junction box.
- Page 4 INSTALLATION (CONTINUED) 7. If the light is functioning properly, place the front access to the fixture housing (Fig. 12). First, angle the two (2) locking tabs at the end of the front access panel into the two square holes behind the diffuser.
