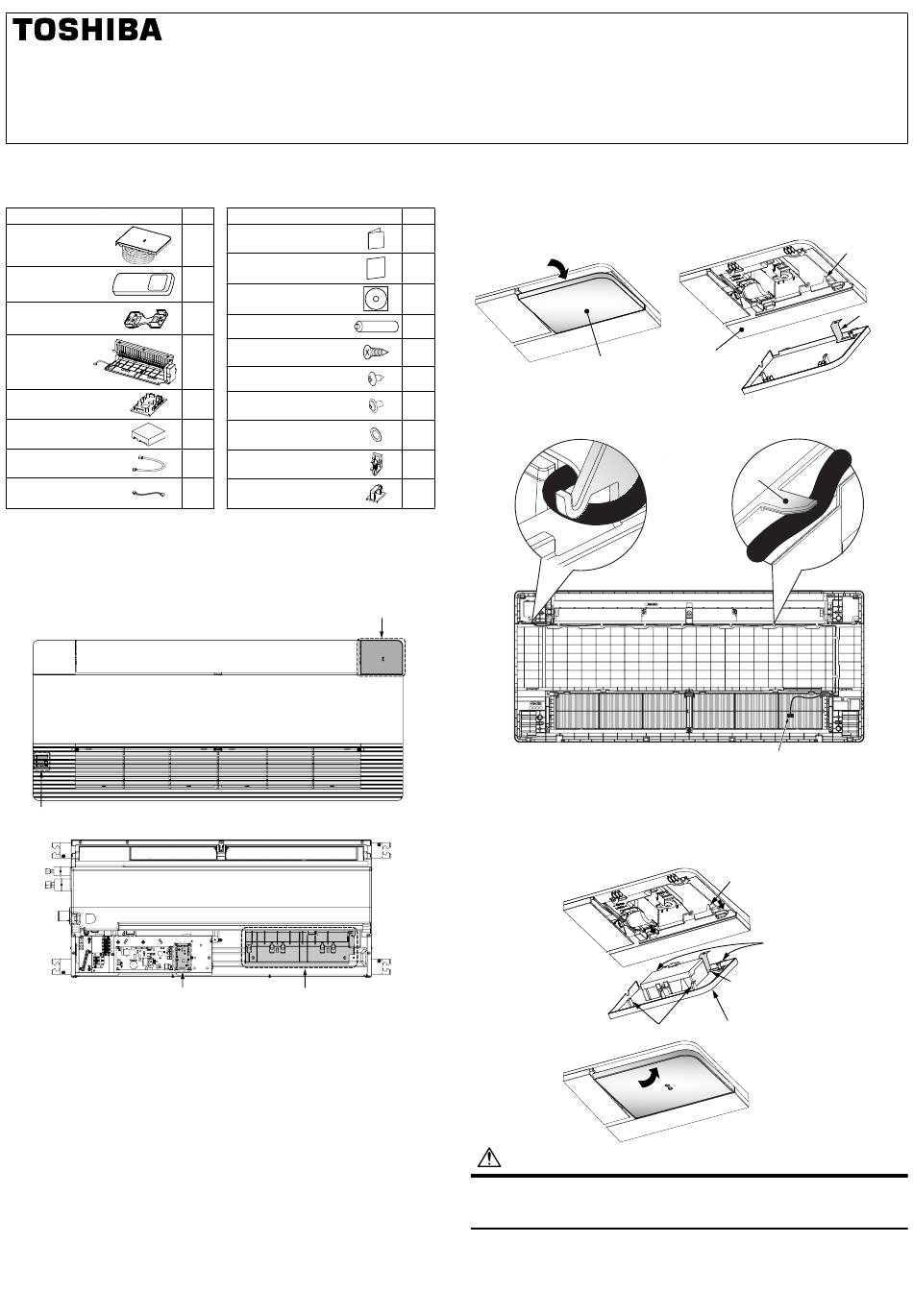

Toshiba TCB-EAPC1UYHP-E Installation Manual

INSTALLATION MANUAL
To Qualified Installer in Installation Work and Service
Air purifier kit
Model: TCB-EAPC1UYHP-E
Observe the safety precautions described in the Installation manual supplied with the
ceiling panel and air conditioner (indoor unit).
Accessories
Part Name
Wireless receiver kit
Wireless remote
controller
Remote controller holder
Air purifi er
Option P.C. board
Dust sensor
Dust sensor cable
UART cable
Installation place
If the panel is already installed onto the indoor unit, remove it from the indoor unit.
For more information about removing the panel, refer to the Panel installation manual.
Dust sensor
Option P.C. board
Settings for the Wireless receiver before installation
Before installing the Wireless receiver, make the following setting referring
to each description.
• To install the wireless remote controller together with wired remote controller,
confi gure the "Multiple remote controller installation".
•
When ceiling height exceeds the standard height (factory default), refer to the
"Installing indoor unit on high ceiling" on installation manual of the indoor unit.
Q'ty Part Name
Operation Manual
1
Installation Manual
(this manual)
1
CD-ROM
1
Battery
Flat head wood screw
Ø3.1 x 16L
1
Steel screw
Ø4 x 8L
Earth screw
1
Ø4 x 10L
Washer
1
Spacer
1
Wire clamp
1
Wireless receiver
Air purifier
•
Thank you for purchasing Air purifi er kit for TOSHIBA air conditioners.
•
Read this manual carefully for correct installation of the Air purifi er kit before starting
work.
•
After the installation is completed, execute a test run to check for normal operation
and explain how to use and maintain the Air purifi er kit to the customer according to
the Operation Manual.
Ask the customer to keep this manual with the Operation Manual.
How to install the Wireless receiver
1.
Remove the adjust corner cap at the corner where the Wireless receiver is to be
installed.
•
Pull the edge of the adjust corner cap in the direction of arrow.
Q'ty
• Remove strap from the pin and detach the adjust corner cap from the ceiling panel.
1
Pull
1
1
2
2
Adjust corner cap
2
1
2.
Wiring the wireless receiver connecting cable through to the clamp in the back side
of the ceiling panel.
1
4
1
3.
Attach the Wireless receiver cap to the ceiling panel.
•
Hook the strap of the Wireless receiver cap securely to the pin.
•
Insert the two claws A of the Wireless receiver cap into the rectangular holes
of the ceiling panel in the direction of arrow.
•
Push the Wireless receiver cap so that the two claws B on the back of the cap are
fi tted.
CAUTION
Press the two claws B of the adjust corner cap fi rmly as far as they will go,
and then check that the adjust corner cap is closely attached.
Failure to do so may result in water leakage.
– 1 –
Ceiling panel
Clamp Clamp
Wireless receiver cable
Pin
Claws A
Strap
Wireless receiver cap
Claws B
Push
Pin
Strap
1-EN
