Summary of Contents for PRO SIGNAL PSG3233

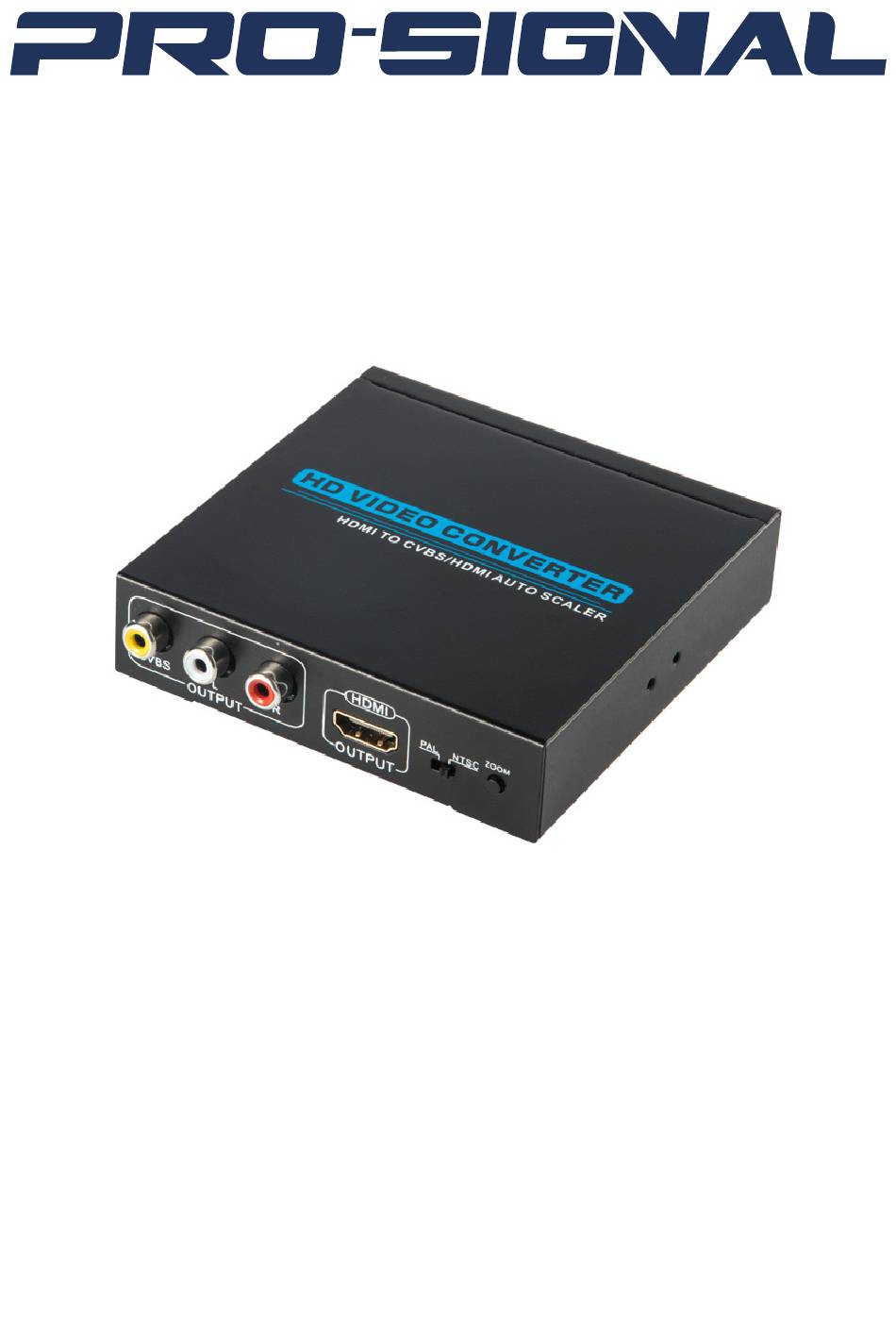

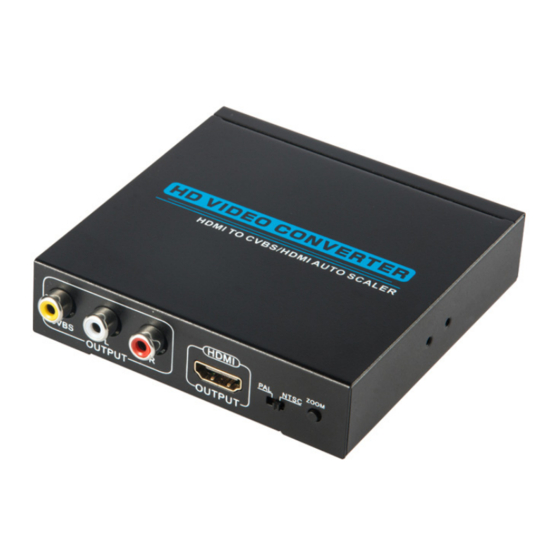

- Page 1 HDMI TO AV+HDMI CONVERTER PSG3233...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 DC/5V..........5V Power Input port LED..........Power Status Indicator HDMI input..........HDMI input port A/V Output......Connect TV or video player HDMI Output........Connect to HD TV Output Format Switch......PAL/NTSC standard Zoom Button........Adjust picture size INSTALLATION • Connect the input source device to the converter using suitable HDMI lead. •...
- Page 4 SPECIFICATIONS Connections Input HDMI Output HDMI & CVBS Output Audio Stereo R/L RCA Supporting Standards Video Standards PAL and NTSC DVI modes 800x600,1024x768,1280x720,1280x1024 and 1920x1080@60hz HDMI modes 480P, 576P, 720P, 1080i, 1080P@60Hz Physical Size (W x D x H) 100 x 102 x 25mm Weight (Net) 23.7g Environmental...
