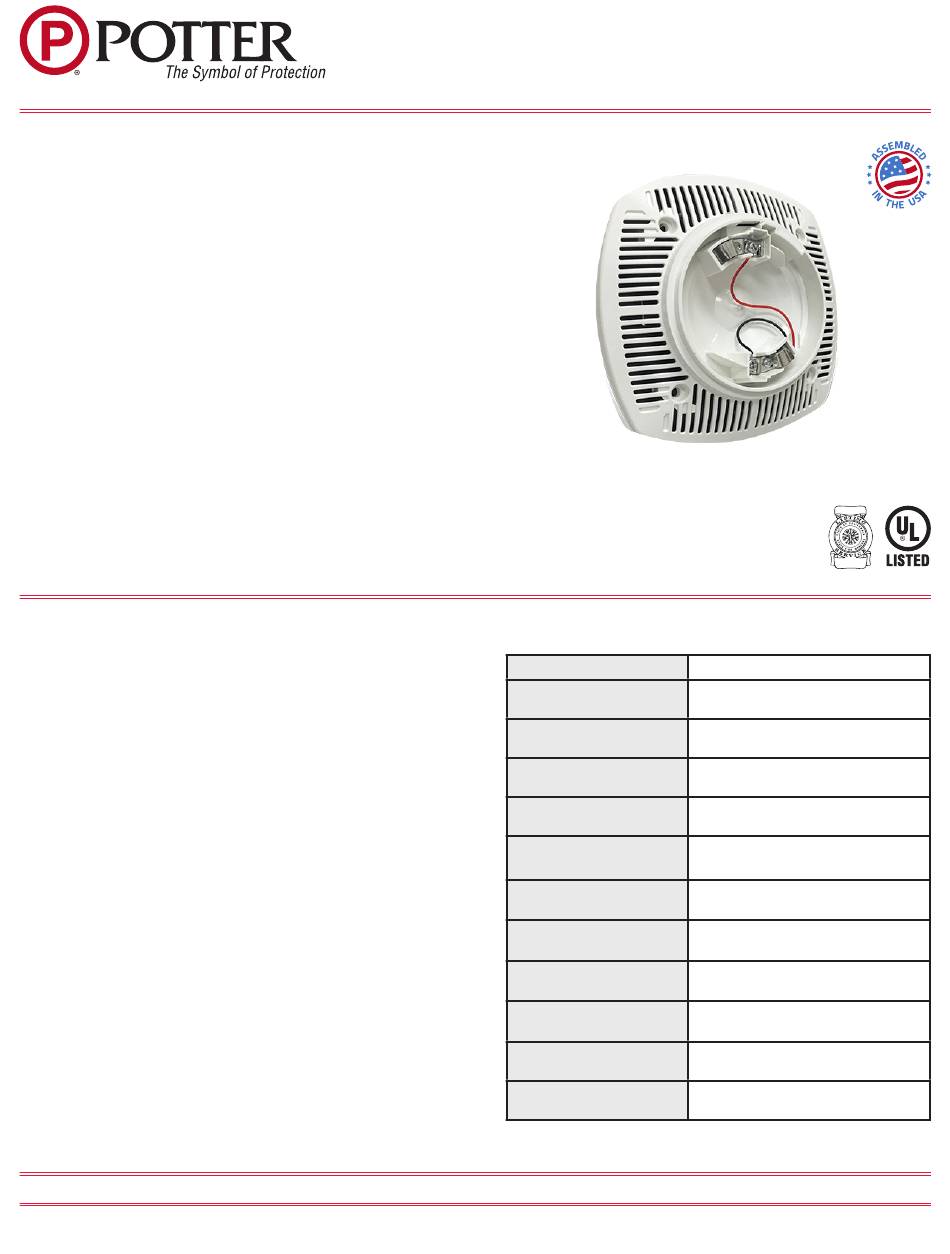

Features
• Speaker voltage 25 or 70.7 VRMs standard, field selectable
• Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• High quality DBA output (intelligible)
• Frequency range 400-4000 Hz
• Suitable for 520 Hz low frequency signaling applications
• Screw terminals, separate in/out wiring (18-12 gauge)
• SLC supports NFPA Class B, A and X wiring
• Tamperproof grill
• Off White Faceplate
• Product includes a 5 year warranty
Description

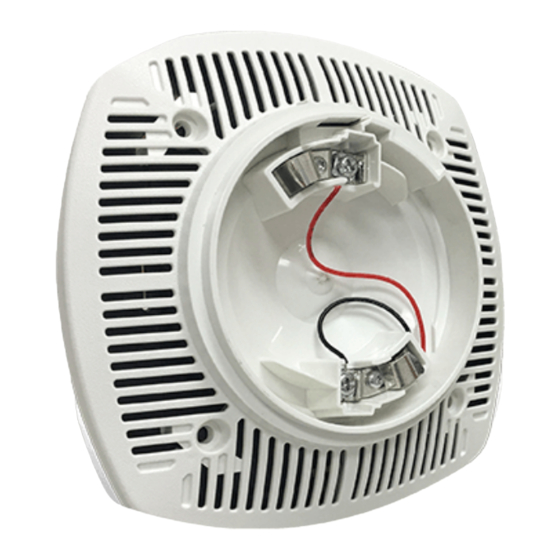

The Speaker Base (PAD100-SPKB) is a wall or ceiling mount
adjustable speaker that may be utilized in a variety of applications.
The speaker is designed to meet code requirements for audio and voice
communications. The PAD100-SPKB offers dependable evacuation
signaling. The PAD100-SPKB provides a 25 or 70.7 VRMs speaker
with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W or 4W.
The frequency range of the PAD100-SKPB is 400-4000 Hz and is
suitable for 520 Hz low frequency tone applications. The base has a
Locking Feature for the sensor that may be used or removed in the field.
The panel will support any combination of sensors or modules on the
SLC. The PAD100-SPKB does not consume an address on the loop.
The PAD100-SKPB can be mounted to a 4" by 2-1/8" deep square box
or the LFSBBB-W back box.
The Speaker Base is not an addressable device. Independent control of
the speaker base requires a PAD100-SM speaker module.
Potter Electric Signal Company, LLC
Technical Specifications
•
St. Louis, MO
•
•
8830143 - REV B
PAD100-SPKB
Working Range for SLC
Standby/Alarm Current
Installation temperature
range
Active Current (including
indicator)
Working Voltage
Power Tap Selection for
SPK
Applicable SLC Wiring
Style
Active Indicator
Operating relative
humidity range
Maximum number of
devices per SLC Loop
Dimensions (without
detector)
Mounting Options
Phone: 800-325-3936
4/18
Speaker Base
24 VDC
150 μA
32°F to 150°F (0°C to 66°C)
3.8 mA
25 Volts, 70.7 Volts
1/8 Watt , 1/4 Watt, 1/2 Watt, 1 Watt,
2 Watt, 4 Watt
Class A, Class B, Class X
1 LED
0% to 93% (Non-condensing)
127
Height: 2.75 in (70mm)
Diameter: 6 in x 6 in
Wall or Ceiling
•
www.pottersignal.com
PAGE 1 OF 3
