Potter PE-SPKC Series Instruction Manual

INSTALLATION INSTRUCTIONS
POTTER HIGH FIDELITY SPEAKER AND
SPEAKER STROBE WITH PRE-WIRE/PRE-TEST
CEILING MOUNT (CLEAR AND AMBER LENS)
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
The Potter Electric series PE-SPKC and PE-SPSTC Series High-Fidelity Multi-Candela Speaker Strobes are designed for easy installation
with a pre-wire capable mounting plate. PE-SPKC and PE-SPSTC series High-Fidelity Speaker Strobes are designed for multiple power
requirements with high dBA output at each power tap.
The Potter PE series incorporates a high efficiency speaker for maximum output at minimum power across a frequency range of 300-
8000Hz. The PE series Multi-Candela Strobes provides a synchronized strobe appliance when used in conjunction with an FACP or power
supply that incorporates the Wheelock Sync protocol.
The Potter PE series meets NFPA 2016 20 millisecond light pulse duration code requirements. The maximum number of PE series devices
per NAC is determined by dividing the maximum current rating of the FACP NAC by the total current rating of one PE series device, with a
maximum of 105 PE series strobe devices per NAC. Refer to FACP installation instructions for more detail.
CAUTION: Do not change factory applied finishes. "DO NOT PAINT".
ATTENTION: Ne pas modifiez les finitions appliquées en usine. "NE PAS PEINTURER"
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
INSTRUCTIONS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN
AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.
SPECIFICATIONS:
Models PE-SPSTC (Speaker-Strobe), PE-SPKC (Speaker), PE-SPxxx-A (Amber)
Agency Speaker: UL1480, ULC-S541-16
Strobe: UL1638, UL1971,CAN/ULC-S526-16
Input Voltage Speaker Audio: 25 or 70.7Vrms (field selectable, Table 3)
Strobe: DC or FWR, 24V Regulated, 16 to 33V (All models)
Settings Speaker Power: 1/8W to 5W (field selectable, Table 3)
Strobe Candela: 15, 30, 75, 110, 150, 177cd (field selectable)
Max. line resistance: 35Ω
NAC Characteristics
Environmental Indoor Use Only. 0° C - 50° C (32° F - 122° F) 93% R.H.
*UL1638 is an on axis rating where the following applies: effective candela rating per UL1971.
Table 2A: Speaker Sound Pressure Level Ratings
Reverberant dBA at 10Ft per UL1480
Setting 1/8 1/4 1/2
25Vrms 75 79 82
70.7Vrms 75 79 82
Table 2B: Directional Characteristics
-3dB
-6dB
Table 3: Strobe Current Ratings (AMPS) **
Regulated 24DC (16-33VDC)
Candela Setting 15cd
DC 0.022
FWR 0.036
** Setting will determine the current draw of the product.
PN P85758-005A
Table 1: Specifications
Anechoic dBA at 10 Ft per ULC-S541
1 2 5 1/8 1/4 1/2 1
85 87 --- 75 79 82 85
85 --- 87 75 79 82 85
+/- 80 Degrees Horizontal, +/- 80 Degrees Vertical
+/- 90 Degrees Horizontal, +/- 90 Degrees Vertical
Regulated 24FWR (16-33VRMS)
30cd 75cd 110cd 150cd
0.030 0.060 0.086 0.125
0.050 0.092 0.142 0.196
When calculating the total strobe current: Use Table 3 to determine the highest value of "RMS Current" for an individual appliance, then
multiply these values by the total number of appliances; be sure to add the currents for any other appliances powered by the same source
and include any required safety factors.
Make sure that the total RMS current required required by all appliances that are connected to the system's PRIMARY and SECONDARY
power sources, NAC circuits, Sync Modules or Potter power supplies does not exceed the power sources' rated capacity or the current
ratings of any fuses on the circuits to which these appliances are wired.
Check the minimum and maximum output of the power supply and standby battery, and subtract the voltage drop from the circuit wiring
resistance to determine the applied voltage to the appliance.

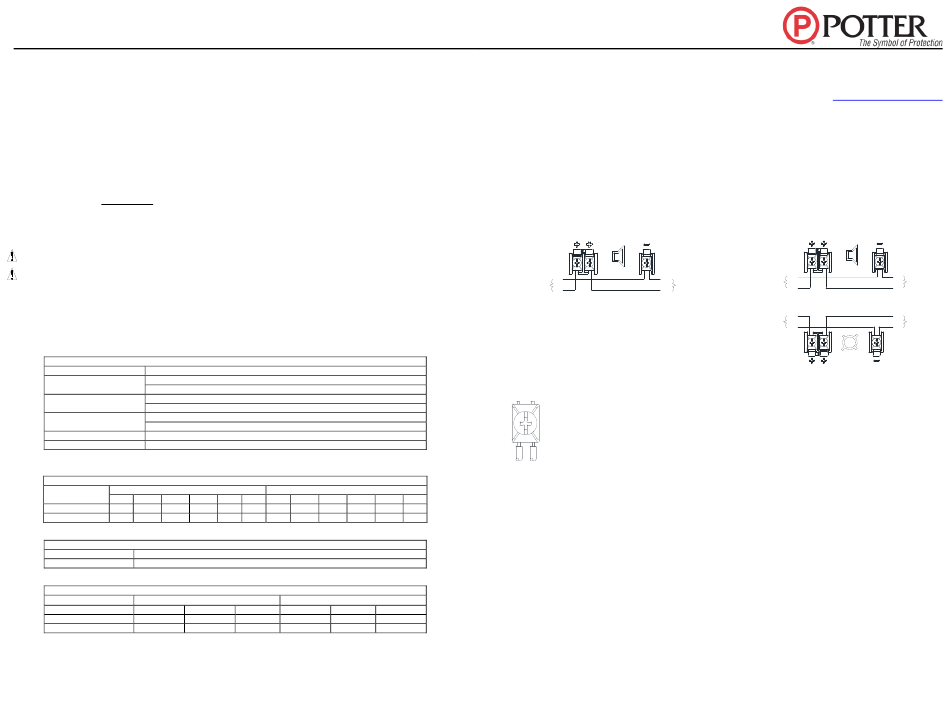

WIRING DIAGRAMS:
Figure 1A: Speaker (one circuit)
-
FROM PRECEDING SPEAKER
OR PANEL (AMPLIFIER)
+
Figure 2:
NOTES:
1. The strobe will produce 1 flash per second over the "Regulated Voltage" range.
2. Strobe is not designed to be used on coded systems in which the applied voltage is cycled on and off.
2 5
3. The maximum number of PE series strobes on a single notification appliance circuit shall not exceed 105.
87 ---
4. Amber strobes are not to be used as a Visual Public Mode alarm notification appliance
--- 87
These appliances are UL Listed as "Regulated". They are intended to be used with FACPs whose notification circuits are UL Listed
5.
as "Regulated." Refer to the FACP or power supply instructions for special application and strobe synchronization compatibility.
6. These appliances were tested to the regulated voltage limits of 16.0-33.0 Volts. Do not apply voltage outside of this range. Check
the minimum and maximum output of the power supply and standby battery and subtract the voltage drop from the circuit wiring
resistance to determine the applied voltage to the strobes. The max wire impedance between strobes shall not exceed 35 ohms.
Make sure that the total RMS current required by all appliances that are connected to the system's primary and secondary power
7.
sources, notification appliance circuits, sync modules, or Potter power supplies does not exceed the power sources rated capacity or
the current ratings of any fuses on the circuits to which these appliances are wired.
8. The Code 3 temporal pattern (1/2 second on, 1/2 second off, 1/2 second on, 1/2 second off, 1/2 second on, 1-1/2 off and repeat) is
specified by ANSI and NFPA 72 for standard emergency evacuation signaling. Code 3 shall be used only for fire evacuation signaling
177cd and not for any other purpose.
0.185 9. The effect of shipping and storage temperatures shall not adversely affect the performance of the appliance when it is stored in the
0.274 original cartons and not subjected to misuse or abuse.
FROM PRECEDING APPLIANCE
-
TO NEXT
OR PANEL (AMPLIFIER)
APPLIANCE
+ OR E.O.L.R.
FROM PRECEDING APPLIANCE
FACP, POWER SUPPLY
OR SYNC MODULE
*Refer to Potter power supply or sync module instructions for additional information.
1. This model has in-out wiring terminals that accept #12 to #18 American Wire Gauge (AWG) wires
at each screw terminal. Strip leads 3/8 inches and connect to screw terminals.
2. Break all in-out wire runs on supervised circuits to assure integrity of circuit supervision as shown in
Figure 2. The polarity shown in the wiring diagrams is for operation of the appliances. The polarity is
reversed by the FACP during supervision.
1609 Park 370
Hazelwood, MO 63042
1-800-325-3936
www.pottersignal.com
