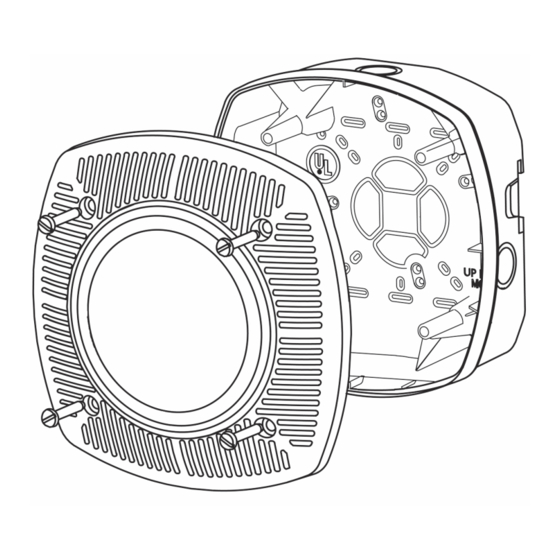

UNIVERSAL MOUNT LOW PROFILE SPEAKER AND
CEILING MOUNT LOW PROFILE SPEAKER/STROBE
ADDITIONAL CAN/ULC LISTED PRODUCT INFORMATION IS FOUND ON PAGE 4
**Effective Intensity Requirements for Sleeping Area
Visible Notification Appliance
Distance from Ceiling to Top of Lens
greater than or equal to 24" (610mm)
less than 24" (610mm)
CAUTION: Strobe light
must be installed within
16 feet of the pillow when
used in a sleeping area.
The visual signal must be in the direct viewing area of the occupant in order to be seen.
Strobe light cannot be seen when objects such as doors, furniture or walls block strobe light.
NOTICE: VISUAL SIGNALS FOR THE HEARING IMPAIRED ARE ONLY ONE METHOD OF ALERTING THE HEARING IMPAIRED. VISUAL SIGNALS MAY NOT BE THE
PREFERRED METHOD FOR NOTIFYING ALL HEARING IMPAIRED INDIVIDUALS.
NOTICE: THE STROBE LIGHT MUST BE SEEN BY THE SLEEPING PERSON. IF THE PERSON HAS HEAD TURNED OR OTHERWISE UNABLE TO BE ALERTED BY
VISUAL, THE STROBE WILL NOT BE EFFECTIVE.
FASPKR & SPKSTR-24CLP SERIES
ANSI/UL AND CAN/ULC COMPLIANT
Intensity
110 Cd
177 Cd
550-0596
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Potter FASPKR Series
Summary of Contents for Potter FASPKR Series
- Page 1 FASPKR & SPKSTR-24CLP SERIES ANSI/UL AND CAN/ULC COMPLIANT UNIVERSAL MOUNT LOW PROFILE SPEAKER AND CEILING MOUNT LOW PROFILE SPEAKER/STROBE ADDITIONAL CAN/ULC LISTED PRODUCT INFORMATION IS FOUND ON PAGE 4 **Effective Intensity Requirements for Sleeping Area Visible Notification Appliance Distance from Ceiling to Top of Lens Intensity greater than or equal to 24" (610mm) 110 Cd less than 24"...
- Page 2 PULSING SIGNALING CIRCUITS. HOWEVER, USE OF THE AVSM CONTROL MODULE IS PERMITTED TO SYNCHRONIZE THE STROBE. NOTICE: REFERENCE AVSM CONTROL MODULE MANUAL (550-0598, DATED 2-1-13) FOR SYNCHRONIZATION MODULE WIRING DIAGRAMS. AVSM MANUAL CAN BE OBTAINED BY CALLING POTTER ELECTRIC SIGNAL COMPANY AT 1-800-325-3936. 550-0596...
- Page 3 THIS APPLIANCE WILL NOT OPERATE WITHOUT ELECTRICAL POWER. AS FIRES FREQUENTLY CAUSE POWER INTERRUPTIONS, POTTER ELECTRIC SUGGESTS YOU DISCUSS FURTHER SAFEGUARDS WITH YOUR LOCAL FIRE PROTECTION SPECIALIST. 550-0596...
- Page 4 LIMITED WARRANTY For a period of 60 months from the date of manufacture (or as long as required by applicable law), Potter Electrical Signal Company, LLC warrants to you the original purchaser that your appliance will be free from defects in workmanship and materials under normal use and service.
- Page 5 Cet appareil est destiné à l’intégration aux systèmes d’alarme incendie et doit être installé conformément au présent manuel, aux recommandations des autorités compétentes locales et aux normes NFPA établissant les normes pour les appareils de signalisation des systèmes de signaux de protection. Les modèles FASPKR et SPKSTR-24CLP de Potter Electric doivent uniquement être installés à...
- Page 6 CONSULTER LE MANUEL DUMODULE DE COMMANDE AVSM (550-0598, DATÉ DU 1ER FÉVRIER 2013) POUR LES SCHÉMAS DE CÂBLAGE DU MODULE DE SYNCHRONISATION. IL EST POSSIBLE DE SE PROCURER LE MANUEL AVSM EN ÉCRIVANT EN APPELANT POTTER ELECTRIC SIGNAL COMPANY 1 800 325-3936.
- Page 7 CET APPAREIL NE FONCTIONNE PAS SANS ALIMENTATION ÉLECTRIQUE. COMME LES INCENDIES ENTRAÎNENT SOUVENT DES PANNES DE COURANT, POTTER ELECTRIC RECOMMANDE DE DISCUTER DE MESURES DE PROTECTION SUPPLÉMENTAIRES AVEC LE SPÉCIALISTE LOCAL EN PROTECTION INCENDIE.
- Page 8 à la mise en application de ces lois et règlements en fonction des situations particulières. Les activités de chaque personne peuvent modifier les obligations pertinentes en vertu des lois ou des règlements en vigueur. Par conséquent, ces renseignements ne doivent être utilisés qu’à des fins informationnelles et ne doivent pas servir à remplace un avis juridique professionnel. Potter n’assumera aucune responsabilité quant aux mesures ou activités qui pourraient être, ou ne pas être, prises ou effectuées à la suite de ces renseignements.
