GETTING STARTED GUIDE
PXIe-4135

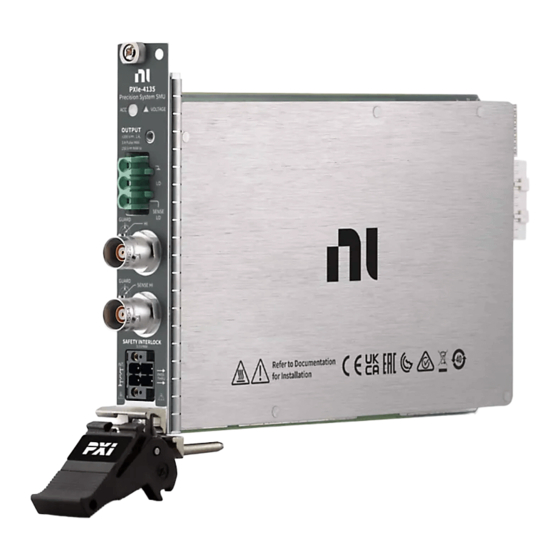

PXIe, ±200 V, ±1 A (DC)/±3 A (Pulsed), 10 fA Precision System PXI
Source Measure Unit
This document explains how to install, configure, and test the PXIe-4135. Go to
downloaddcpower
to download the latest NI-DCPower driver software to program the module.
Note
Before you begin, install and configure your chassis and controller.
Note
In this document, the PXIe-4135 (40W) and PXIe-4135 (20W) are referred to
inclusively as the PXIe-4135. The information in this document applies to all
versions of the PXIe-4135 unless otherwise specified. To determine which version of
the module you have, locate the device name in one of the following places:
•
In MAX-The PXIe-4135 (40W) shows NI PXIe-4135 (40W), and the
PXIe-4135 (20W) shows as NI PXIe-4135.
•
Device front panel-The PXIe-4135 (40W) shows PXIe-4135 40W System
SMU, and the PXIe-4135 (20W) shows NI PXIe-4135 Precision System SMU
on the front panel.
Contents
Verifying the System Requirements..........................................................................................2
Unpacking the Kit..................................................................................................................... 2
Kit Contents.............................................................................................................................. 3
Other Equipment............................................................................................................... 3
Preparing the Environment....................................................................................................... 4
Installing the Software.............................................................................................................. 4
Installing the PXIe-4135........................................................................................................... 4
PXIe-4135 Pinout......................................................................................................................8
Accessories..............................................................................................................................10
Configuring the PXIe-4135 in MAX...................................................................................... 10
Testing the Safety Interlock.....................................................................................................11
Testing with an Application Development Environment................................................ 11
Testing with the NI-DCPower Soft Front Panel..............................................................11
Self-Calibrating the PXIe-4135.............................................................................................. 12
Programming the PXIe-4135.................................................................................................. 13
ni.com/r/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXIe-4135 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NI PXIe-4135

Summary of Contents for NI PXIe-4135

  • Page 1: Table Of Contents

    PXIe-4135 PXIe, ±200 V, ±1 A (DC)/±3 A (Pulsed), 10 fA Precision System PXI Source Measure Unit This document explains how to install, configure, and test the PXIe-4135. Go to ni.com/r/ downloaddcpower to download the latest NI-DCPower driver software to program the module.

  • Page 2: Verifying The System Requirements

    Troubleshooting........................15 What Should I Do if the PXIe-4135 Doesn't Appear in MAX?........15 Why Is the ACCESS LED Off When the Chassis Is On?..........16 What Should I Do if the PXIe-4135 Fails the Self-Test?..........16 NI Services..........................17 Verifying the System Requirements To use the NI-DCPower instrument driver, your system must meet certain requirements.

  • Page 3: Kit Contents

    3. Safety Interlock Input Connector Other Equipment There are several required items not included in your PXIe-4135 kit that you need to operate the PXIe-4135. Your application may require additional items not included in your kit to install or operate your PXIe-4135.

  • Page 4: Preparing The Environment

    To prevent damage to the PXIe-4135 caused by ESD or contamination, handle the module using the edges or the metal bracket. Ensure the AC power source is connected to the chassis before installing the PXIe-4135. 4 | ni.com | PXIe-4135 Getting Started Guide...
  • Page 5 5. PXI Express Peripheral Slot 3. PXI Express Hybrid Peripheral Slot PXIe-4135 modules can be placed in PXI Express peripheral slots, PXI Express hybrid peripheral slots, or PXI Express system timing slots. Touch any metal part of the chassis to discharge static electricity.
  • Page 6 LO and sense LO cables beyond the body of the connector. Clamp down using the screw terminals on the connector. Verify that no exposed shield foil or braid extends outside of the backshell. 6 | ni.com | PXIe-4135 Getting Started Guide...
  • Page 7 18. Perform the safety interlock test. Related Information Why Is the ACCESS LED Off When the Chassis Is On? on page 16 Testing the Safety Interlock on page 11 PXIe-4135 Getting Started Guide | © National Instruments Corporation | 7...

  • Page 8: Pxie-4135 Pinout

    40W System SMU VOLTAGE VOLTAGE OUTPUT OUTPUT SENSE SENSE GUARD GUARD GUARD GUARD SENSE HI SENSE HI SAFETY INTERLOCK SAFETY INTERLOCK 3.3 V MAX 3.3 V MAX INT. INT. PASS- PASS- THRU THRU 8 | ni.com | PXIe-4135 Getting Started Guide...
  • Page 9 Green The device output is connected to the voltage Open; only <42.4 V DC generation source and <42.4 V DC is present. is present. PXIe-4135 Getting Started Guide | © National Instruments Corporation | 9...

  • Page 10: Accessories

    Configuring the PXIe-4135 in MAX Use Measurement & Automation Explorer (MAX) to configure your NI hardware. MAX informs other programs about which NI hardware products are in the system and how they are configured. MAX is automatically installed with NI-DCPower.

  • Page 11: Testing The Safety Interlock

    15 Testing the Safety Interlock To ensure safe operation of the PXIe-4135, periodically test the safety interlock for proper functionality. The recommended test interval is at least once per day of continuous usage. Testing with an Application Development Environment Disconnect the output connector from the PXIe-4135 front panel.

  • Page 12: Self-Calibrating The Pxie-4135

    10. Verify that the Voltage Status Indicator is red and that a hazardous voltage error message appears. 11. On the error message dialog, click OK to prompt the PXIe-4135 to attempt to clear the error and re-initialize the session to default values.

  • Page 13: Programming The Pxie-4135

    Programming the PXIe-4135 You can generate signals interactively using InstrumentStudio or you can use the NI-DCPower instrument driver to program your device in the supported ADE of your choice. PXIe-4135 Getting Started Guide | © National Instruments Corporation | 13...
  • Page 14 • From Measurement & Automation Explorer (MAX), select a device and then click Test Panels..This launches InstrumentStudio and runs a soft front panel for the device you selected. 14 | ni.com | PXIe-4135 Getting Started Guide...

  • Page 15: Troubleshooting

    If the module is still not listed, power off the system, ensure that all hardware is correctly installed, and restart the system. Navigate to the Device Manager. PXIe-4135 Getting Started Guide | © National Instruments Corporation | 15...

  • Page 16: Why Is The Access Led Off When The Chassis Is On

    LED. Notice Apply external signals only while the PXIe-4135 is powered on. Applying external signals while the module is powered off may cause damage. Disconnect any signals from the module front panels.

  • Page 17: Ni Services

    NI product. Product registration facilitates technical support and ensures that you receive important information updates from NI. NI corporate headquarters is located at 11500 N Mopac Expwy, Austin, TX, 78759-3504, USA. PXIe-4135 Getting Started Guide | © National Instruments Corporation | 17...
  • Page 18 . You can find patents.txt ni.com/patents information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer to the Export Compliance Information at for the NI global trade compliance policy and how ni.com/legal/export-compliance...
