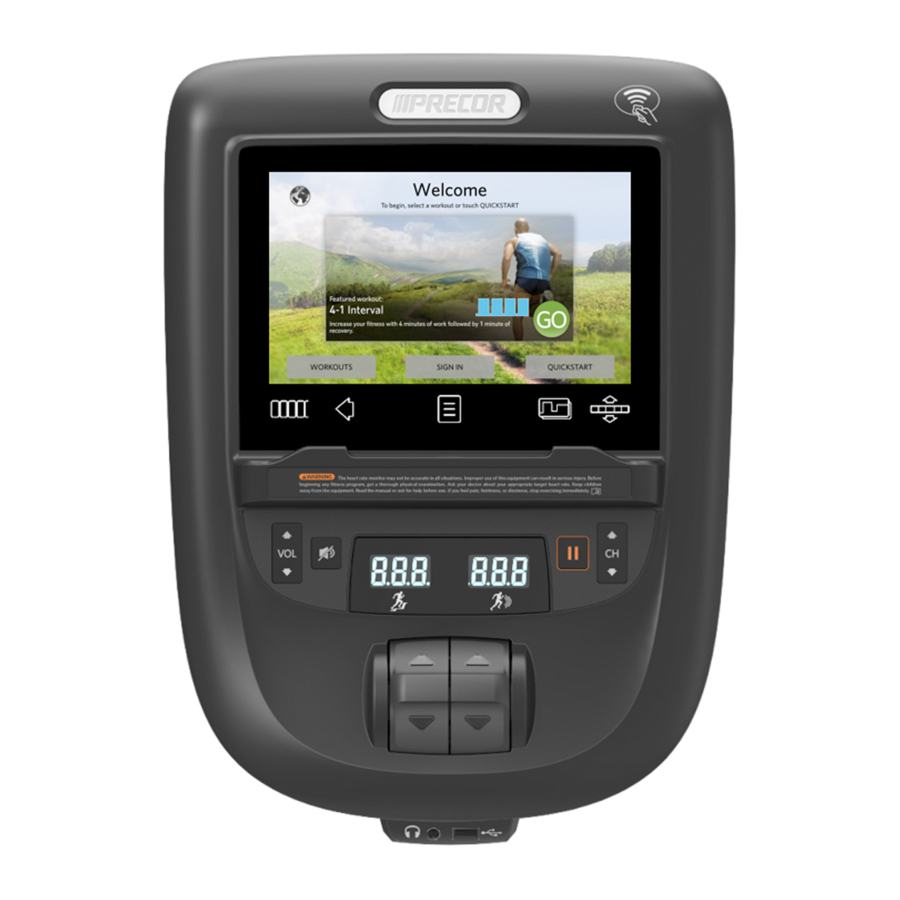

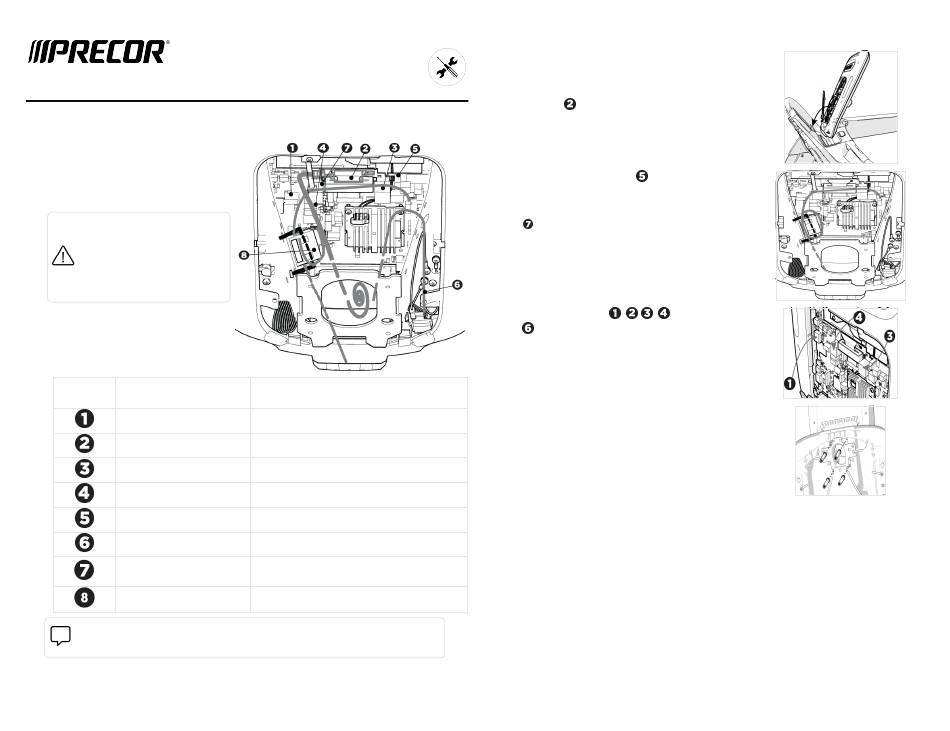

P62 Console Installation Guide
Cables and Connections
WARNING Before you connect
any cables to the console, make
sure that the equipment is not
connected to any external
power source or plugged into
the wall.
Connector
Cable
Location
Safety key (TRMs only)
TV, when installed
Ethernet (LAN)
Data from base unit
Power
Heart rate sensor
microSD card slot
Ferrite mount
NOTE For instructions to set up and configure a media adapter, see the Media
Adapter Guide in the console product page on www.precor.com.
Connector Type
Six-contact strip, keyed
F-type coaxial with isolator
Eight-contact modular on round black cable
Eight-contact modular on flat gray cable
Two-contact plug, polarized and latched
Four-contact strip, keyed
Eight-contact strip
N/A
Attach and Wire the Console
1. Set the console on the rectangular hook at the bot-
tom of the console mount and hold it in place.
2. When installing coaxial cable, remove the isolator
extender
connect the TV coaxial cable and then
reattach to the console.
4. Connect the power cable
, after passing it
through and wrapping around the ferrite mount.
5. Verify the microSD card is securely mounted (see
above).
6. Connect the cables
,
,
,
is lower board) by routing cables through the
larger hole in the mount bracket.
7. Tilt the console back onto the mounting bracket
and secure it with the mounting bolts, making sure
to fully tighten the bolts.
8. Follow the checklist and set of instructions on the
next page to test that the console and equipment
are working.
9. Attach the fasteners to reinstall the console rear
cover after tests are completed.
Connect to a Network
1. Go to Settings > System Settings > Connectivity.
2. Touch Network Type > Wired (or Wi-Fi) > OK.
3. Touch Configure. Select the network from the list and enter your credentials to access that
network.
4. Touch the Back button to return to the Connectivity screen. Your settings will be auto-
matically saved.
Test Console and Equipment
Use this checklist of procedures for testing and follow each step in order.
©2021 Precor Incorporated
as shown below (
|
PN 304148-101 Rev. C ENU
|
|
22 October 2021
