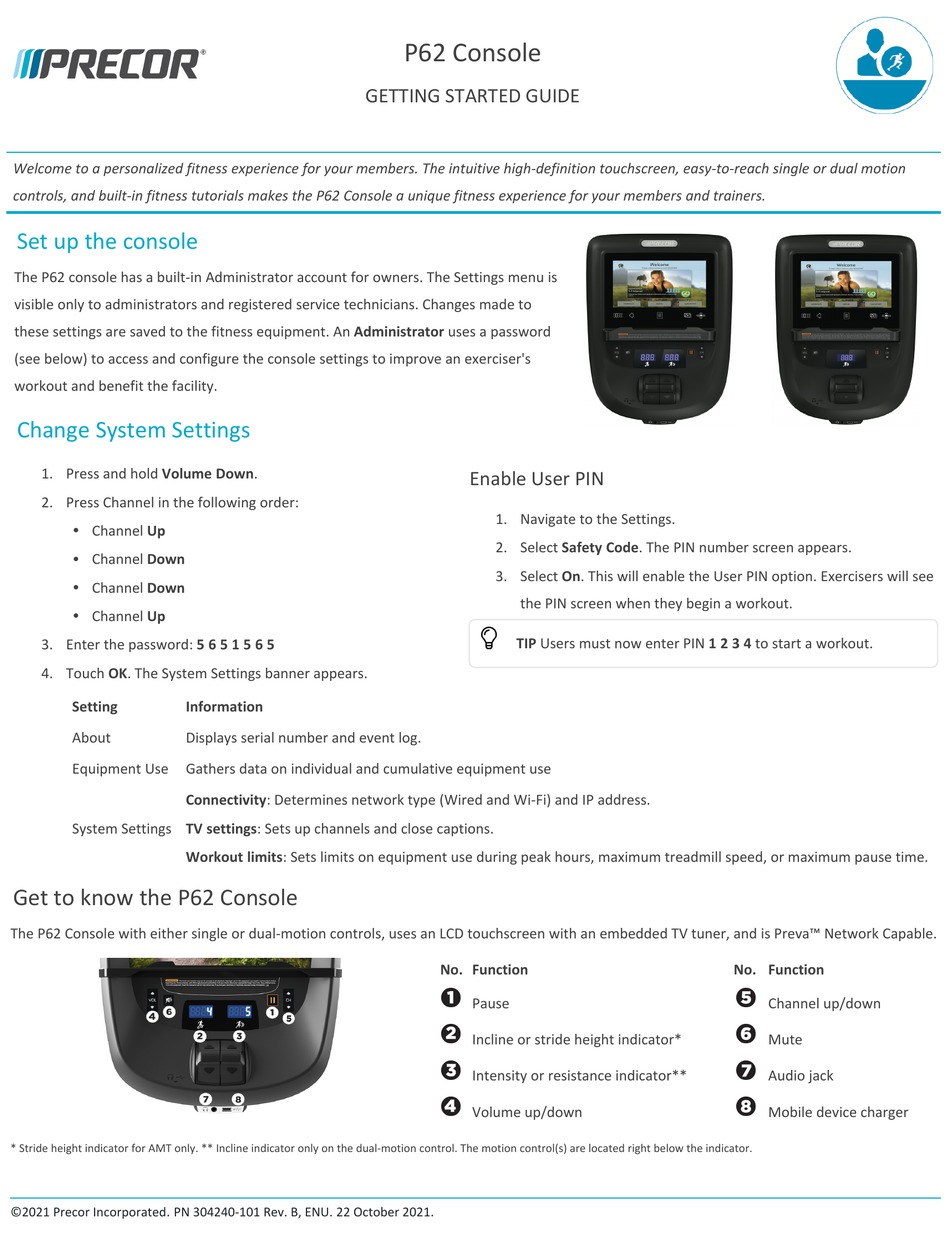

Precor P62 Getting Started Manual

Welcome to a personalized fitness experience for your members. The intuitive high-definition touchscreen, easy-to-reach single or dual motion
controls, and built-in fitness tutorials makes the P62 Console a unique fitness experience for your members and trainers.

Set up the console

The P62 console has a built-in Administrator account for owners. The Settings menu is
visible only to administrators and registered service technicians. Changes made to
these settings are saved to the fitness equipment. An Administrator uses a password
(see below) to access and configure the console settings to improve an exerciser's
workout and benefit the facility.

Change System Settings

1. Press and hold Volume Down.
2. Press Channel in the following order:
Channel Up
l
Channel Down
l
Channel Down
l
Channel Up
l
3. Enter the password: 5 6 5 1 5 6 5
4. Touch OK. The System Settings banner appears.
Setting Information
About Displays serial number and event log.
Equipment Use Gathers data on individual and cumulative equipment use
Connectivity: Determines network type (Wired and Wi-Fi) and IP address.
System Settings TV settings: Sets up channels and close captions.
Workout limits: Sets limits on equipment use during peak hours, maximum treadmill speed, or maximum pause time.

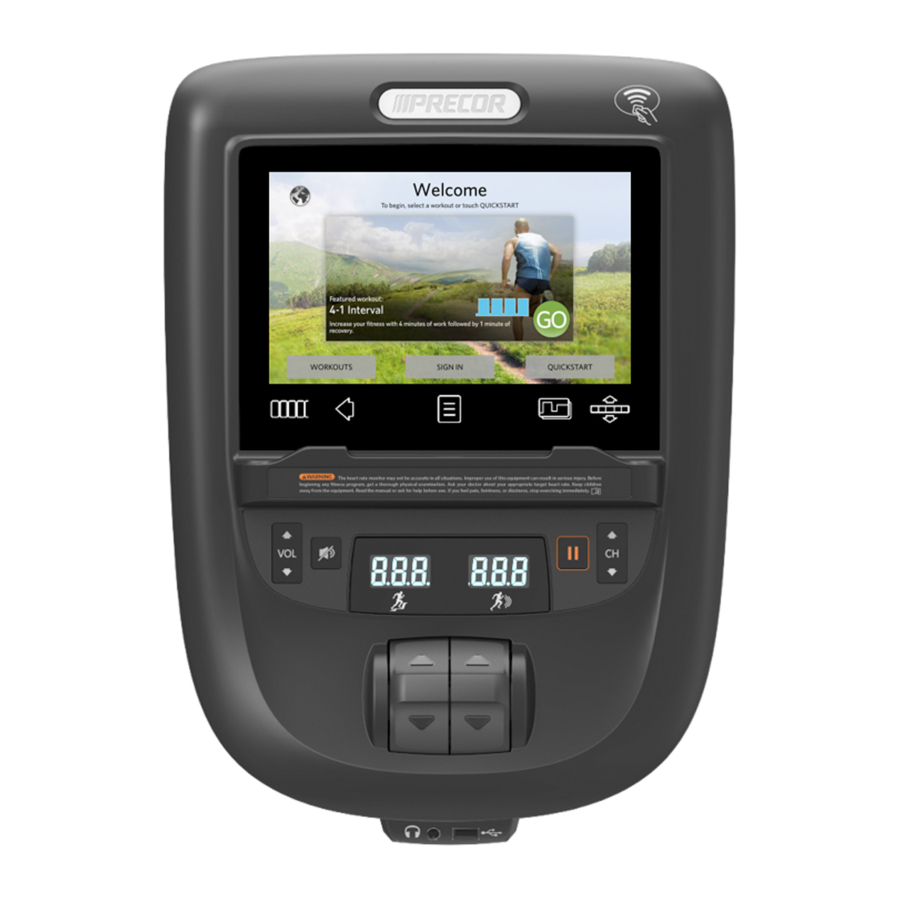

Get to know the P62 Console

The P62 Console with either single or dual-motion controls, uses an LCD touchscreen with an embedded TV tuner, and is Preva™ Network Capable.
* Stride height indicator for AMT only. ** Incline indicator only on the dual-motion control. The motion control(s) are located right below the indicator.
.
©2021 Precor Incorporated PN 304240-101 Rev. B, ENU. 22 October 2021
P62 Console
GETTING STARTED GUIDE
Enable User PIN
1. Navigate to the Settings.
2. Select Safety Code. The PIN number screen appears.
3. Select On. This will enable the User PIN option. Exercisers will see
the PIN screen when they begin a workout.
TIP Users must now enter PIN 1 2 3 4 to start a workout.
No. Function
Pause
Incline or stride height indicator*
Intensity or resistance indicator**
Volume up/down
.
No. Function
Channel up/down
Mute
Audio jack
Mobile device charger
