Mounting the Center Board

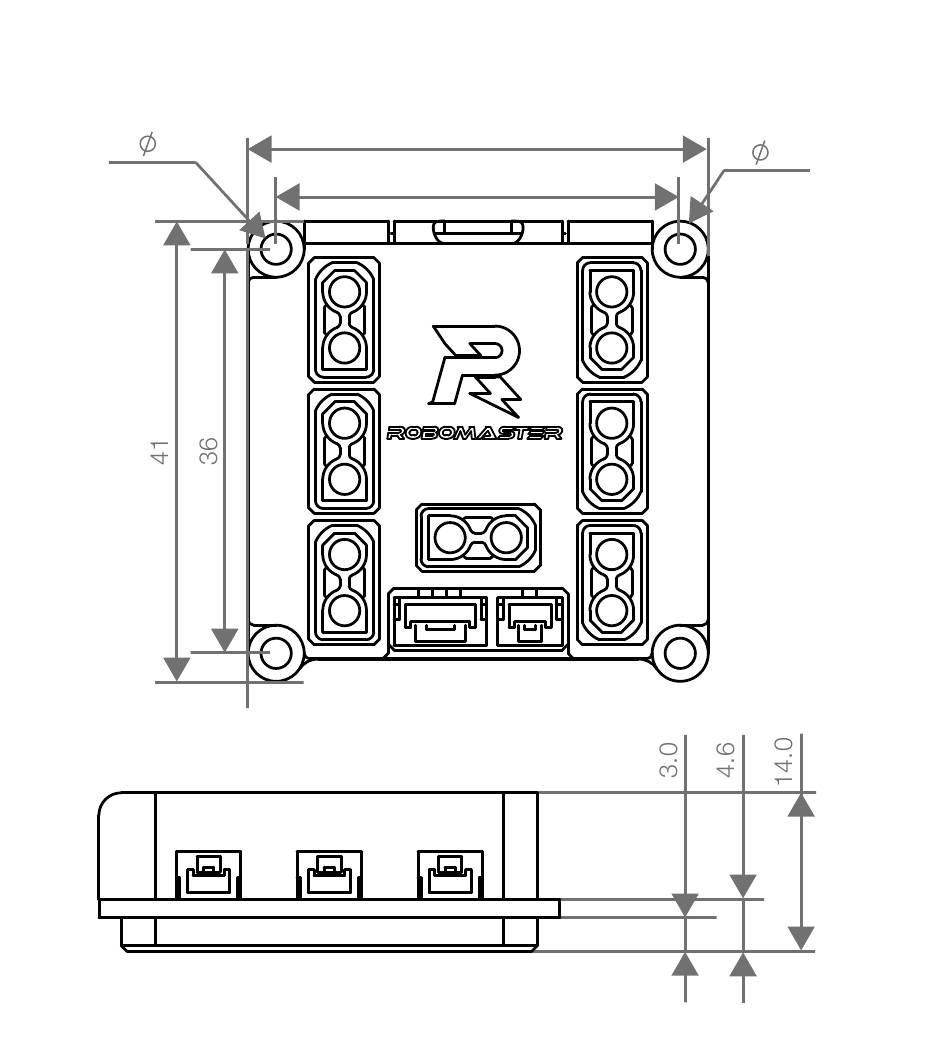

Refer to the dimensions in the figure below when mounting the center board.
4- 2.7
5
41
36
4- 5.0
Unit: mm
