Table of Contents

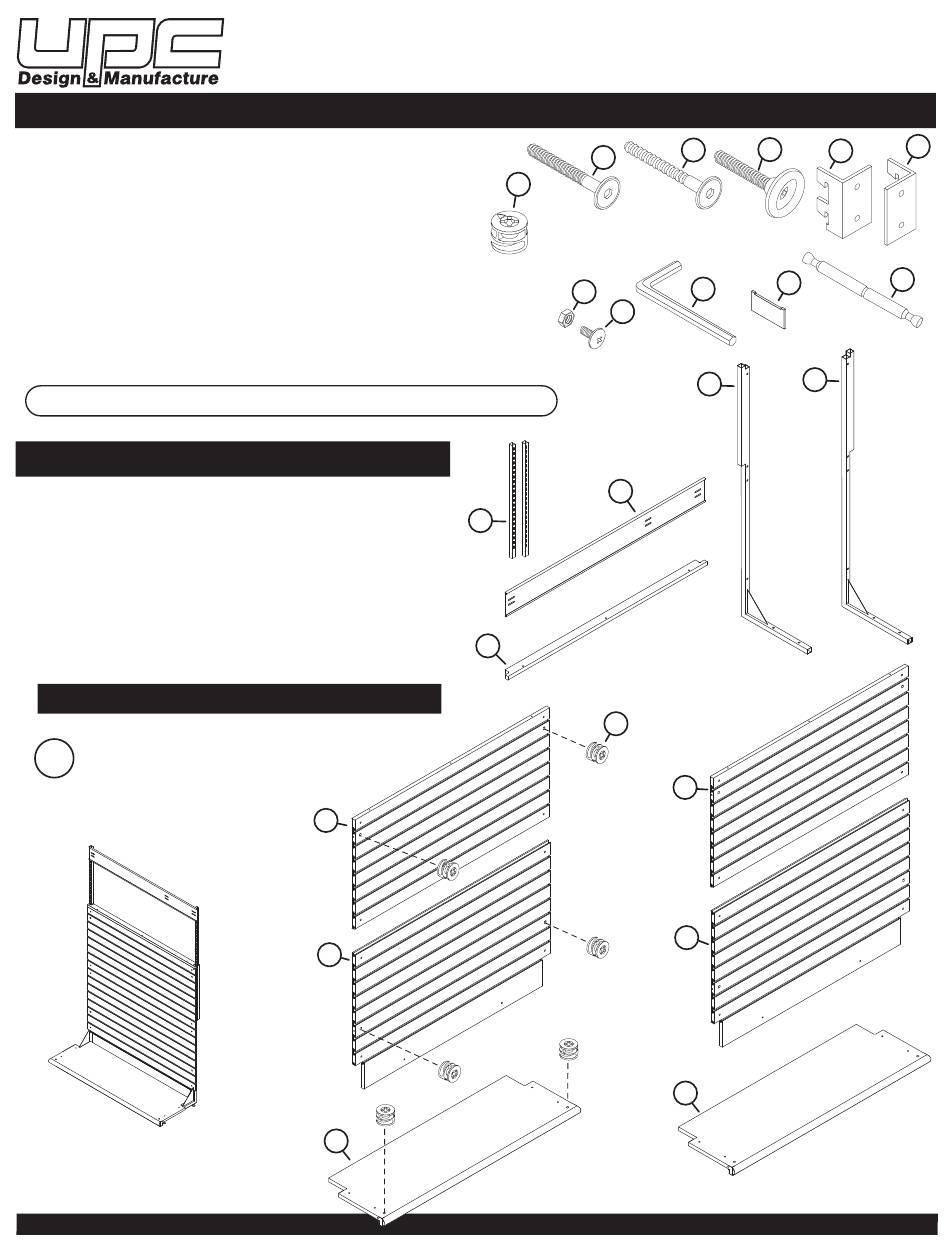

PARTS BAG

PART
MiniFix 15 Cam
Connector Bolt
Connector Bolt-Wood
Leveler
Left Bracket
Right Bracket
Nut
3/8˝ Trusshead Screw
Hex Wrench
Key
Double MiniFix Bolt
OTHER TOOLS REQUIRED: #2 Phillips Screwdriver
PARTS
PART
Base Panel
Left Frame
Right Frame
Large Back Panel
Small Back Panel
Top Cap
Slotted Upright
Sign Track
ASSEMBLY
Insert (6) MiniFix Cams (A),
1
two each into Small Back Panel (P),
Large Back Panel (O) &
Base Panel (L).
Revised 8/21/14
ASSEMBLY INSTRUCTIONS
UPC 8079B
Quantity
Reference
6
12
5
4
1
1
4
4
1
2
3
Quantity Reference
1
L
1
M
1
N
1
O
1
P
1
Q
2
R
1
S
P
O
L
A
B
A
C
D
E
F
G
G
H
I
J
K
R
Q
4' Inline Slotwall Unit
D
C
B
I
H
M
S
A
P
O
L
F
E
K
J
N
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8079B and is the answer not in the manual?

Questions and answers

Related Manuals for UPC 8079B

Summary of Contents for UPC 8079B

  • Page 1 ASSEMBLY INSTRUCTIONS PARTS BAG UPC 8079B 4' Inline Slotwall Unit PART Quantity Reference MiniFix 15 Cam Connector Bolt Connector Bolt-Wood Leveler Left Bracket Right Bracket 3/8˝ Trusshead Screw Hex Wrench Double MiniFix Bolt OTHER TOOLS REQUIRED: #2 Phillips Screwdriver PARTS...
  • Page 2 ASSEMBLY Screw (4) Levelers (D) to the bottom of Left Frame (M) & Right Frame (N). Next attach Base Panel (L) to base of Left Frame (M) and Right Frame (N) using (4) Connector Bolts (B). Attach Large Back Panel (O) to base assembly using (4) Connector Bolts (B).
  • Page 3 Note: Make sure the edges Small Back Panel (P) of are flush with the sides of ASSEMBLY frame or attaching to other units will be Slide Small Back Panel (P) onto the impossible. base assembly and attach using (4) Connector Bolts (B). Attach Top Cap (Q) to base assembly using (3) Connector Bolts - Wood (C).
  • Page 4 ASSEMBLY Insert (2) Slotted Uprights (R) in square holes in top of assembly and secure at desired height using (2) Keys (J) with indentations up. Attach Left & Right Brackets (E&F) to back of Sign Track (S) using (4) Nuts (G) and (4) 3/8˝...
  • Page 5 If connecting to another Slotwall Unit, see step below. UPC 8089 /8083 UPC 8078B UPC 8079B OPTIONAL STEP 8 UPC 8070B Insert (3) Double MiniFix Bolts (K) into holes corresponding with MiniFix Cams in positioned Slotwall Unit and tighten MiniFix Cams.
