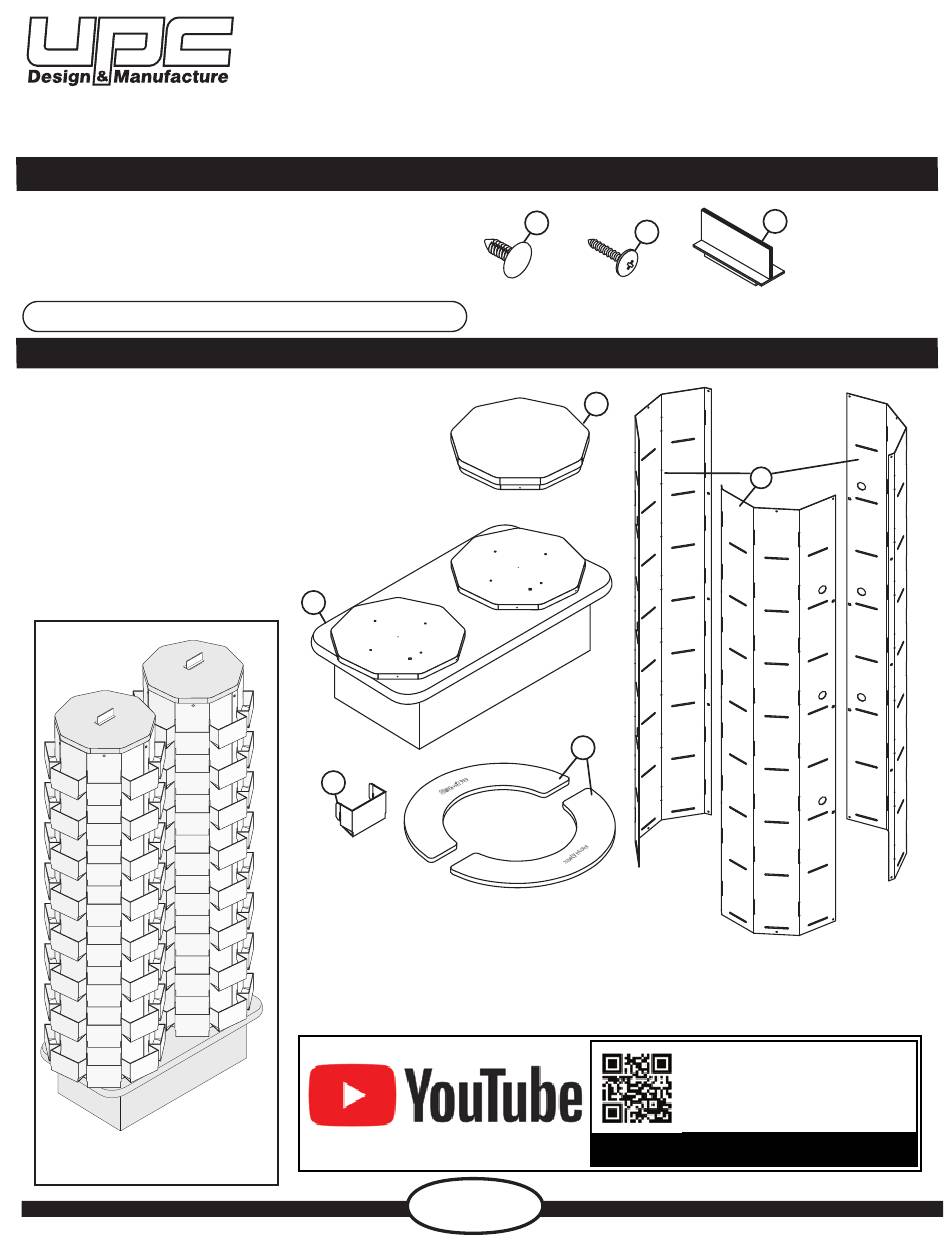

Thank you for your purchase of one of many fine products designed & manufactured by UPC.
We have made every effort to make your assembly easy, clear & hassle free. For more information
or if you have any questions contact customer service at 1-800-859-7442.
PARTS BAG
PART
Push Pin
Trusshead Screw
Header Clip
TOOLS REQUIRED: #2 Phillips Screwdriver
PARTS LIST
PART
Top Cap
Tower Panel
Base
Pockets
Tower Helper
Finished Display
Revised 01/08/19
ASSEMBLY INSTRUCTIONS
UPC 8162C
Quantity
Reference
26 (2 extra)
A
20 (2 extra)
B
2
C
Quantity
Reference
2
D
6
E
1
F
144
G
2
H
F
G
Instruction Video
Double 144 Pocket Spinner
A
D
H
U.S. PATENT NO.
8,534,472
C
B
E
Watch our easy
instruction video
www.upcdisplays.com/8162C
to follow
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for UPC 8162C
Summary of Contents for UPC 8162C
- Page 1 ASSEMBLY INSTRUCTIONS Thank you for your purchase of one of many fine products designed & manufactured by UPC. We have made every effort to make your assembly easy, clear & hassle free. For more information or if you have any questions contact customer service at 1-800-859-7442.
- Page 2 ASSEMBLY ASSEMBLY A. Peel protective masking off Tower Panels (E) before assembly. B. Overlap each Tower Panel (E) so the large hole of facet lies outside the small hole of adjacent panel. (see figure BELOW) C. Use Large Finger Holes (see figure RIGHT) to hold Tower Panels (E) tightly together while installing Push Pins (A).
- Page 3 ASSEMBLY This step will hold Tower Panel Assembly (E) up for installation to Base Assembly. Insert (2) Tower Helpers (H) under Spinner Plate on Base (F), as shown to the right. Align corresponding holes and set the Tower Panel Assembly (E) onto the Base (F).
- Page 4 ASSEMBLY Secure Tower Panel Assembly (E) to Base (F) at middle holes of Tower Assembly. Attach Tower Panels to Spinner Plate edge with (3) Trusshead Screws (B). DO NOT tighten completely! Continue to secure Tower Panel Assembly (E) to Base (F) at corner holes of Tower Panel Assembly.
- Page 5 ASSEMBLY Attach (2) Header Clips (C) to top of Tower Panel Assemblies (E) using attached Double Sided Tape. Attach (2) Top Caps (D) to the top of the Tower Panels Assemblies (E) using (3) Trusshead Screws (B) for each Top Cap (D). Attach Pockets (G) by hooking the side tabs into the vertical slots in the Tower Panel Assemblies (E).
