PARTS BAG
PART
Euro Screws
Push Pins
Card Clips
Header Clip
Allen Wrench
PARTS LIST
PART
Corner Posts
Top Cap
Base
Pockets
Finished Display
Revised 01/19/14
ASSEMBLY INSTRUCTIONS
UPC#5696B
Quantity Reference
8
60
(4 extra)
28
1
1
Quantity
Reference
4
F
1
G
1
H
28
I
A
A
B
C
D
E
F
G
56 Pocket Spinner
D
C
B
H
E
I
Page 1 of 2
Advertisement
Related Manuals for UPC 5696B
Summary of Contents for UPC 5696B

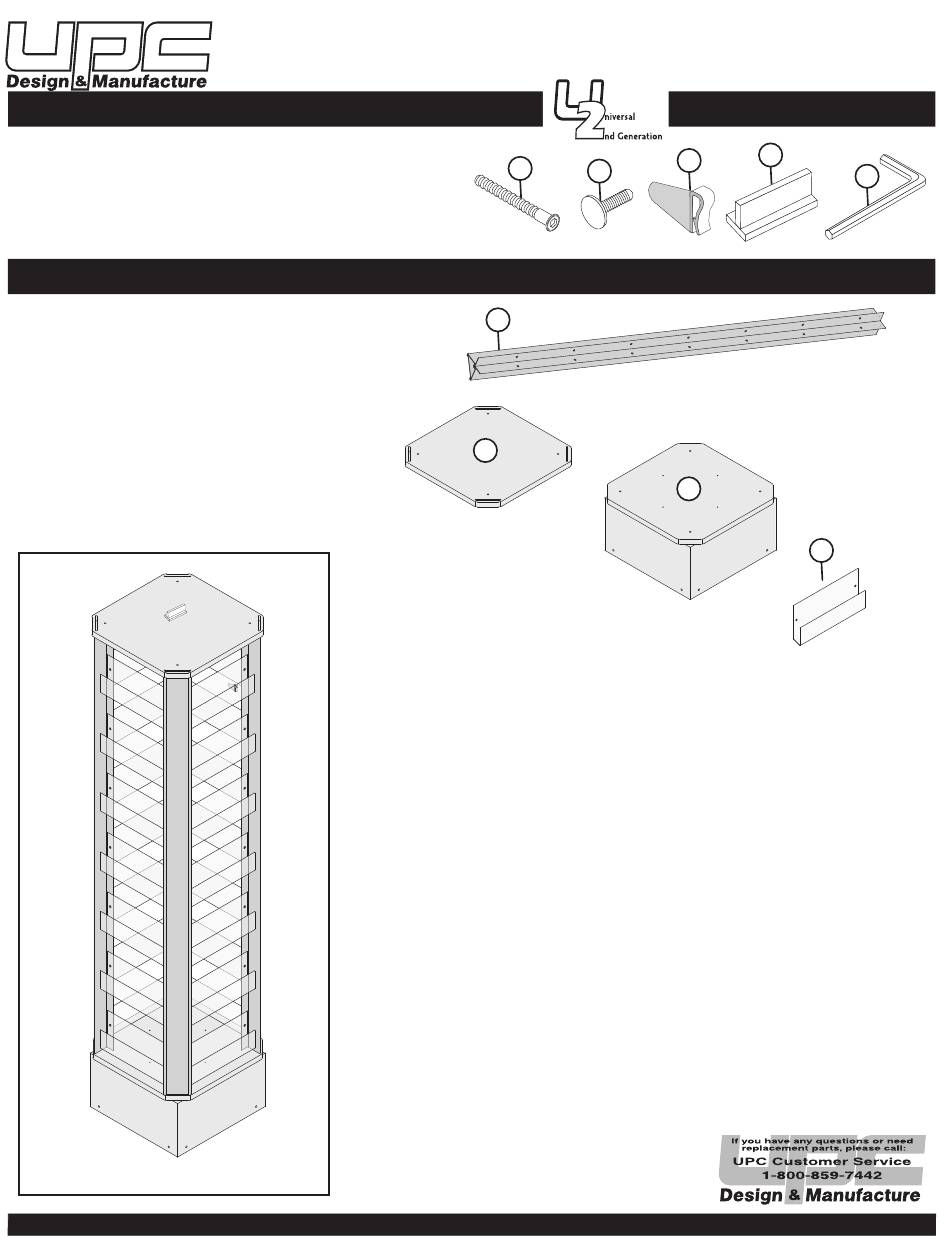

- Page 1 ASSEMBLY INSTRUCTIONS UPC#5696B PARTS BAG 56 Pocket Spinner PART Quantity Reference Euro Screws Push Pins (4 extra) Card Clips Header Clip Allen Wrench PARTS LIST PART Quantity Reference Corner Posts Top Cap Base Pockets Finished Display Page 1 of 2...
- Page 2 ASSEMBLY Identify Top and Bottom of (4) Corner Posts (F). NOTE: Holes are further from the top than the bottom. " Attach (4) Corner Posts (F) to the Base (H) using (4) NOTE: There is an Euro Screws (A), as shown. extra hole close to Top must be up, bottom down.
- Page 3 ASSEMBLY Push (2) Push Pins (B) into each Pocket (I) Attach Top Cap (G) onto Corner Posts (F) with (4) Euro Screws (A). Insert Card Clips (C) where then attach to Corner Posts (F). needed. Attach Header Clip (D) in center of Top Cap (G).
