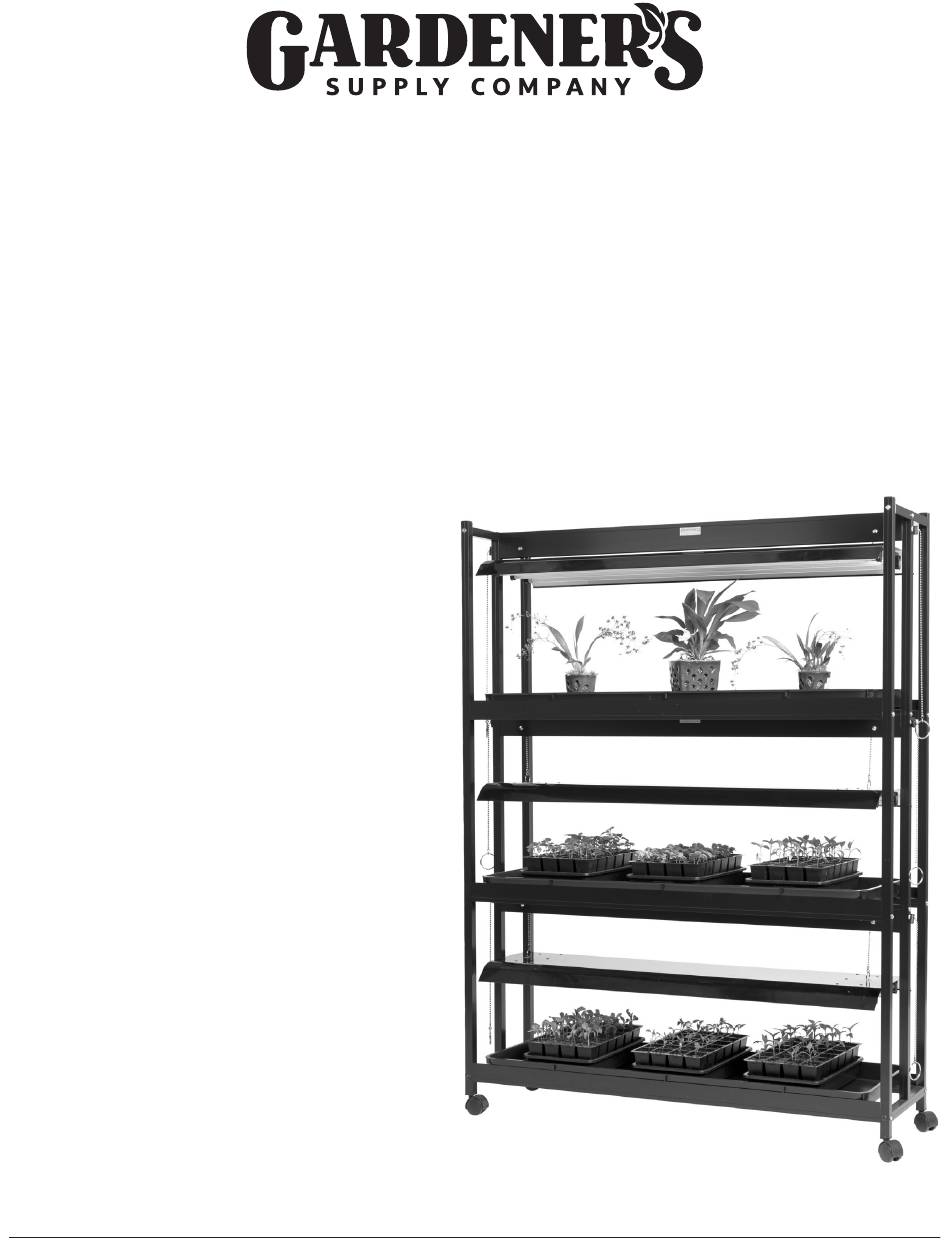

Our Vermont-made SunLite
light for optimum growth. You can start plants from seed, grow herbs, houseplants and even orchids.
Our ultra-light fixtures have a slim profile to give plants plenty of headroom. They measure a full 14" wide to ensure even light
coverage across each shelf. Inside, there are three T-5 bulbs that produce an abundance of brilliant, full-spectrum light. These bulbs
use 45% less energy than standard fluorescent bulbs and provide up to 7,500 hours of use.
Each fixture has its own pull chain for easy height adjustments, plus electronic ballasts to eliminate buzzing. This complete light
garden includes frame and fixtures, T-5 bulbs, watertight trays and casters.
With the help of one other person, you can assemble your 3-Tier SunLite
then assemble the Lights and hang them in the frame.
Before you begin, identify and organize all the parts on a flat, clean surface and gather your tools. As you organize the parts, note
that most pieces are labeled with a part number. Follow the illustrations closely to be sure the parts are oriented correctly as you put
them together. Assembly begins on the next page.
Parts Included
Frame:
S1L Vertical Bars 2
S1R Vertical Bars 2
S2 Vertical Bars
S3T Side Bars
S3B Side Bars
A3 Bars
A4 Shelf Bars
Poly Trays
Lights:
Light Fixtures
Ballasts
T-5 Light Tubes
6' Electrical Cords 3
Link Cords
Hardware: Ball Chains
Chain Connectors 12
Large Split Rings 6
Small Split Rings 6
Chain Grips
3/4" Bolts
2" Bolts
End Plugs
Bolt Caps
Casters
Caster Inserts
8593944
High Intensity 3-Tier SunLite
Gardens employ high quality light technology to give your plants the ideal quality and intensity of
®
Tools Required
Qty.
Phillips screwdriver
Hammer or rubber mallet
Needle-nose pliers
2
Twist tie, optional
2
Note: Assembly is easier
2
with two people
3
6
3
3
9
9
6
6
6
2
28
4
8
4
4
Garden
®
Garden in about an hour. Put the Frame together first,
®
0957S Rev 11/16
Advertisement
Table of Contents
Related Manuals for Gardener's High Intensity 3-Tier SunLite Garden
Summary of Contents for Gardener's High Intensity 3-Tier SunLite Garden
- Page 1 High Intensity 3-Tier SunLite Garden ® Our Vermont-made SunLite Gardens employ high quality light technology to give your plants the ideal quality and intensity of ® light for optimum growth. You can start plants from seed, grow herbs, houseplants and even orchids. Our ultra-light fixtures have a slim profile to give plants plenty of headroom.
- Page 2 Frame Assembly Figure 1 Side Frame Assembly Bolt Cap Step 1. Organize all parts on a flat, clean surface. All frame parts are End Plug 3/4" Bolt labeled with a letter and number. See corresponding parts list. 3/4" Bolt Use a hammer or rubber mallet to tap an End Plug into the tops of End Plug each S1R (right) and S1L (left) Vertical Bar.
- Page 3 High-Intensity Light Fixture Assembly Step 1. Remove the protective plastic film from the black side of the Light Fixture Hoods. Place a Light Fixture Hood upside down on a level surface. This will reveal the Ballast Clips inside (Figure 3). Important: Do not install the Light Tubes until Step 6. Step 2.
- Page 4 Ball Chain Assembly Figure 6 Step 1. Attach a Chain Connector to each Large Split Ring (Figure 6). If necessary, use needle-nose pliers to pry and hold open the Split Rings. Large Split Step 2. Connect one end of each Ball Chain to a Chain Connector on Ring the Large Split Rings.
