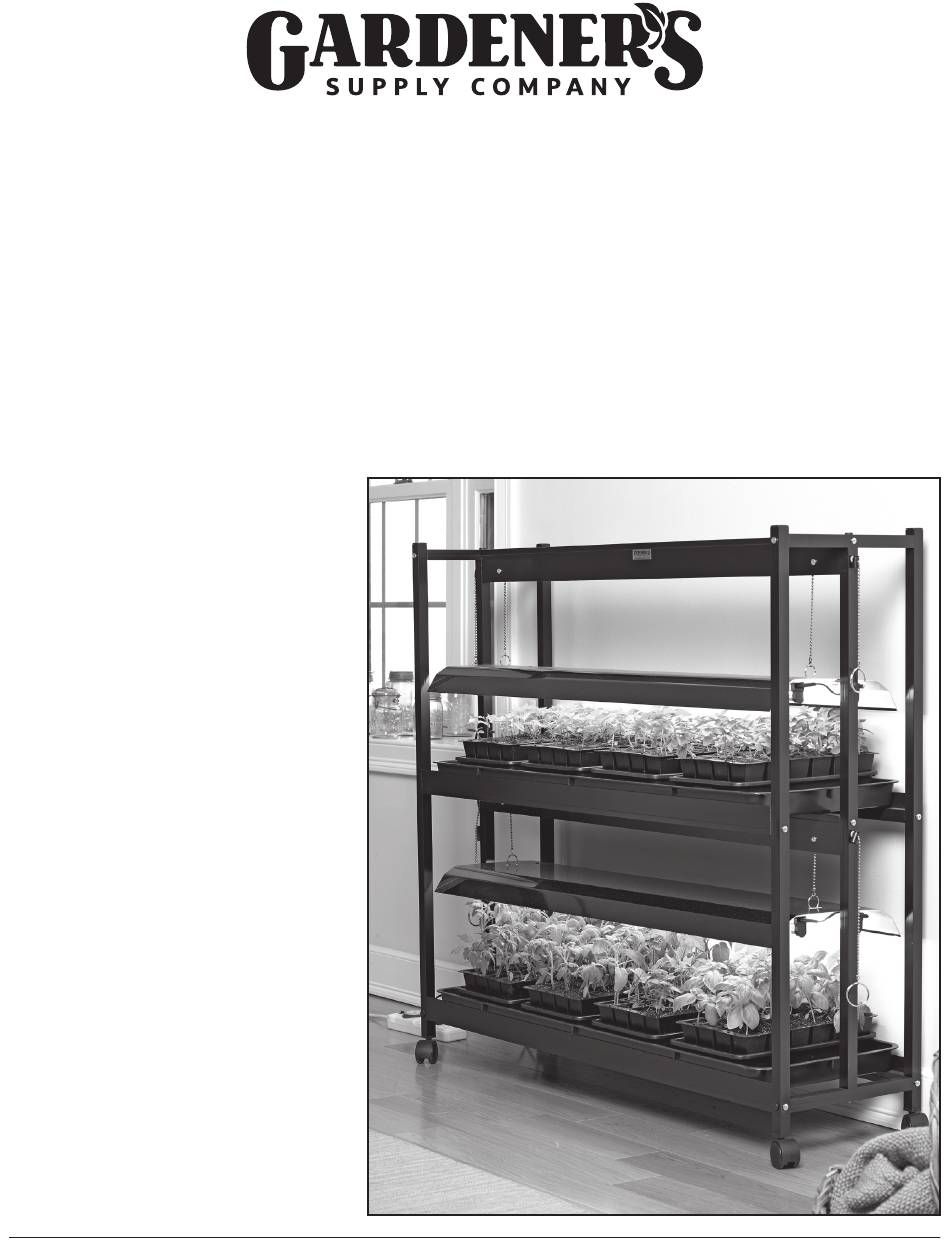

Our Vermont-made SunLite
light for optimum growth. You can start plants from seed, grow herbs, houseplants and even orchids.
Our ultra-light fixtures have a slim profile to give plants plenty of headroom. They measure a full 14" wide to ensure even light
coverage across each shelf. Inside, there are two T-5 bulbs that produce an abundance of brilliant, full-spectrum light. These bulbs use
45% less energy than standard fluorescent bulbs and provide up to 7,500 hours of use.
Each fixture has its own pull chain for easy height adjustments, plus electronic ballasts to eliminate buzzing. This complete light
garden includes frame and fixtures, T-5 bulbs, watertight trays and casters.
With the help of one other person, you can assemble your 2-Tier SunLite
then assemble the Lights and hang them in the frame.
Before you begin, identify and organize all the parts on a flat, clean surface and gather your tools. As you organize the parts, note
that most pieces are labeled with a part number. Follow the illustrations closely to be sure the parts are oriented correctly as you put
them together. Assembly begins on the next page.
Parts Included
Qty.
Frame:
S1L Vertical Bars 2
S1R Vertical Bars 2
S2 Vertical Bars
S3T Side Bars
S3B Side Bars
A3 Bars
A4 Shelf Bars
Poly Trays
Lights:
Light Fixtures
Ballasts
T-5 Light Tubes
6' Electrical Cords 2
Link Cords
Hardware: Ball Chains
Chain Connectors 8
Large Split Rings 4
Small Split Rings 4
Chain Grips
3/4" Bolts
2" Bolts
End Plugs
Bolt Caps
Casters
Caster Inserts
Tools Required
Phillips screwdriver
Hammer or rubber mallet
Needle-nose pliers
Twist tie, optional
Note: Assembly is easier
with two people
8590049

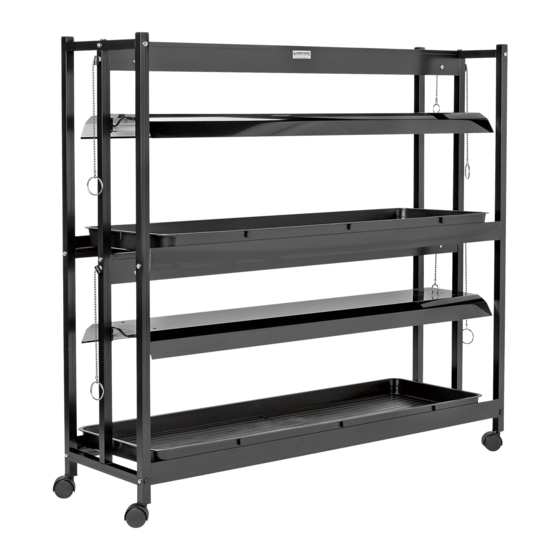

Standard 2-Tier SunLite
Gardens employ the latest in lighting technology to give your plants the ideal quality and intensity of
®
2
2
2
2
4
2
2
4
4
2
4
4
2
22
4
6
4
4
Garden
®
Garden in about an hour. Put the Frame together first,
®
0706S Rev 12/14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gardener's SunLite 8590049
Summary of Contents for Gardener's SunLite 8590049
- Page 1 Standard 2-Tier SunLite Garden ® Our Vermont-made SunLite Gardens employ the latest in lighting technology to give your plants the ideal quality and intensity of ® light for optimum growth. You can start plants from seed, grow herbs, houseplants and even orchids. Our ultra-light fixtures have a slim profile to give plants plenty of headroom.
- Page 2 Frame Assembly Side Frame Assembly Figure 1 Step 1. Organize all parts on a flat, clean surface. All frame parts are 3/4" Bolt Bolt Cap End Plug labeled with a letter and number. See corresponding parts list. Use a hammer or rubber mallet to tap an End Plug into the tops of each 3/4"...
- Page 3 Light Fixture Assembly Step 1. Place a Light Fixture Hood upside down on a level surface. This will reveal the Ballast Clips inside (Figure 3). Important: Remove the Light Tubes to prevent breakage during assembly (Figure 4). Reinstall them when the light fixture assembly is complete. Step 2.
- Page 4 Ball Chain Assembly Figure 5 Step 1. Attach a Chain Connector to each Large Split Ring (Figure 5). If necessary, use needle-nose pliers to pry and hold open the Split Rings. Large Split Step 2. Connect one end of each Ball Chain to a Chain Connector on Ring the Large Split Rings.
