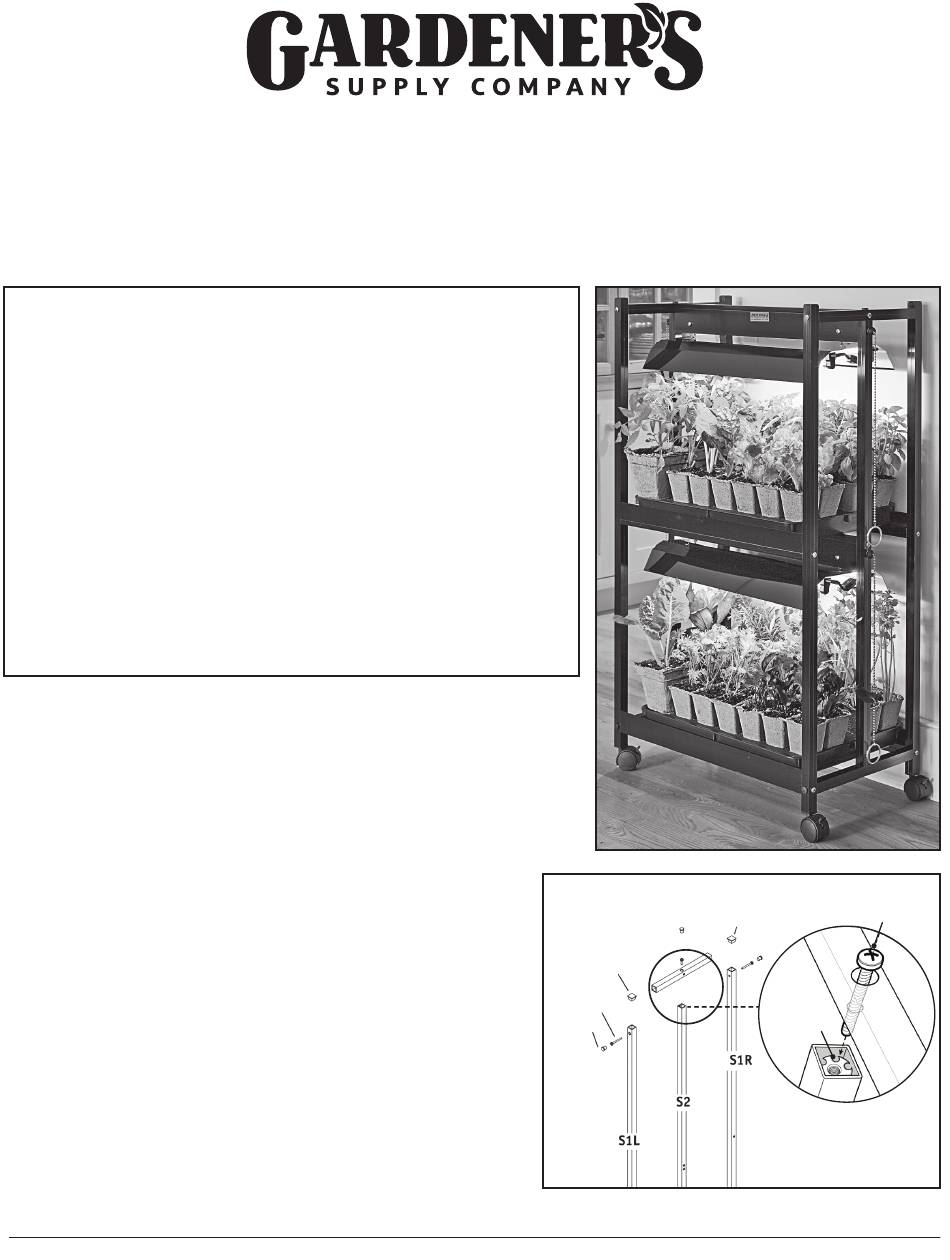

Our Vermont-made Compact SunLite
Each light fixture contains high-efficiency T-5 Fluorescent Tubes that save energy. The only tools you'll need for assembly are a
Phillips screwdriver, and optional needle-nose pliers and rubber mallet.
Parts Included
Frame: S1L Vertical Bars
S1R Vertical Bars
S2 Vertical Bars
S3T Side Bars
S3B Side Bars
A3 Bars
A4 Shelf Bars
Poly Trays
Lights: Light Fixture Hoods 2
Ballasts
T-5 Light Tubes
6' Electrical Cords
Link Cords
Frame Assembly
Please read through all the instructions and identify all parts before
beginning assembly.
Step 1. Organize all parts on a flat, clean surface. All frame parts are
labeled with a letter and number. See parts list. Use a hammer or
rubber mallet to tap an End Plug into the tops of each S1R (right)
and S1L (left) Vertical Bar. Important note: The top of the S1R and
S1L Bars have bolt holes through 2 sides of the bar. The bottom of
the bars have bolt holes in all 4 sides of the bar.
Step 2. Take an S2 Vertical Bar and find the nut insert located inside the
end (Figure 1 detail). Using the shorter 3/4" bolt, connect an S3T
Bar to the top of the S2 Vertical Bar by screwing the bolt through
the S3T bar and into the nut insert (Figure 1 detail). The Bolt will be
fully inside the S3T when tightened. Important note: Orient the the
S1L and S1R Vertical Bars so that the largest holes at the bottom
face the outside of frame.
Tip: Make sure the bolt enters the nut insert straight. If the nut insert
is off center, use a hammer and a bolt to tap the sides of the nut
insert gently until it is level.
Tip: You may need to loosen bolts as you go through the rest of the
assembly, so only partially tighten them for now.
39-414, 40-161
Compact 2-Tier and 3-Tier SunLite
Gardens deliver bright, full-spectrum light that seedlings need for healthy vigorous growth.
®
2-Tier 3-Tier
Qty.
Qty.
Hardware:
2
2
Ball Chains
2
2
Chain Connectors 4
2
2
Split Rings
2
2
Chain Grips
2
2
3/4" Bolts
2
3
2" Bolts
4
6
End Plugs
2
3
Bolt Caps
Casters
3
Caster Inserts
4
6
4
6
Tools Required
2
3
Phillips screwdriver
2
3
Needle-nose pliers (optional)
Rubber mallet or hammer
(optional)
2-Tier 3-Tier
Qty.
Qty.
4
6
6
4
6
4
6
2
2
22
28
4
4
6
6
4
4
4
4
Figure 1
End Plug
2" Bolt
over please
Garden
®
Side Frame Assembly — Top
End Plug
S3T
Nut insert
3/4" Bolt
S3T
S2
Detail
0241S Rev 02/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gardener's SunLite 39414
Summary of Contents for Gardener's SunLite 39414
- Page 1 Compact 2-Tier and 3-Tier SunLite Garden ® Our Vermont-made Compact SunLite Gardens deliver bright, full-spectrum light that seedlings need for healthy vigorous growth. ® Each light fixture contains high-efficiency T-5 Fluorescent Tubes that save energy. The only tools you’ll need for assembly are a Phillips screwdriver, and optional needle-nose pliers and rubber mallet.
- Page 2 Figure 2 Side Frame Assembly — Bottom Step 3. Using a 2” bolt, attach an S3B Bar to the bottom of the S2 Vertical Bar (Figure 2). Step 4. Connect an S1L and an S1R Vertical Bar to the ends of the S3B (Figure 2).
- Page 3 Assembling the Light Fixture Important: Before installing the Ballasts, remove the T-5 Light Tubes by twisting them gently out of the sockets. Set them aside for now. The Light Tubes are fragile and may break if left inside the ballasts during installation. Step 1.
- Page 4 Adjusting the Light Fixture Height Step 1. Check the Ball Chains to make sure they are correctly positioned and move freely through the Chain Grips when pinched. Step 2. Adjust the height of the Light Fixture one side at a time. Pinch the Chain Grip and pull the chain out vertically (Figure 5). This will allow you to adjust the height of the Fixture with the least amount of resistance and protect the Chain Grip from abrasion.
