Werner Schnorrenberg - DC4KU
www.dc4ku.darc.de
06.11.2021

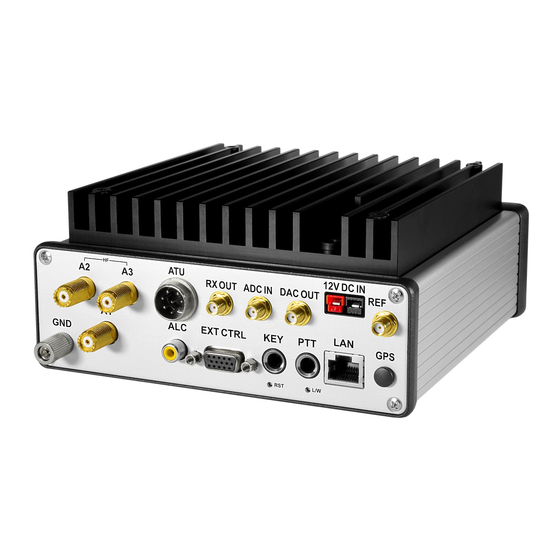

SunSDR2 DX - Test Report
Based on the popular SDR transceiver SunSDR2 Pro, the manufacturer Expert Electronics offers the
"SunSDR2 DX". This transceiver operates as a direct-sampling Software Defined Radio (SDR) with a
high-resolution 16Bit A/D converter (LTC 2209), at a sampling rate of 160 MS/s. All amateur radio
bands from 160 to 6m
as well as the 2m VHF band (95...148MHz) are supported. The
(0.09...65MHz)
transmit power is 100W on shortwave, 50W on 6m and 7W on 2m. Changes compared to the
SunSDR-Pro concern the filters. A new high-pass filter from 100 MHz is built in, which leads to a
better sensitivity on VHF. For HF, 9 individual, optimized band-pass filters or a single low-pass filter
from 65 MHz are available. This combination is complemented by an additional low-pass filter from
70 MHz, which improves the dynamic range on shortwave (HF) and 6m.
The transmitter is designed to be completely independent of the receiver with its own quadrature
oscillator, allowing flexible half or full duplex operation. Together with the ExpertSDR2/3 software,
two independent main receivers and two independent sub-receivers in the same band range are
possible. Furthermore, the display of a wide spectrum of up to 80 MHz is possible.
The SunSDR2 DX is controlled via an Ethernet cable, which is connected either directly to a PC or to
the DSL router in the home network. With the help of the new ExpertSDR3 software and a "cloud"
provided free of charge by EE, the SunSDR2 DX can be easily operated worldwide from the Internet.
Complicated port forwarding and DynDNS are now a matter of the past.

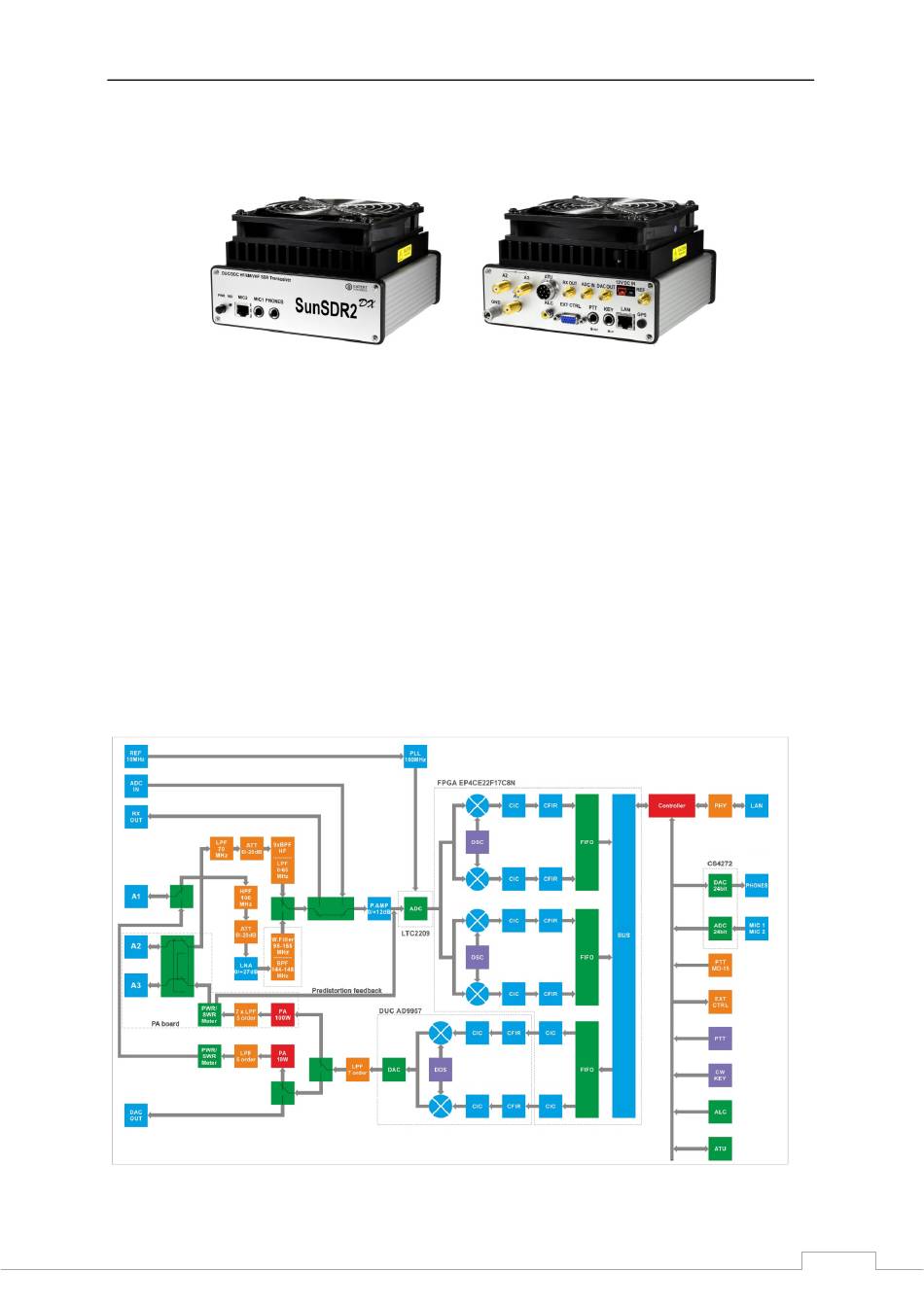

Block diagram SunSDR2 DX
1
