Expert Electronics DUC/DDC SDR Series Quick Start Manual

Duc/ddc hf/6m/vhf sdr transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

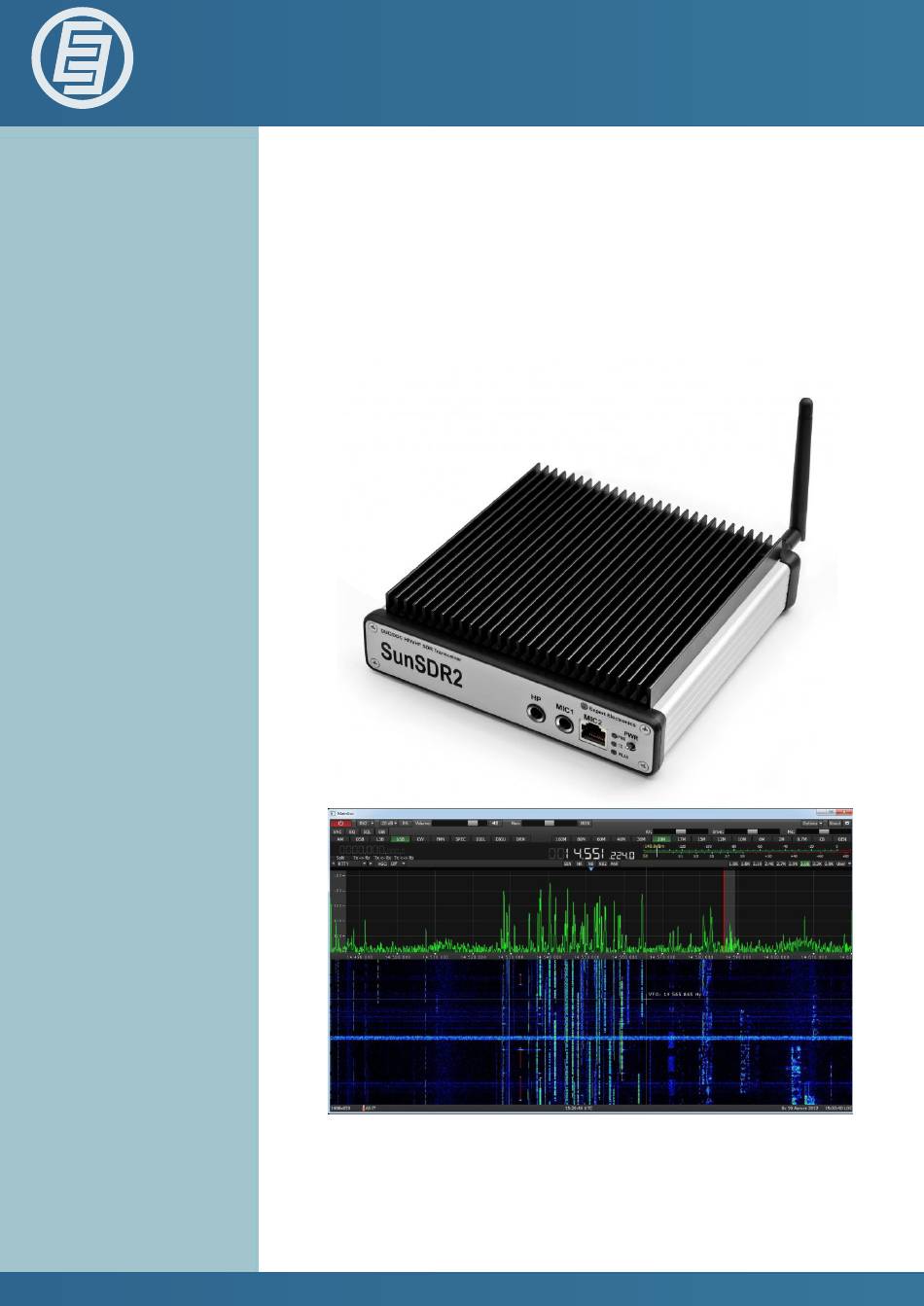

EXPERT
ELECTRONICS
Key Features:
- Direct Digital conversion
- High Dynamic Range
- Wide band bandscope
up to 80MHz
- HF/6M/VHF
- Output power 20W (HF)
- Output power 10W
(6M, VHF)
- LAN interface
- Embedded WLAN router
- Remote control
- Small size
Expert Electronics LLC.
DUC/DDC HF/6M/VHF
SDR transceiver
SunSDR2
DUC/DDC SDR Series
Quick Start
Version 1
19 Febrary 2013
www.sunsdr.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUC/DDC SDR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Expert Electronics DUC/DDC SDR Series

Summary of Contents for Expert Electronics DUC/DDC SDR Series

  • Page 1 EXPERT DUC/DDC SDR Series ELECTRONICS 19 Febrary 2013 DUC/DDC HF/6M/VHF Key Features: SDR transceiver - Direct Digital conversion SunSDR2 - High Dynamic Range - Wide band bandscope up to 80MHz - HF/6M/VHF - Output power 20W (HF) - Output power 10W...

  • Page 2: Table Of Contents

    Expert Electronics DUC/DDC SDR Transceivers Series Contents Introduction ....................... 2 1. Connection ......................3 2. Transceiver Ethernet-connection setting .............. 4 3. IP address setting in Windows Vista/7 ..............6 4. IP address setting in Windows XP ................ 8 5. Transceiver IP address change ................10 6.

  • Page 3: Introduction

    Expert Electronics DUC/DDC SDR Transceivers Series software. The same process is observed while transmitting. Forming of necessary signal modulation Introduction type is made by digital method right at the required Please, spend 5 minutes on reading this document and frequency. From all the classical nodes there is only...

  • Page 4: Connection

    Expert Electronics DUC/DDC SDR Transceivers Series Information about OpenGL support by video card can be 1. Connection got at the sellers when buying the PC. Microphone or Telephone headset can be either of the For starting SunSDR2 transceiver work the following...

  • Page 5: Transceiver Ethernet-Connection Setting

    Expert Electronics DUC/DDC SDR Transceivers Series mode and connection to WLAN access point, making wireless connection out of one or several computers. 2. Transceiver Ethernet-connection setting Direct connection to PC via built-into transceiver WLAN- unit(without access point) as it is showed in Figure 2.1.
  • Page 6 Expert Electronics DUC/DDC SDR Transceivers Series case you will need to change SunSDR2 transceiver IP address. In this scheme computer is a WLAN access point (or Wi- Fi router) in Access Point (AP) mode, SunSDR2 WLAN- unit in AP Client mode.

  • Page 7: Ip Address Setting In Windows Vista/7

    Expert Electronics DUC/DDC SDR Transceivers Series Choose network connection with SunSDR2 connected to it as it is showed in Figure 3.3., then 3. IP address setting in Windows Vista/7 push the right button of the mouse on the icon and choose Properties in the drop down window.
  • Page 8 Expert Electronics DUC/DDC SDR Transceivers Series 5) Set IP-address 192.168.16.50 and subnet mask 255.255.255.0 as it is showed in Figure 3.5. These parameters are spread to the network card of PC. Instead number 50 of IP-address you can set any number, except 255 and 200.

  • Page 9: Ip Address Setting In Windows Xp

    Expert Electronics DUC/DDC SDR Transceivers Series the icon and choose Properties in the drop down menu (view Figure 4.3). 4. IP address setting in Windows XP 1) Push Start in the left lower corner in Windows and choose Control panel. Then Network and Internet connection.
  • Page 10 Expert Electronics DUC/DDC SDR Transceivers Series 5) Set IP-address 192.168.16.50 and subnet mask 255.255.255.0 as it is showed in Figure 3.5. These parameters are spread to the network card of PC. Instead number 50 of IP-address you can set any number, except 255 and 200.

  • Page 11: Transceiver Ip Address Change

    Expert Electronics DUC/DDC SDR Transceivers Series 5. Transceiver IP address change 1) Launch ExpertSDR2 software and open settings menu Options -> SDR. Put the current transceiver IP-address field Address, it’s 192.168.16.200 by default. Settings window is showed in Figure 5.1.

  • Page 12: Wlan Unit Ip Address Change

    Expert Electronics DUC/DDC SDR Transceivers Series write network addresses range. For example we put them as it is showed in Figure 6.3 (outlined in red) 6. WLAN unit IP address change and push Save. WLAN unit IP – address by default is 192.168.16.254. In this part two examples how to change IP-address for 192.168.1.254 will be showed.

  • Page 13: Sunsdr2 Wlan - Unit Setting In Ap Client Mode

    Expert Electronics DUC/DDC SDR Transceivers Series 7. SunSDR2 WLAN – unit setting in AP Client mode 1) Set transceiver IP-address in access point local net range. 2) Connect to transceiver SunSDR2 via WiFi. 3) Enter WLAN-unit settings http://192.168.16.254 internet browser. Login: admin, password: admin.

  • Page 14: Software Interface Description

    Expert Electronics DUC/DDC SDR Transceivers Series 8. Software interface description prominent letters . Next to «STEP» button you can choose frequency tuning step (view Figure 8.3). In figure 8.1 there is a working software panel. Figureк 8.3 – Places on the panel, showing transceiver frequency tuning ·...
  • Page 15 Expert Electronics DUC/DDC SDR Transceivers Series · The following buttons are functions of transceiver parameters operating control: volume control - «Volume»; microphone level - «Mic»; output power level - «Drive»; monitoring - «Mon»; HF manual amplification – RF. AGC rate is regulated by a separate field «AGC».(view Figure 8.9)
  • Page 16 Expert Electronics DUC/DDC SDR Transceivers Series Figure 8.13 – Attenuator and preliminary amplifier activation Transceiver gives a possibility to watch simultaneously Figure 8.11 – Equalizer parameters settings window two radio bands and also receive signals simultaneously Equalizer window can be moved easily along the screen from two receivers.
  • Page 17 Expert Electronics DUC/DDC SDR Transceivers Series Figure 8.15 – Horizontal arrangement of receivers’ windows · In Figure 8.16 vertical arrangement of one receiver above the other is showed. Such arrangement is convenient when an old big monitor with 4:3 side correlation is used or a modern monitor is put vertically deliberately.

  • Page 18: Conclusion

    More thorough description of all settings and capabilities will be described in the full user manual. Wish you success in mastering SDR\DDC-radio! 19.02.2013 Expert Electronics LLC.
