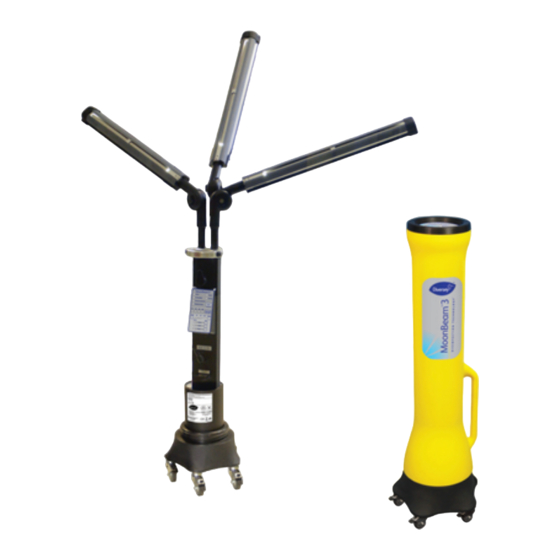

MoonBeam™3
Handling
If you have any questions, comments or need to reorder
this set of cards, please call 1-800-558-2332
© 2020 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MoonBeam 3 and is the answer not in the manual?

Questions and answers

Related Manuals for diversey MoonBeam 3

Summary of Contents for diversey MoonBeam 3

  • Page 1 MoonBeam™3 Handling If you have any questions, comments or need to reorder this set of cards, please call 1-800-558-2332 © 2020 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)

  • Page 2: Introduction Overview

    To view the complete Users Manual for MoonBeam3 - Click Here. To view our complete video library for MoonBeam3 in our Digital Tool Resource - Click Here. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 3 Make sure the arrow is pointing to the door and is less than 6” away. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 4 The usual issue with a MoonBeam3 power not coming on or illuminated where the button is, is that the batteries may be depleted. Try replacing the 4 AA batteries. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 5 It is possible there is a bulb that is not secure, or came loose during handling. Rotate or flip the bulb 180 degrees and re-secure, and it should work. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 6 This feature shall not be used in areas with multiple entrances to the space as it may present a risk of exposure! Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 7 3. Make sure it clicks when inset so it is secure If that does not solve then swap one of the bulbs between the problem bulb and re-secure both, the issue should be resolved. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 8 MB3 and are shown in the photos. If needed, tighten these lightly. Lightly tighten the fastener for the specific telescoping tube. Small adjustments are necessary. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 9 Base Unit, the MoonBeam3 is now ready for the targeted disinfection process to begin. To start the disinfection process, press the Start button on the Remote Cover user interface. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 10 Twist the cone counter- clockwise and remove by gently lifting up and clear of the base – set it aside in a safe spot. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 11 Tighten until just snug. Don’t overtighten. Unlock wheel caster to move unit. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 12 600 hours X 60 minutes per hour = 36,000 minutes of operation before replacement. That is 12,000 three-minute disinfection cycles. Bulb Replacement as shown in this video: Click Here Wear Gloves! Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 13 MoonBeam unit. Let the bulbs cool, if recently run. When handling light arm and replacing/removing bulbs, take care not to damage the clear plastic bulb covering. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 14 It will release with a “snap.” Gently jiggle the bulb to clear the light arm opening. Dispose of used bulb according to facility protocol. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 15 Check that cap is fully seated on light arm. To verify successful bulb installation, power on the MoonBeam unit. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 16 If they are in then there is little need to pull the caps off.  In the second image below, you can see how they position the bulbs to keep secure as well as a diagram to the right. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 17 The diagram on the right shows the film between the positioner and the flat side of the end cap to ensure a secure application. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)

  • Page 18: Troubleshooting

    Sentry is configured to be ignored, to be ignored. press the Base Unit’s Ignore button four times for it to be acknowledged for use. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 19 Test fails on the Base Unit, Remote Cover or Sentry. The Base Unit will Stuck button on control panel Contact Technical Support. not enter ready state Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 20 It may need to be replaced if it is removed. Contact your representative if needed. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
  • Page 21 Positioning the Arms: Placement of the base with the control panel away from the areas being exposed provides the greatest control of arm positioning. Always wear personal protective equipment. © 2018 Diversey, Inc. All Rights Reserved. 87309-CRD en (20/334)
