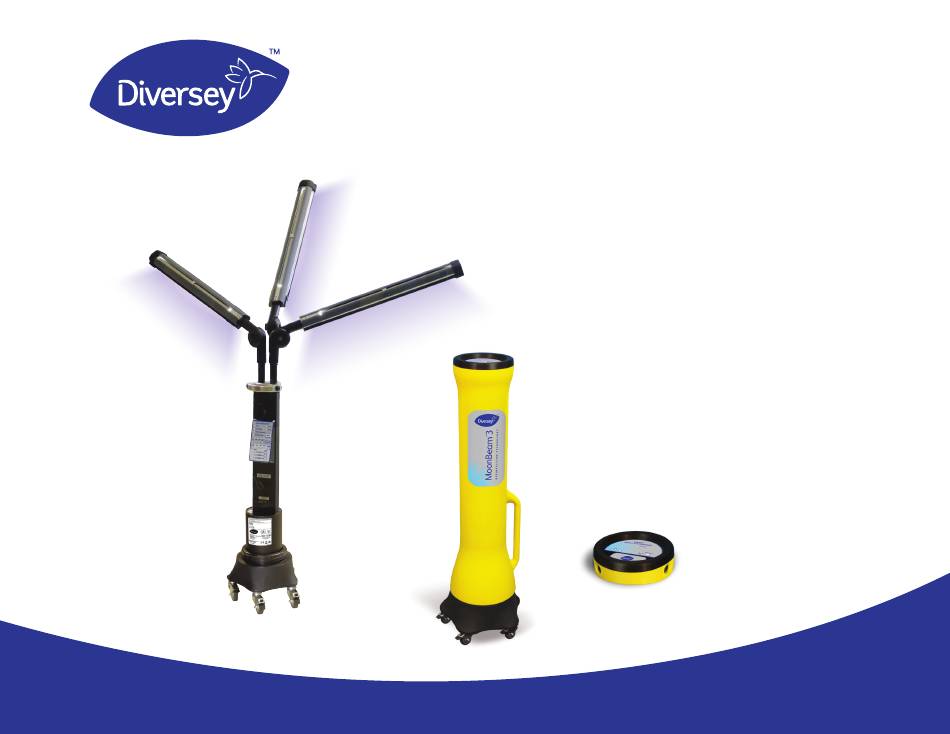

- Page 1 D I S I N F E C T I O N T E C H N O L O G Y © User’s Manual www.diversey.com © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
- Page 3 No part of this document may be copied or reproduced in any form by any means without prior written consent of Diversey, Inc. Although every effort has been made to ensure the accuracy of this document, Diversey, Inc. assumes no responsibility for any errors that may appear.
- Page 4 This page intentionally left blank...
-
Page 5: Table Of Contents
Portable and Mobile RF Communications Equipment and the MoonBeam3 ............................17 Disposal Requirements ................................................18 Location of Safety and Compliance Labels ........................................19 Serial Number, Configuration, Date Code and Modification Codes ...............................20 Limitations for Use ..................................................20 © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... - Page 6 MoonBeam3 UV-C Bulb Status .............................................37 System User Safety Controls ..............................................38 Sentry™ Assist Technology ..............................................39 MoonBeam3 with Sentry Instructions ..........................................40 System Test for User Safety Controls ..........................................43 © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
- Page 7 ................................................51 Status Indicators ..................................................51 Troubleshooting Common Problems ..........................................51 Appendix A: Hazardous Material Information ........................................53 Materials of Construction ...............................................53 Manufacturing .....................................................53 Appendix B: Specifications ................................................55 Specifications ....................................................55 © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
-
Page 8: Purpose And Scope
General product information can also be requested by sending an email to: Email: www.sdfhc.com/contact-us Please include postal mailing address and telephone number in email message. Basic product information is returned via email unless otherwise requested. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 9: Warnings, Precautions And Limitations For Use
Alerts the user to the presence of components that may reach high temperatures that may be of sufficient temperature to cause a burn. Alerts the user to the presence of ultraviolet light. Alerts the user to refer to the User's Manual. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 10: Post-Disinfection Warnings
If UV-C bulb reflector heads must be handled immediately after a disinfection cycle, the user should handle them by holding the rubberized end cap or foam heat tape. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... - Page 11 WARNING: This device is intended for use on pre-cleaned, non-porous, hard surfaces and is not intended as a replacement for liquid chemical disinfectants, sanitizers or sterilizers. See intended use under Indications for Use section. PRECAUTION: Do not use any attachments not recommended by Diversey, Inc. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133)
-
Page 12: Voltage Warnings And Precautions
WARNING: The MoonBeam3 must be connected to a grounded electrical outlet to maintain grounding reliability. PRECAUTION: The electrical installation of the room in which MoonBeam3 will be operated must comply with the local electrical wiring standards. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 13: Location Warnings And Precautions
PRECAUTION: MoonBeam3 is intended for use on a level floor. For additional stability prior to operation, the caster wheels may be positioned outwards and locked by depressing the foot pedal on each. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 14: Cleaning Precautions
PRECAUTION: Never use abrasive materials. PRECAUTION: Never use any disinfecting agents that are corrosive. WARNING: Diversey makes no claims regarding the efficacy of the listed chemicals or methods as a means of controlling infection. Consult your hospital’s infection control officer or epidemiologist. -
Page 15: Potential For Radio Frequency Interference On Device Operation
The customer or the user of the MoonBeam3 should assure that it is used in such an environment. Portable and mobile RF communications equipment can affect MoonBeam3. The use of accessories, transducers and cables other than those specified by Diversey may result in increased EMISSIONS or decreased IMMUNITY of the MoonBeam3. - Page 16 It may be necessary to take mitigation measures, such as re-orienting or Flicker emissions Complies relocating the MoonBeam3 or shielding the location. IEC 61000-3-3 © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
- Page 17 NOTE UT is the a.c. mains voltage prior to application of the test level. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
- Page 18 MoonBeam3. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
-
Page 19: Portable And Mobile Rf Communications Equipment And The Moonbeam3
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 20: Disposal Requirements
Additional guidance on cleaning up broken lamps may be obtained at www.epa.gov/cfl Recycle all spent mercury- containing bulbs and lamps. A list of lamp recyclers and state regulatory disposal information can be found at www.lamprecycle.org. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 21: Location Of Safety And Compliance Labels
Location of Safety and Compliance Labels Diversey, Inc. is in compliance with various regulations, details of which are listed in the Specifications section. The MoonBeam3 safety and compliance label, shown below, is located on the Base Unit column below the user interface controls as well as the Remote Cover and Sentry units. -
Page 22: Serial Number, Configuration, Date Code And Modification Codes
Hard-surface Disinfection: The MoonBeam3 UV-C Disinfection device is intended for the disinfection of pre-cleaned non-porous hard surfaces. This device should not be used on any other objects or surfaces and is not designed to disinfect semi-critical or critical medical devices. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 23: Indications For Use
The intention is to allow the user to position the system and select a duration for disinfection of a surface. Operation of the system is to take place outside of sterile fields and by personnel performing their duties outside of sterile fields. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... - Page 24 This page intentionally left blank...
-
Page 25: Chapter 1: Introduction
Chapter 1: Introduction Welcome Thank you for your purchase of the Diversey MoonBeam3 Disinfection Technology. We are pleased that you chose the MoonBeam3. We are confident that it will provide safe and effective additional reduction of contamination on pre-cleaned and disinfected surfaces to give additional assurance for your facility. - Page 26 This page intentionally left blank...
-
Page 27: Chapter 2: Setting Up The System
Do not place the system near heat sources such as radiators or air ducts or in a location subject to direct sunlight, excessive dust, mechanical vibration or shock. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 28: Initial Set Up
Note: The MoonBeam3 Base Unit does not have a power button. WARNING: Disconnect the power cord from the wall outlet before servicing to avoid the possibility of electric shock. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -

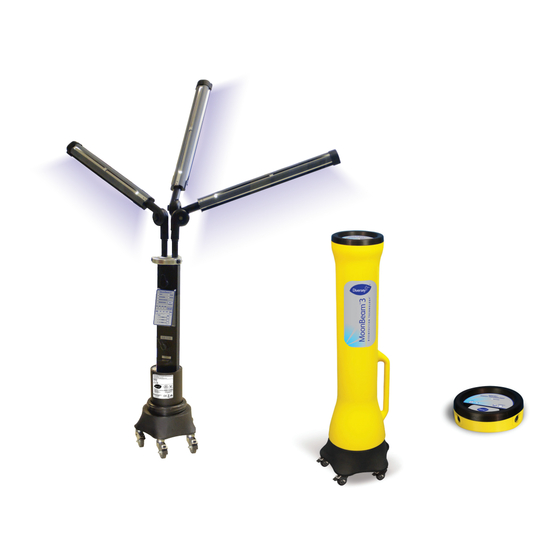

Page 29: Identifying The Components
MoonBeam User's Manual Identifying the Components MoonBeam3 Components MoonBeam3 Base Unit MoonBeam3 Remote Cover © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 30: Moonbeam3 Accessory
MoonBeam User's Manual MoonBeam3 Accessory MoonBeam3 Sentry Assist Technology The Sentry Assist Technology (SAT) module(s) are optional. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 31: Chapter 3: Operation Of Device
MoonBeam3 is intended for use on a level floor. The base unit stability must be verified prior to leaving unattended for the disinfection cycle. For additional stability prior to operation, the caster wheels may be positioned outwards and locked by depressing the foot pedal on each. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... - Page 32 (with its built-in motion sensors) is pointed towards the room’s main door. MoonBeam3 with Heads Positioned for MoonBeam3 with Heads Positioned for Disinfection in a Patient’s Bathroom Disinfection in a Patient’s Room © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
-
Page 33: Moonbeam3 Instructions
13. Replace the Remote Cover on the Base Unit. Optionally, roll the Base Unit and carry the Remote Cover separately to the next disinfection location. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 34: System Power And Activation
Power is now activated in the MoonBeam3 and the Power indicator is shown as solid green on the front panel user interface. Note: The MoonBeam3 Base Unit does not have a power button. MoonBeam3 Base Unit (Front Panel) User Interface © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... - Page 35 Base Unit. Carry and place the Remote Cover outside of the room and place it against the closed door. Ensure that the Point Toward Door arrow on the Remote Cover user interface is in the direction towards the closed door. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
- Page 36 Process Complete indicator will be shown in solid green. Note: Disinfecting ultraviolet (UV-C) light cannot penetrate through glass and it is safe to view it through the glass. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
- Page 37 Note: If the Remote Cover is not powered off by the user, the Battery indicator and Process Complete indicator will remain illuminated until the Remote Cover powers off automatically after 10 minutes. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
- Page 38 PRECAUTION: Avoid spilling fluids on any part of the MoonBeam3. If spills do occur, immediately disconnect MoonBeam3 from the power source and contact technical support for guidance in cleaning the MoonBeam3. PRECAUTION: Do not use any attachments not recommended by Diversey, Inc. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133)
-
Page 39: Moonbeam3 Uv-C Bulb Status
5 hours of remaining life. A bulb status of red indicates that it is no longer functioning and must be replaced for continued operation. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 40: System User Safety Controls
Up to two Sentry Assist Technology units can be utilized during disinfection processing. Additionally, the Sentry is colored as high-visibility safety (caution) yellow. Note: Sentry Assist Technology is available as an option for MoonBeam3. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 41: Sentry Assist Technology
Press the Power Button on the Sentry user interface and the Battery indicator will be shown as solid green. Note: If the Battery indicator is shown in flashing yellow, this indicates a low battery condition. See Battery Replacement section. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 42: Moonbeam3 With Sentry Instructions
5. If desired, change the Run Time Seconds on the Base by pressing the button to cycle through the available durations (90, 180, 300 or 600). © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... - Page 43 NOTE: If a Sentry needs to be disconnected from a Base Unit, press and hold the Ignore button on the Sentry. This function removes the connection of the Sentry to a Base Unit. NOTE: A Sentry can be connected with only one Base Unit. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
- Page 44 Sentry should ideally be placed in a position to sense access to the room but not sensing personnel outside the room. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
-
Page 45: System Test For User Safety Controls
When both of the sensors have been activated the Motion and Ready LEDs will both blink for 3 seconds and the Remote Cover will exit sensor test mode. You may also exit sensor test mode at any time by pressing the Power button. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... - Page 46 When all of the sensors have been activated the Motion LED will blink for 3 seconds and the Sentry will exit sensor test mode You may also exit sensor test mode at any time by pressing the Power button. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
-
Page 47: Chapter 4: Maintenance
Web Site: www.sdfhc.com NOTE: The use of unapproved parts will void the Diversey warranty for the MoonBeam3 unit. No user-serviceable parts inside. Removal of labels, encasements or fasteners voids the warranty. Only replacement parts sold by Diversey, Inc. can be serviced by user. -
Page 48: Procedures For Disposal Of Uv-C Bulbs
Check your local or regional specific occupational safety standards for any additional procedures or precautions required for the handling of broken UV-C bulbs. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 49: Bulb Replacement
A bulb status of Red indicates that it is no longer functioning and must be replaced for continued operation. Note: Use of any bulb other than that expressly and directly purchased from Diversey or a fully authorized source will cause failure in the disinfection cycle. -
Page 50: Battery Replacement
Replace with four new AA alkaline batteries. Replace battery compartment cover and insert and tighten the two screws to secure it in place. Batteries have local requirements for discarding. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 51: Fuse Replacement
Five 16 Disinfectant Cleaner and Oxivir® Plus Disinfectant Cleaner ® Accel Prevention and Intervention Concentrates and RTU ® Oxivir RTU products ® Isopropyl Alcohol, 70% solution © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... -
Page 52: Cleaning Precautions
PRECAUTION: Do not allow the cleaning agent to remain on the device surface. Wipe off immediately with a lint- free cloth moistened with water. WARNING: Diversey makes no claims regarding the efficacy of the listed chemicals or methods as a means of controlling infection. Consult your hospital’s infection control officer or epidemiologist. -
Page 53: Chapter 5: Troubleshooting
Sentry is configured to be ignored, press the Base Unit’s Ignore button four is not powered or configured to times for it to be acknowledged for use. be ignored. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... - Page 54 Contact Technical Support. the Base Unit, Remote Cover or Sentry. The Base Unit will Stuck button on control panel Contact Technical Support not enter ready state © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
-
Page 55: Appendix A: Hazardous Material Information
Ozone-depleting substances such as chlorofluorocarbons, methyl chloroform and carbon tetrachloride. Manufacturing During manufacturing operations that produce Diversey products (including packaging), no ozone depleting substances (such as chlorofluorocarbons, methyl chloroform and carbon tetrachloride) are used. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) - Page 56 This page intentionally left blank...
-
Page 57: Appendix B: Specifications
100-120V~, 3.2A, 50/60Hz, 200-240V~, 1.6A, 50/60Hz Regulatory: This product satisfies the Class A limits of IEC60601-1-2. Conforms to IEC/EN/UL 61010-1, Certified to CAN/ CSA Std C22.2, Nos. 61010-1. © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27... - Page 58 MoonBeam User's Manual This page intentionally left blank © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
- Page 60 USA, Diversey employs approximately 8,800 people globally, generating net sales of approximately $2.7 billion in 2018. For more information, visit www.diversey.com or follow us on social media. www.diversey.com © 2019 Diversey, Inc. All Rights Reserved. 78745-MAN en (19/133) NAM-EN - Version 2.3.27...
