Summary of Contents for diversey Taski swingo 350B

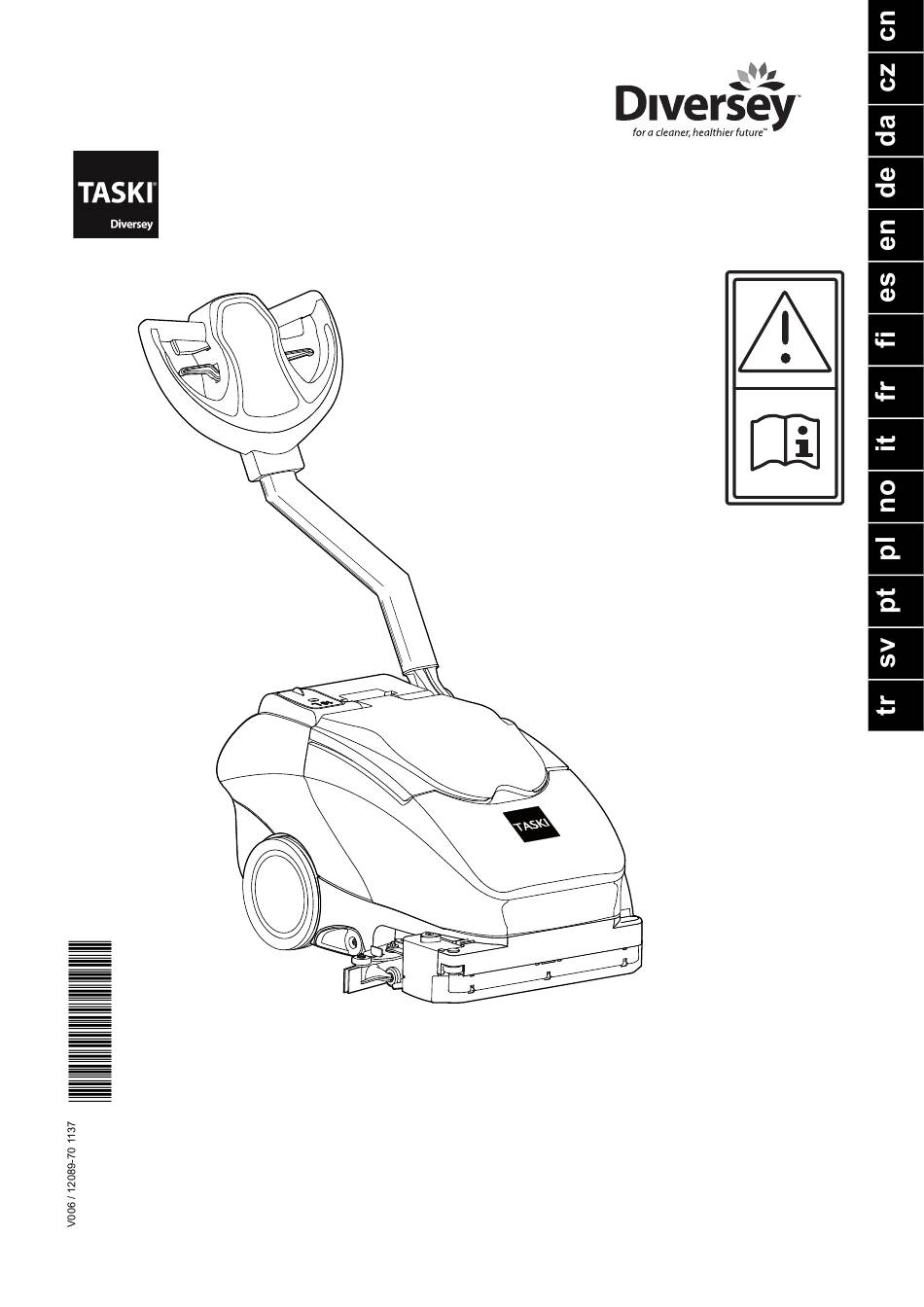

- Page 1 swingo 350B...
-
Page 2: Table Of Contents
Intended use of machinery authorised by Diversey, who are experienced in all relevant safety The TASKI swingo 350B is a scrubber dryer that is designed for commercial use regulations. (for example, in hotels, schools, hospitals, factories, shopping centres, offices, Minimum requirement for the power supply cord H05VV-F2x0.75. -
Page 3: Translation Of The Original Eu Declaration Of Conformity
Refer to the technical information on page 51. Manufacturer: Diversey, 9542 Münchwilen - Switzerland Applicable EC Directives: Directive 2006/42/EC of the European Parliament and of the Council dated 17th May 2006 regarding machines and for the modification of Directive... -
Page 4: Overview
Overview 35 34 Machine handle Feed line for the electronic lines for the controller Operating lever (brush drive) Solution tank Wiper operating lever Holder for the battery charger cable Central steel pillar Battery disconnection socket Tank lid Parking support Float Locking handle for squeegee Drainage hole Deflection roller... -
Page 5: Preparation For Operation
Batteries may only be installed or dismounted by customer • Check that the machine is switched off. service personnel or specialists approved by Diversey who are • Disconnect the battery from the machine using the battery disconnection aware of all the safety regulations that apply here! socket. -
Page 6: Start Of Operation
• Remount the brush holder and lock it. Instructions on the product’s Tank capacity Product amount packaging per tank filling 0.5% 50ml to 10l water 50ml = 0.5l • Add the product measured with the dosing cup to the water in the solution tank. - Page 7 One - Button Function Working with the wiper When the machine is switched off using the main switch, the current switch • Pull on the action lever to lower the wiper. states of the individual functions are stored and will be available once again when the machine is switched on again.
-
Page 8: End Of Operation
End of operation Solution tank • Switch the machine off. • Stop the flow of solution. After end of operation Rinse out the tank well with water only • Drive a few metres so that the tool rotates further for a short time. You will Fill the solution tank with water. -
Page 9: Service, Maintenance And Care
Cleaning the tool • Remove the hoses from the cover. • Switch the machine off. • Stand the machine on the parking support. • Remove the cover (1) and the water distributor (2). • Clean the cover (1) and the water distributor (2) under running water. -
Page 10: Malfunctions
Service intervals Cleaning or replacing the float (indication for full recovery tank) TASKI scrubber dryer machines are built to the highest quality standards, and • Switch the machine off. their safety is checked in the factory and by authorised inspectors. Electrical and mechanical parts are subject to wear or aging if used for long periods of Disassembly: time. -
Page 11: Transport
Transport Accessories Caution: The machine must alwas be carried by two persons! Article CO350.5 7516863 Cylindrical brush standard 38 cm • Disconnect the battery from the machine using the battery disconnection socket. 7516864 Cylindrical brush hard 38 cm • Empty the machine. 7518532 Active-fibre Padroll •...
