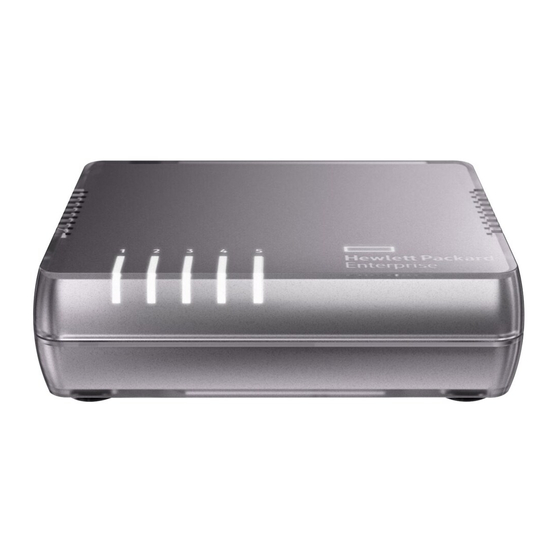

- Page 1 HPE OfficeConnect 1405 v3 Switch Series Getting Started Guide Part number: 5200-0804 Document version: 5W100-20160622...
- Page 2 Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor’s standard commercial license. Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard Enterprise has no control over and is not responsible for information outside the Hewlett Packard Enterprise website. Acknowledgments Intel®, Itanium®, Pentium®, Intel Inside®, and the Intel Inside logo are trademarks of Intel Corporation in the...
-
Page 3: Table Of Contents
Conventions ······················································································································································· 8 Network topology icons ······································································································································ 9 Support and other resources ········································································ 10 Accessing Hewlett Packard Enterprise Support ······························································································ 10 Accessing updates ··········································································································································· 10 Websites ·················································································································································· 11 Customer self repair ································································································································· 11 ... -
Page 4: Preparing For Installation
Preparing for installation The HPE OfficeConnect 1405 v3 Switch Series includes models listed in Table Table 1 HPE OfficeConnect 1405 v3 Switch Series models Product HPE description Alias code JH407A HPE OfficeConnect 1405 5G v3 Switch HPE 1405 5G v3 Switch... -
Page 5: Temperature/Humidity
Temperature/humidity Maintain temperature and humidity in the equipment room as described in "Environmental specifications." • Lasting high relative humidity can cause poor insulation, electricity leakage, mechanical property change of materials, and metal corrosion. • Lasting low relative humidity can cause washer contraction and ESD and cause problems including loose mounting screws and circuit failure. -
Page 6: Installing The Switch
Installing the switch WARNING! Before installing or moving the switch, remove the power adapter. You can install the switch on a horizontal surface, on a wall, or under a table. The procedures for installing the HPE 1405 5G v3 Switch and the HPE 1405 8G v3 Switch are the same. This section uses the HPE 1405 5G v3 Switch as an example. - Page 7 Figure 2 Hole spacing The hole depth and diameter depend on the wall anchors and screws you use. Make sure you can push the anchors to their full depth in the holes. Installation hole spacing varies by switch model, as shown in Table Table 4 Installation hole spacing requirements Product...
-
Page 8: Under-Table Mounting
Figure 4 Wall mounting (1) Mounting hole in the switch chassis bottom Under-table mounting CAUTION: • A network-attached switch with cables mounted upside down can be heavy. Verify that the table is sufficiently strong and of a material that can support the screws that hold the weight of the switch and the attached cables. -
Page 9: Connecting Cables
NOTE: Installation hole spacing varies by switch model. For more information, see Table Connecting cables Connecting network cable Use crossover cable or straight through cable to connect a PC or other network devices to the Ethernet port of the switch. Figure 6 Connecting network cable Connecting the power adapter The HPE 1405 5G v3 Switch and HPE 1405 8G v3 Switch support a power adapter. -
Page 10: Verifying The Installation
Verifying the installation After you complete the installation, verify the following items: • There is enough space for heat dissipation around the switch. • The table, or horizontal surface is stable. • The correct power source is used. • The power adapter are correctly connected. •... -
Page 11: Document Conventions And Icons
Document conventions and icons Conventions This section describes the conventions used in the documentation. Port numbering in examples The port numbers in this document are for illustration only and might be unavailable on your device. Command conventions Convention Description Bold text represents commands and keywords that you enter literally as shown. Boldface Italic text represents arguments that you replace with actual values. -
Page 12: Network Topology Icons
Network topology icons Convention Description Represents a generic network device, such as a router, switch, or firewall. Represents a routing-capable device, such as a router or Layer 3 switch. Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports Layer 2 forwarding and other Layer 2 features. -
Page 13: Support And Other Resources
Software Depot website: www.hpe.com/support/softwaredepot • To view and update your entitlements, and to link your contracts, Care Packs, and warranties with your profile, go to the Hewlett Packard Enterprise Support Center More Information on Access to Support Materials page: www.hpe.com/support/AccessToSupportMaterials IMPORTANT: Access to some updates might require product entitlement when accessed through the Hewlett Packard Enterprise Support Center. -
Page 14: Websites
Customer self repair Hewlett Packard Enterprise customer self repair (CSR) programs allow you to repair your product. If a CSR part needs to be replaced, it will be shipped directly to you so that you can install it at your convenience. -
Page 15: Documentation Feedback
Documentation feedback Hewlett Packard Enterprise is committed to providing documentation that meets your needs. To help us improve the documentation, send any errors, suggestions, or comments to Documentation Feedback (docsfeedback@hpe.com). When submitting your feedback, include the document title, part number, edition, and publication date located on the front cover of the document. For online help content, include the product name, product version, help edition, and publication date located on the legal notices page. -
Page 16: Appendix A Chassis Views And Technical Specifications
Appendix A Chassis views and technical specifications Chassis views HPE 1405 5G Figure 8 Top panel (1) Copper port LEDs (2) Power LED Figure 9 Rear panel (1) 10/100/1000BASE-T copper ports (2) DC Power receptacle... -
Page 17: Hpe 1405 8G
HPE 1405 8G Figure 10 Top panel (1) Copper port LEDs (2) Power LED Figure 11 Rear panel (1) 10/100/1000BASE-T copper ports (2) DC power receptacle Technical specifications Chassis dimensions and weights Chassis Dimensions (H x W x D) Maximum weight HPE 1405 5G 31.7 x 115 x 91.3 mm (1.25 ×... -
Page 18: Environmental Specifications
Environmental specifications Chassis Operating temperature Relative humidity All chassis 0°C to 40°C (32°F to 104°F) 5% to 95%, noncondensing Power specifications DC input voltage specifications Chassis Voltage All chassis 12V DC Power consumption specifications Chassis Min. power consumption Max. power consumption HPE 1405 5G HPE 1405 8G 4.5 W... -
Page 19: Appendix B Leds
Appendix B LEDs Power LED Table 5 Power LED description Status Description Steady white The switch is powered on and the power supply is operating correctly. Flashing white The switch is faulty if the LED flashes white for five seconds. The switch is not powered on or the power supply is faulty. -
Page 20: Appendix C Troubleshooting
Appendix C Troubleshooting Table 7 describes the troubleshooting methods for common issues that you might encounter while using and managing the switch. If a problem persists, contact Hewlett Packard Enterprise Support. Table 7 Troubleshooting methods Symptom Troubleshooting method Verify that the correct power source is used and the power adapters are correctly connected.
