IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

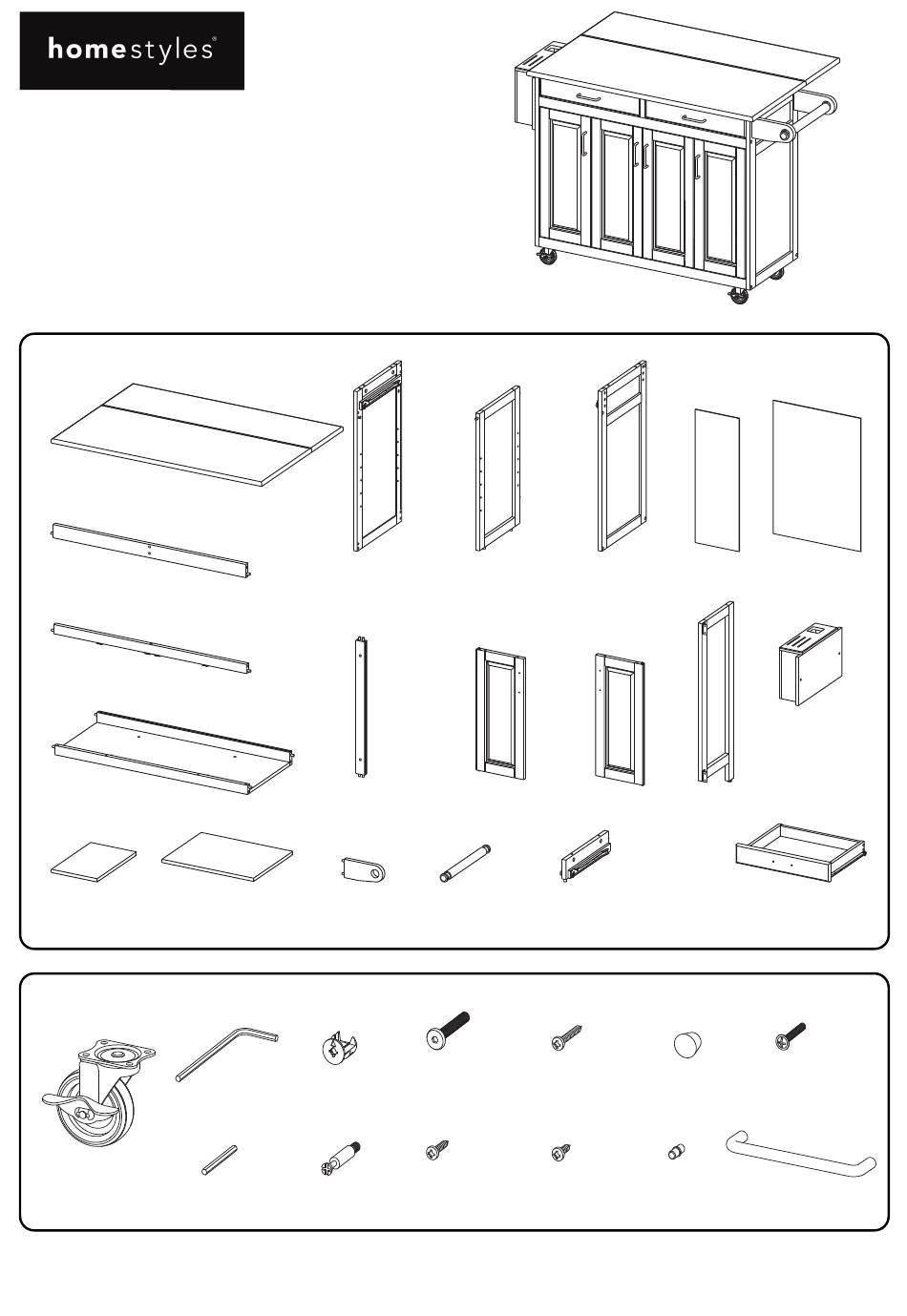

Part List
A.
Top
1 pc.
H.
Back Rail
1 pc.
I.
Front Rail
1 pc.
J.
Base
1
pc
.
P.
Shelf
2 pcs.
Hardware List
Caster
2 Locking
2 Non-Locking
Small Hex Wrench
4 pcs.
1 pc.
Tool(s) required for assembly: Phillips screwdriver
home
5023 95
-
Kitchen Cart
B.
Side Panel
1 pc.
G.
Back Upright
2 pcs.
Q.
S.
Shelf
Arm Handle
1 pc.
2 pcs.
Hex Wrench
Cam Lock
1 pc.
6 pcs. (+2 extra)
Cam Lock Screw
6 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
D.
Middle Panel
Side Panel
2 pcs.
1 pc.
K.
L.
Door
Door
2 pcs.
2 pcs.
T.
M.
Arm
Divider
1 pc.
1 pc.
M6x35
M3.5x25
Wood Screw (long)
Head Cap Bolt
1 pcs. (+1 extra)
3
16 pcs. (+1 extra)
M4x16
M3.5x13
Wood Screw
Wood Screw (short)
16 pcs. (+1 extra)
16 pcs. (+1 extra)
E.
Back Panel
2 pcs.
R.
Gate Leg
1 pc.
N.
Drawer
2 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
Wood Plug
8 pcs. (+2 extra)
Adjustable Pin
12 pcs. (+1 extra)
888-680-7460
F.
Back Panel
1 pc.
U.
Knife Box
1 pc.
M4x25
Machine Screw
12 pcs.
Handle
6 pcs.
Advertisement
Table of Contents
Related Manuals for Homestyles 5023 95
Summary of Contents for Homestyles 5023 95
- Page 1 5023 95 Kitchen Cart IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/7 Head Cap Bolt STEP 3 Attach Divider (M) to unit with Head Cap Bolt. Attach Side Panel (D) to unit with Head Cap Bolts. Wood Screw STEP 4 Non-Locking Caster Locking Caster Turn unit upside down. Attach Casters to unit with Wood Screws into pre-drilled holes, with Locking Casters at front.
- Page 4 Assembly Instructions 4/7 STEP 5 Head Cap Bolt Turn unit over to its upright position. Attach Arm Handles (S) to unit with Head Cap Bolts. Slide Arm (T) into position. Attach Knife Box (U) to unit with Head Cap Bolts. Attach Gate Leg (R) to unit with Wood Screws (short) into pre-drilled holes.
- Page 5 Assembly Instructions 5/7 STEP 7 Cam Lock Screw Place Top (A) upside down on a soft cloth. Insert Cam Lock Screws into pre-drilled holes in Top (A), then tighten. (See Figure ) 4 Figure 4 Figure 5 Figure 6 STEP 8 Cam Lock Attach Doors (K) and (L) to unit by inserting lower...
- Page 6 Assembly Instructions 6/7 Drawer (N) Wood Screw (long) Bottom STEP 9 Attach Drawer Front (N1) and Drawer Back (N2) to Drawer Side (N3) with Wood Screws (long). Attach Drawer Side (N4) to unit with Wood Screws (long). Roller at back Wood Screw (short) STEP 10 Slide Drawer Bottom (N5) into groove.
- Page 7 Assembly Instructions 7/7 STEP 12 Slide Drawers (N) into position. Wood Plug STEP 13 Cover all holes with Wood Plugs. (See Figure ) 8 Figure 8...
- Page 8 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
