IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

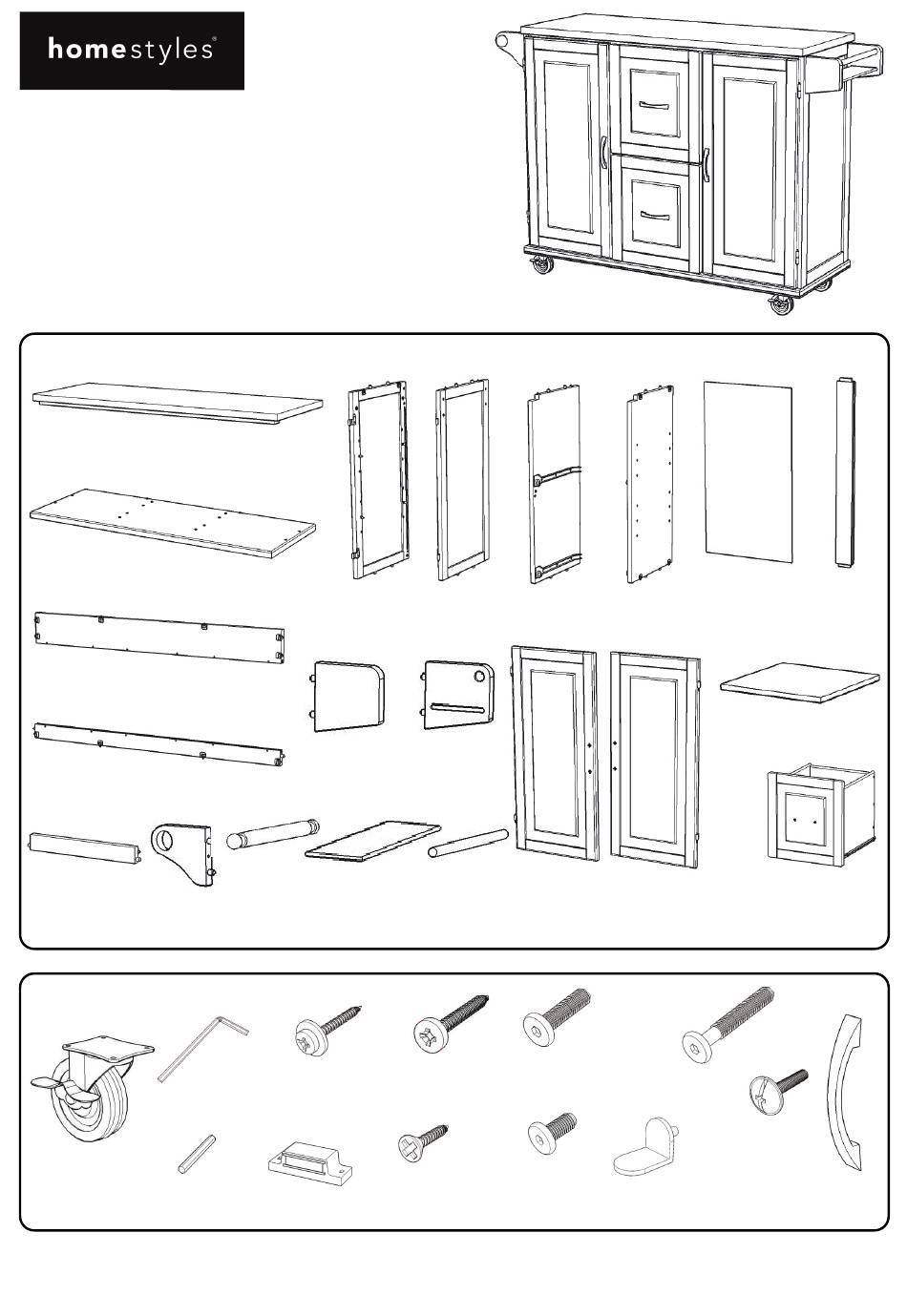

Part List
A.
Top
1 pc.
U.
Base
1 pc.
H.
Back Stretcher
1 pc.
I.
Back Stretcher
1 pc.
J.
K.
Front Stretcher
Arm
1 pc.
2 pcs.
Hardware List
Hex Wrench
1 pc.
Caster
2 lock
2 non-lock
Small Wrench
4 pcs.
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 4515 95

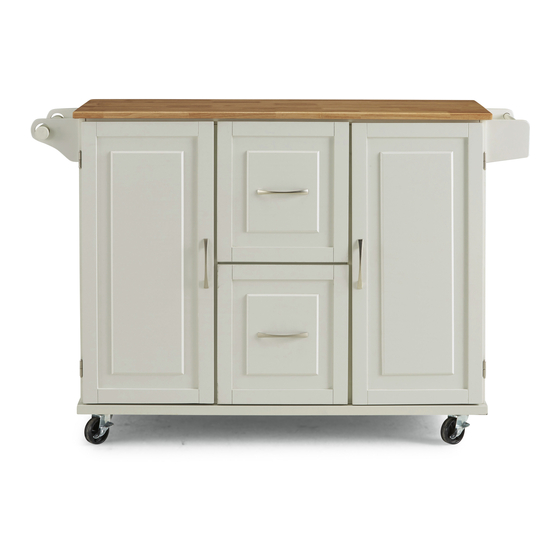

Kitchen Cart
B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
M.
N.
Side Rack
Side Rack
1 pc.
1 pc.
L.
O.
Tower Bar
Base Rack
1 pc.
1 pc.
M3x16
M3.5x25
Wood Screw (short)
Wood Screw (long)
for Drawer Base Part
for Drawer Side Part
and Back Panel
24 pcs. (+1 extra)
20 pcs. (+1 extra)
M3x16
Wood Screw
Magnet
for Magnet
2 pcs.
4 pcs. (+1 extra)
D.
E.
Middle Panel
Middle Panel
1 pc.
1 pc.
R.
P.
Door
Rack
1 pc.
1 pc.
M6x25
Head Cap Bolt (short)
4 pcs. (+1 extra)
M6x12
Head Cap Bolt
Adjustable Pin
for Caster
16 pcs. (+1 extra)
16 pcs. (+1 extra)
888-680-7460, 877-831-0319
G.
F.
Back Upright
Back Panel
2 pcs.
3 pcs.
Q.
Shelf
4 pcs.
T.
Drawer
S.
2 pcs.
Door
Refer to the last page(s) of these
1 pc.
instructions for drawer assembly.
M6x38
Head Cap Bolt (long)
4 pcs. (+1 extra)
M4x25
Machine Screw
8 pcs.
Pull Handle
4 pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 88 4515 95
Summary of Contents for Homestyles 88 4515 95
- Page 1 Adjustable Pin for Caster for Magnet 4 pcs. 1 pc. 4 pcs. 2 pcs. 16 pcs. (+1 extra) 16 pcs. (+1 extra) 4 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench in a safe place as the bolts may need to be tightened up in the future.
- Page 3 Assembly Instructions 3/6 Head Cap Bolt Head Cap Bolt Figure 3 Figure 4 STEP 3 Attach Arms (K) to Side Panel (B) with Head Cap Bolts (short). (See Figure 3) Assemble Side Racks (M), (N), Base Rack (O) and Rack (P), then attach to Side Panel (C) with Head Cap Bolts.
- Page 4 Assembly Instructions 4/6 Head Cap Bolt (long) STEP 5 Attach unit from Step 2 to unit from Step 4 with Head Cap Bolts (long), then flip the locks. Wood Screw (short) STEP 6 Turn the unit over to its’ upright position. Insert Wood Screws (short) into pre-drilled holes of Back Stretchers (H) and (I) and tighten.
- Page 5 Assembly Instructions 5/6 Adjustable Pin STEP 7 Attach Pull Handles to Doors (R) and (S) with Machine Screws. (See Figure 7) Attach Doors (R) and (S) by sliding the door life hinges to side panel lift hinges. (See Figure 8) Attach Top (A) to unit, then flip the locks.
- Page 6 Assembly Instructions 6/6 Drawer (T) STEP 1 Attach Drawer Front (T1) and Drawer Back (T2) to Drawer Side (T3) with Wood Screws (long). Attach Drawer Side (T4) to unit with Wood Screws (long). Roller at back STEP 2 Slide Drawer Bottom (T5) into the grooves of Drawer Sides (T3) and (T4) until it meets Drawer Front (T1).
- Page 7 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
